Interior Lighting

Interior Lighting: Component Location:

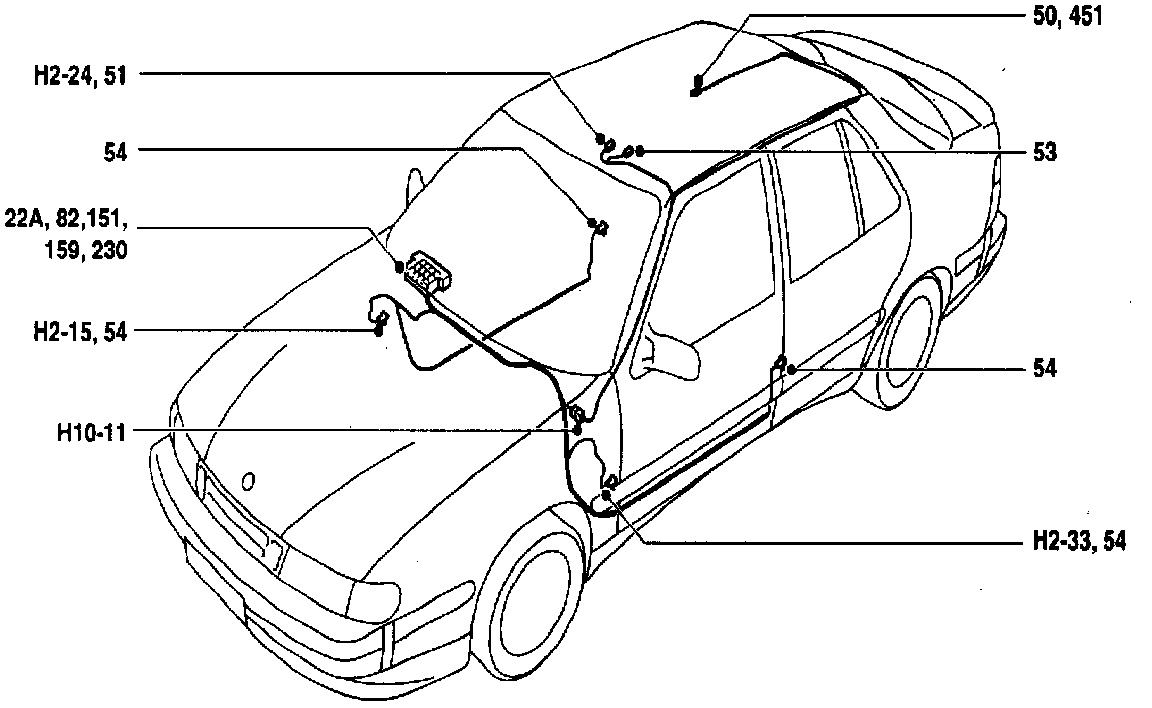

COMPONENT LOCATION VIEW

Interior Lighting: Component ID:

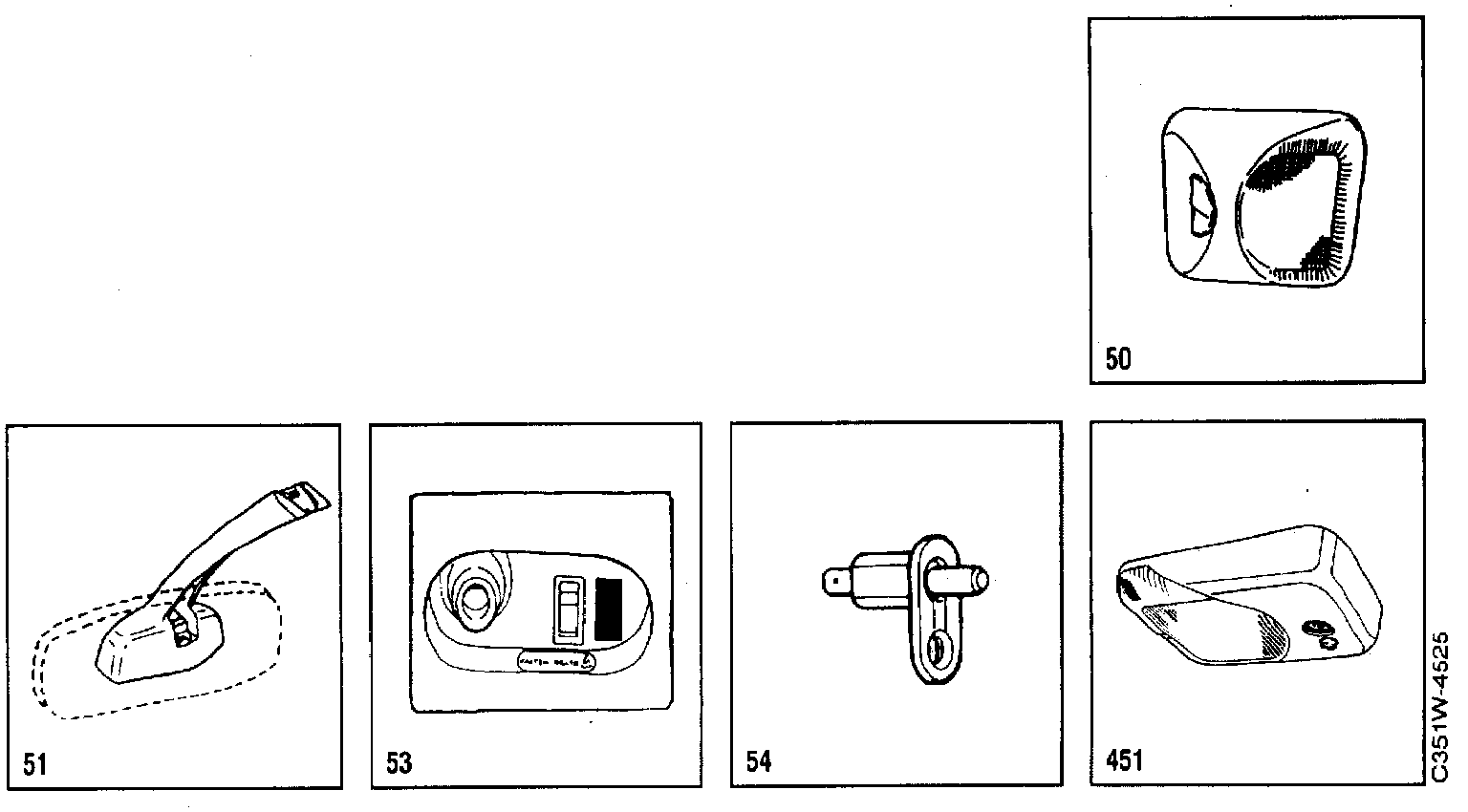

COMPONENT ID
22A Fuse board behind the cover flap in the glove box.
50 Roof lamp, rear.
51 Roof lamp, front.
53 Switch, interior lighting, in centre console by the gear lever.
54 Door switch in each door pillar.
82 Relay, seat-belt/key reminder, in main fuse box behind the glove box.
151 Time-delay relay, delayed interior lighting, in main fuse box behind the glove box.
159 Distribution terminal (+15 circuit), in main fuse box behind the glove box.
230 Distribution terminal (+30 circuit), in main fuse box behind the glove box.
451 Glass breakage sensor, in front roof lamp.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-24 Under the roof console beside the interior rear-view mirror.
H2-33 In the left-hand A pillar.

10-Pin Connector
H10-11 On the far left under the dashboard, behind the knee shield.

Grounding Points
G6 Grounding point, negative distribution terminal, in main fuse box 22B behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
