Courtesy Light

Courtesy Lights: Component Location:

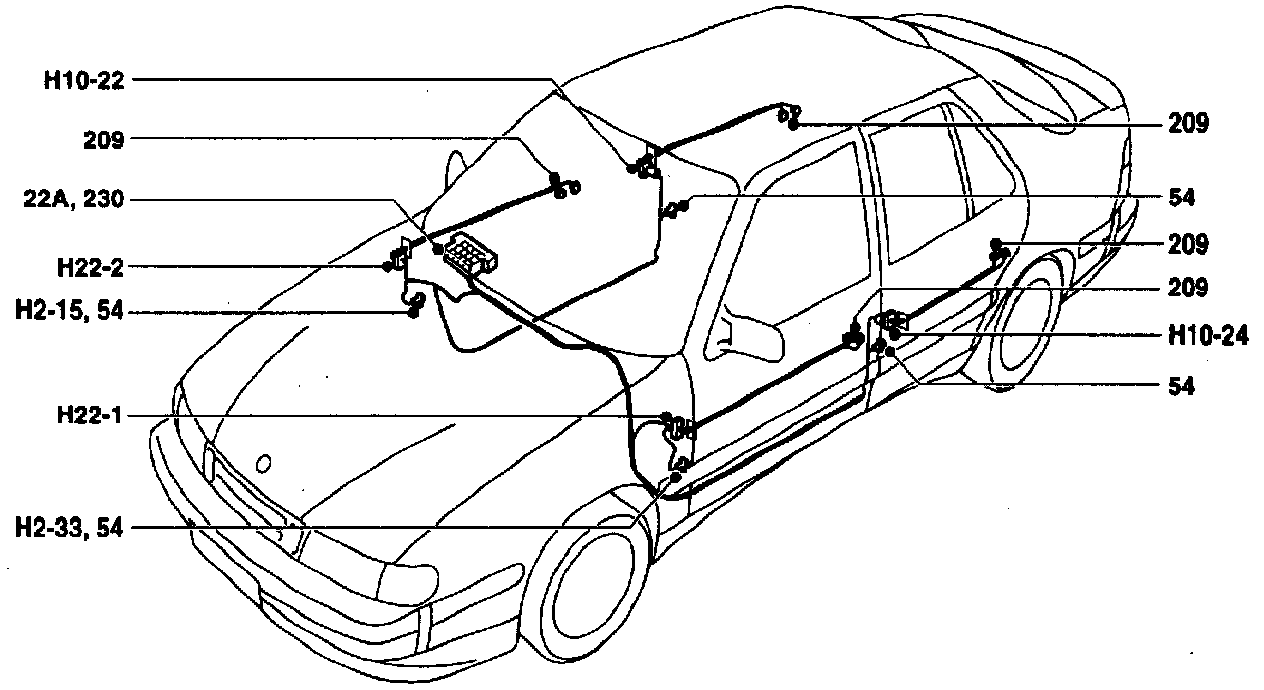

COMPONENT LOCATION VIEW

Courtesy Lights: Component ID:

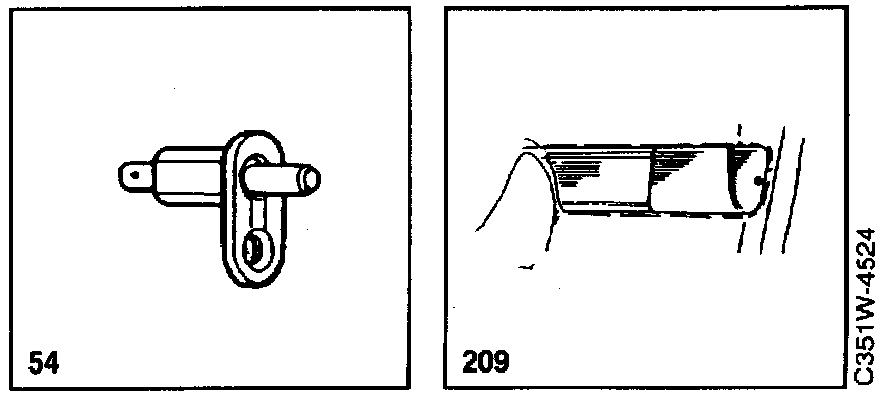

COMPONENT ID
22A Fuse board behind the cover flap in the glove box
54 Door switch in each door pillar.
209 Courtesy light in each door.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-33 In the left-hand A pillar.

10-Pin Connectors
H10-22 In right-hand B pillar.
H10-24 In left-hand B pillar.

22-Pin Connectors
H22-1 Behind the cable entry in the left- hand A pillar.
H22-2 Behind the cable entry in the righthand A pillar.
