Brake Lights Without/with Reset Memory:

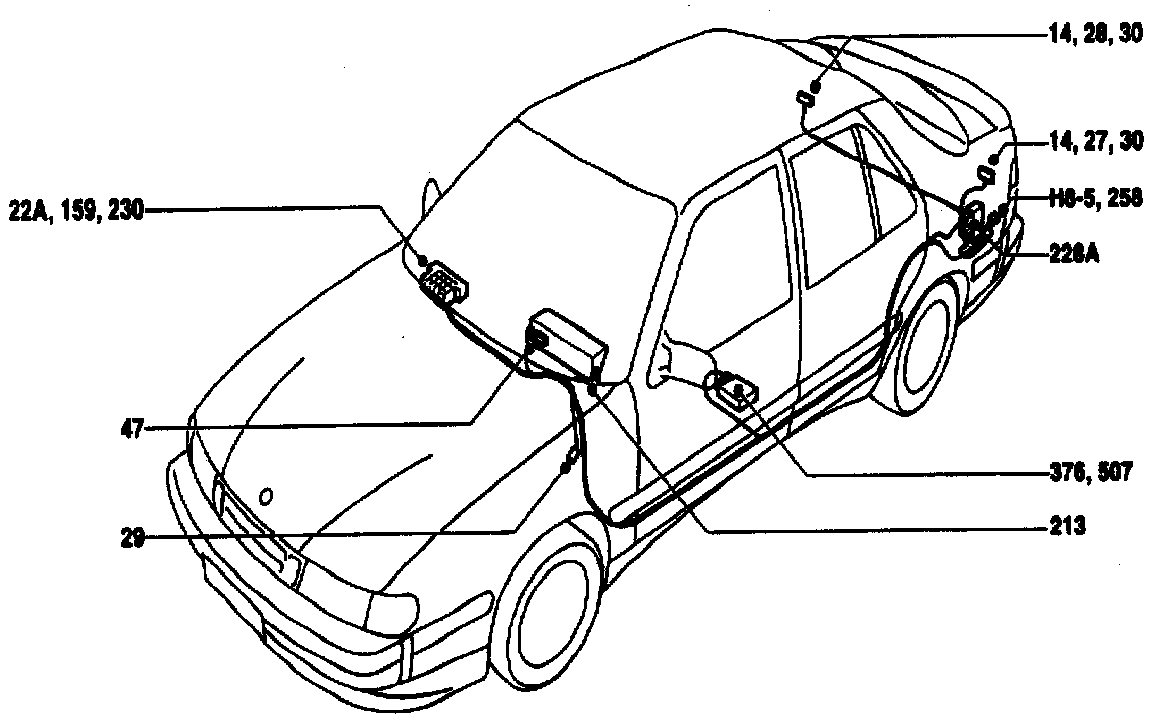

COMPONENT LOCATION VIEW

Brake Lights Without/With Reset Memory: Component ID:

COMPONENT ID
14 Rear lights in the rear light clusters.
22A Fuse board behind the cover flap in the glove box.
27 Direction indicator lamps, left-hand side, in front and rear light clusters.
28 Direction indicator lamps, right-hand side, in front and rear light clusters.
29 Brake light switch beside the brake pedal.
30 Brake lights in rear light clusters.
32 Rear lights
CD: in rear light clusters.
CS: in tailgate light fitting.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
213 Pictogram in the main instrument display panel.
228A Filament monitor, rear lamps, in luggage compartment on the left-hand side.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
258 Connection for trailer lighting, in luggage compartment below the
(H8-5) left-hand light cluster.

Grounding Points
G3 Grounding point, luggage compartment, on the left-hand side by the left-hand rear light cluster.
G5 Grounding point, rear seat, on lefthand side.
G29 Grounding point, luggage compartment, on the right-hand side by the right-hand rear light cluster.
