Fresh Air Filter, Without A/C

Removal:

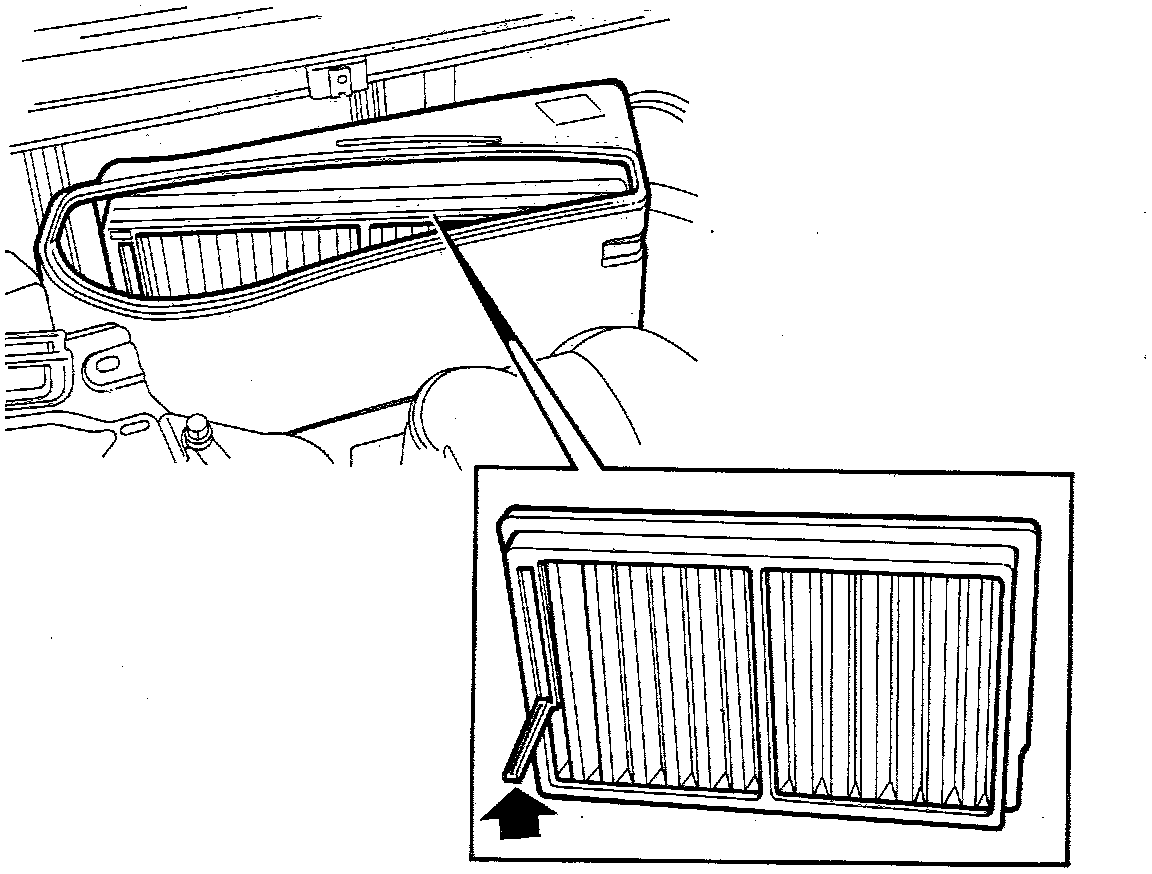

1. Remove the cover from over the evaporator casing. Remove the lid from over the filter.
2. Lift up the arm on the filter and pull out filter.

Installation:
Fit the new filter with the recess in the frame down/back.
