With Mark IV ABS System

Anti-lock Brakes (Mark IV): Component Location:

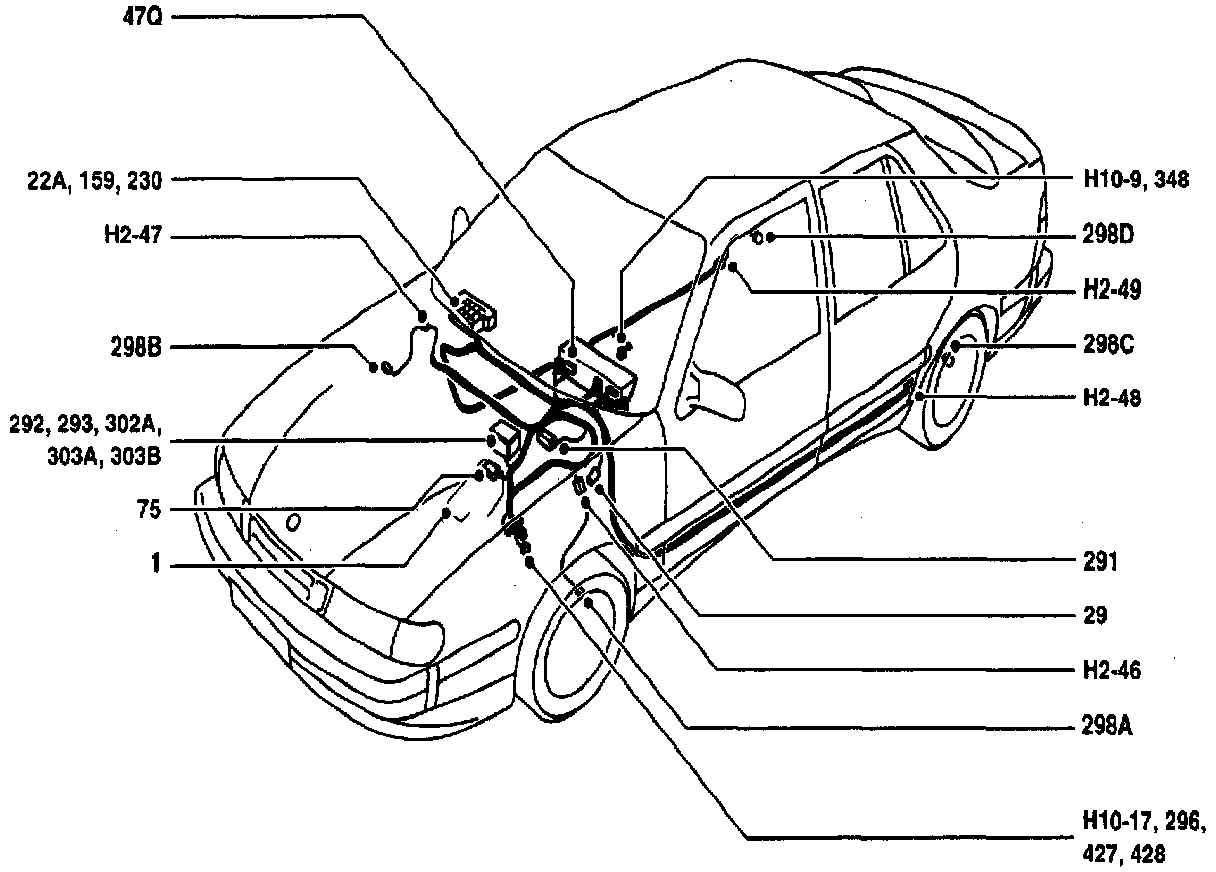

COMPONENT LOCATION VIEW

Anti-lock Brakes (Mark IV): Component ID:

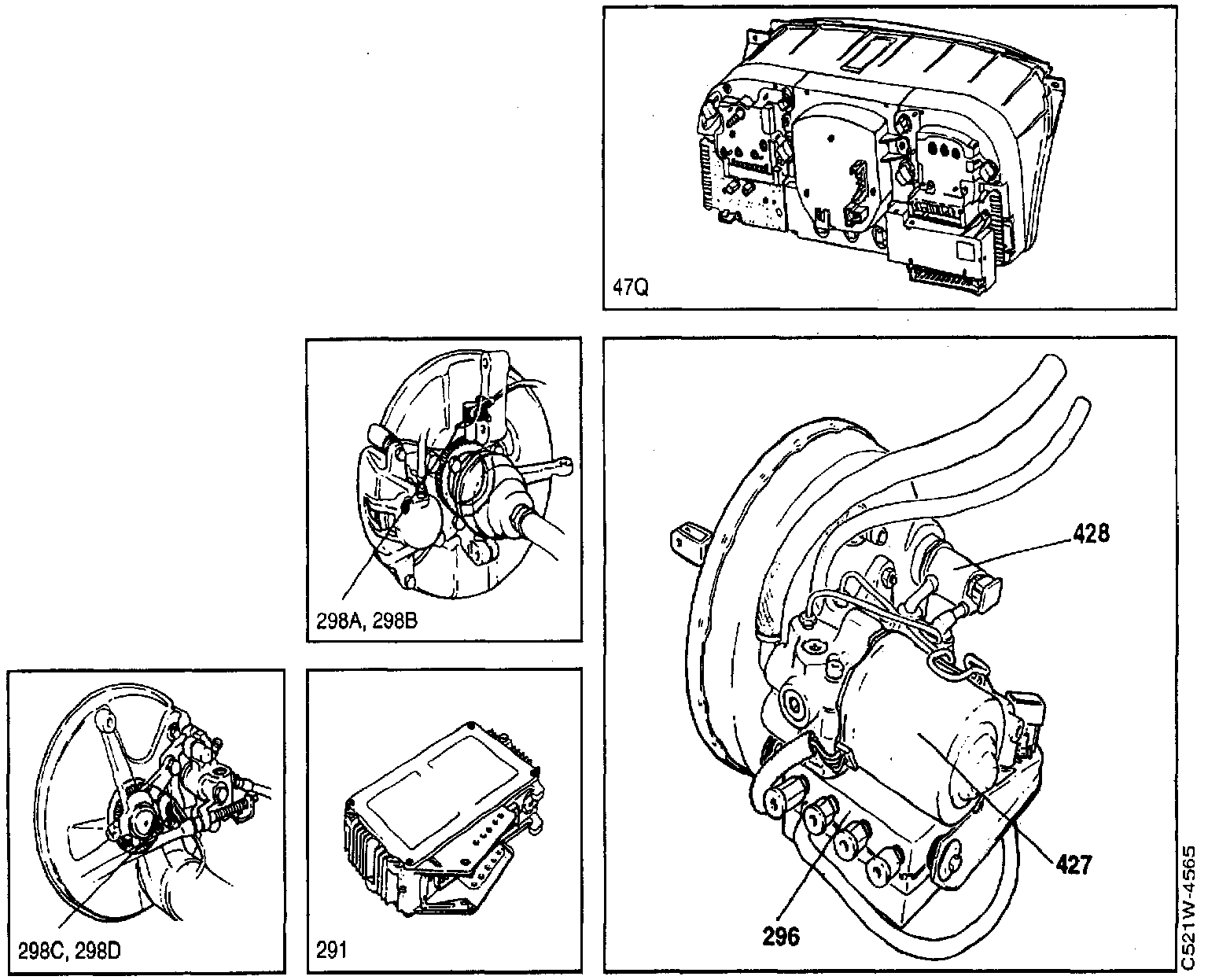

COMPONENT ID
1 Battery in the engine bay.
22A Fuse board behind the cover flap in the glove box.
29 Brake light switch beside the brake pedal.
47Q ABS/ ABS-TCS warning lamp. in the main instrument display panel
75 Distribution block, battery positive, on the battery tray.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
291 ABS control module on the battery tray.
292 Main relay, ABS, in main fuse box behind the battery.
293 Pump relay, ABS, in main fuse box behind the battery.
296 ABS valve block on the hydraulic unit.
298A Wheel sensor, front left-hand, on the left-hand steering swivel member.
298B Wheel sensor, front right-hand, on the right-hand steering swivel member.
298C Wheel sensor, rear left-hand, on the left-hand rear wheel hub.
298D Wheel sensor, rear right-hand, on the right-hand rear wheel hub.
302A Fuse board, ABS, in main fuse box behind the battery.
303A/ Diode, ABS, under the relay board in the ABS main fuse box
303B (302B).
348 Scan tool diagnostics data link connector under the right-hand seat.
(H10-9)
427 Motor, hydraulic pump (ABS/ABS-ASR MARK IV) on the hydraulic unit.
428 Pedal position sensor (ABS/ABS-ASR MARK IV) on the brake vacuum servo.

2-Pin Connectors
H2-46 In the engine bay behind the bulkhead on the far left.
H2-47 In the engine bay behind the bulkhead on the far right.
H2-48 Under the rear seat on the left- hand side under the carpet.
H2-49 Under the rear seat on the right- hand side under the carpet.

10-Pin Connector
H10-17 On the valve block.

Grounding Points
G15 Grounding point, ABS, on the left-hand structural member, beside the ABS control module.
G15 Grounding point beside the ABS control module.
G16 Grounding point on the left-hand structural member.
G24 Grounding point, on the front righthand seat member.
