Traction Control System For Manual Gearbox: Component Location:

COMPONENT LOCATION

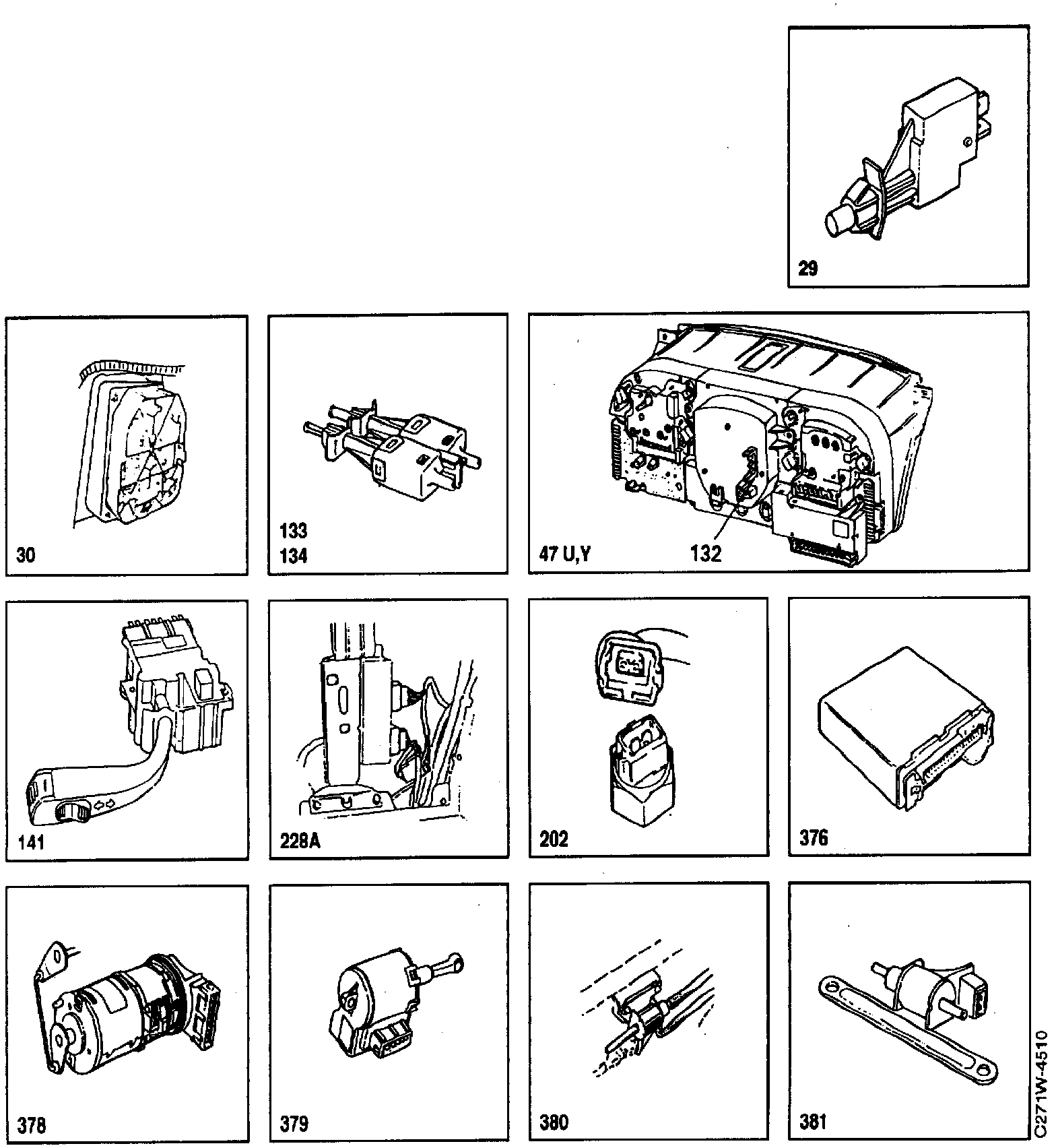

Traction Control System For Manual Gear Box: Component ID:

COMPONENT ID
22A Fuse board behind the cover flap in the glove box.
29 Brake light switch beside the brake pedal.
30 Brake light bulb in rear light cluster.

In The Main Instrument Display Panel
47U Cruise Control system indicator lamp
47Y TCS CTRL warning lamp
132 Speed sensor in the speedometer in the main instrument display panel.
133 Clutch pedal switch, Cruise Control, on the clutch pedal.
134 Brake pedal switch, Cruise Control, on the brake pedal.
141 Cruise Control selector, on the direction indicator stalk switch on the left-hand side of the steering wheel.
156 Relay, A/C radiator fan, in main fuse box in front of the battery.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
171 Antifrost thermostat on the evaporator casing below the windscreen on the right-hand side.
202 Engine temperature sensor on the intake manifold flange between cylinders 1 and 2.
228A Filament monitor, rear bulbs, in luggage compartment on the left-hand side.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
348 Scan tool diagnostics data link connector under the right-hand seat.
(H10-9)
376 ETS control module under the left-hand front seat.
377 Main relay in main fuse box behind the glove box.
378 Throttle actuator motor, ETS, mounted on intake manifold.
379 ETS accelerator pedal position sensor beside the accelerator.
380 ETS dump valve in engine bay on the right-hand side of the bulkhead partition.
381 ETS bypass valve, in engine bay on left-hand wheel housing adjacent to the battery.
382 TC-ABS control module on battery tray.
430 Saab Trionic control module in engine bay behind the bulkhead partition on the left-hand side.

3-Pin Connectors
H3-20 Behind the main instrument display panel adjacent to the speedometer (ME).
H3-26 (RHD) above the pedal bracket adjacent to the pedal switches.

24-Pin Connector
H24-2 In the engine bay on the bulkhead partition.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G3 Grounding point, luggage compartment, beside the left-hand rear light cluster.
G7 Grounding point, engine, at the rear of the engine on a sheet metal bracket below the intake manifold.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G24 Grounding point, seat member, right-hand front seat member.
G29 Grounding point, luggage compartment, beside the right-hand rear light cluster.
