Traction Control System V6

Traction Control System V6: Component Location:

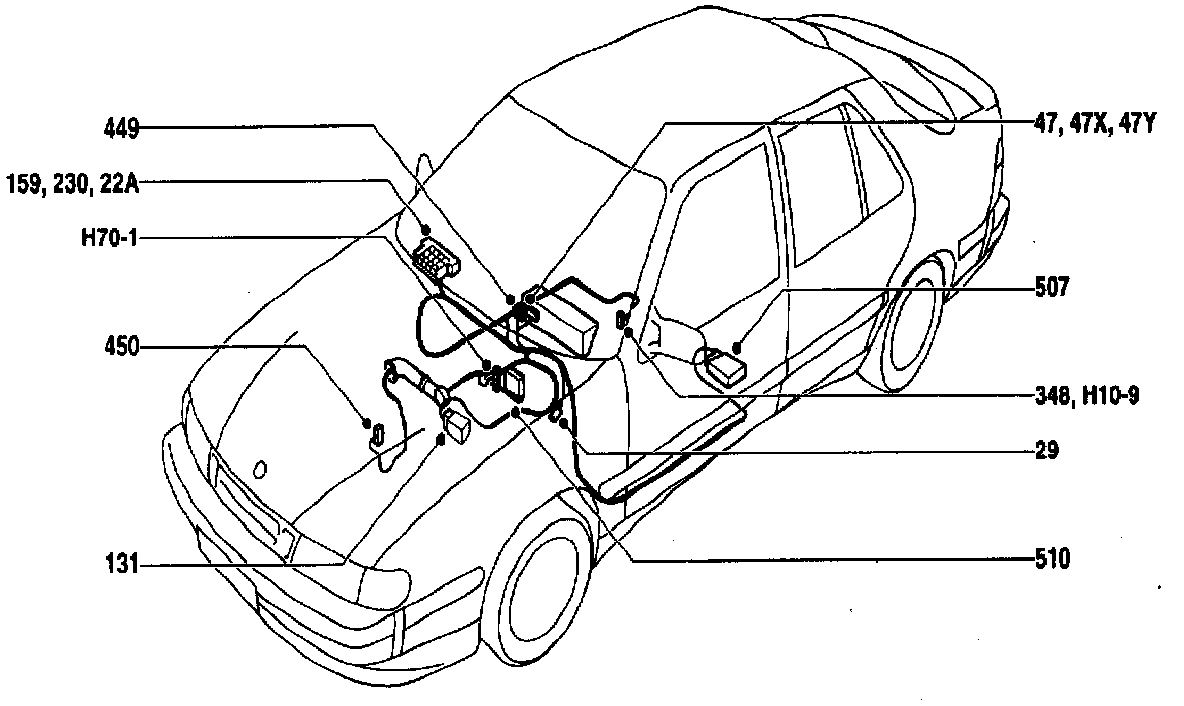

COMPONENT LOCATION VIEW

Traction Control System V6: Component ID:

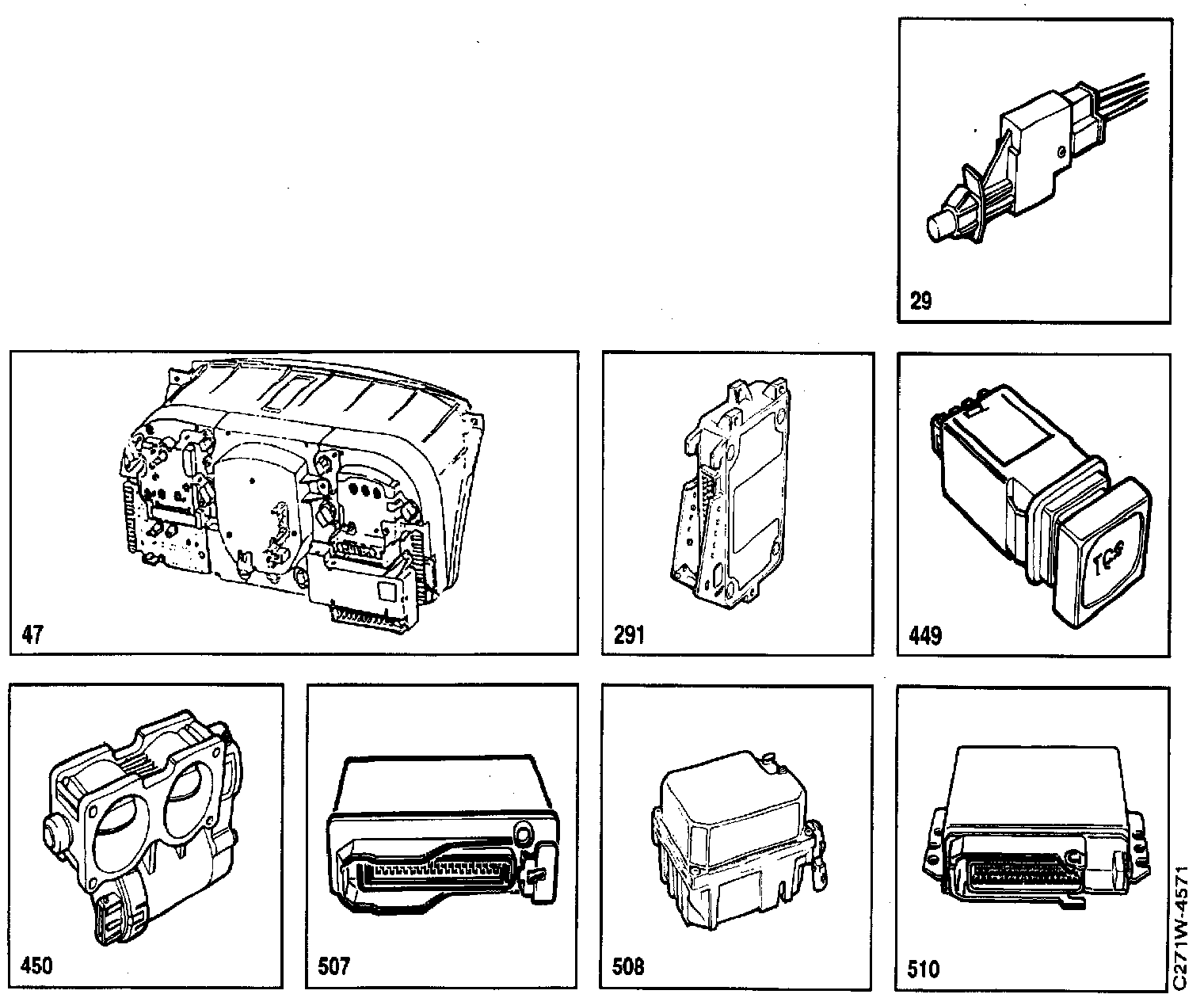

COMPONENT ID
22A Fuse board behind the cover flap in the glove box.
29 Brake light switch beside the brake pedal.

In The Main Instrument Display Panel
47Y TCS OFF indicator lamp.
47X TCS indicator lamp
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box cover flap.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box cover flap.'
291 ABS control module on the battery tray.
348 Scan tool diagnostics data link connector under the right-hand seat.
(H10-9)
449 TCS ON/OFF switch in the dashboard.
450 TTS actuator motor on the throttle body.
507 TCS control module, V6, under left-hand seat.
508 Cruise Control system control module, adjacent to the battery tray.
510 Motronic 2.8.1 control module, in engine bay behind the bulkhead partition.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G5 Grounding point, under the rear seat on the left-hand side.
G8 Grounding point, on the stiffening member under the left-hand loudspeaker grille.
G24 Grounding point, on the right-hand front seat member.
