Modification Parts & Repair Instructions Information

MODIFICATION PARTS

Parts Involved

Ball Chain Cover 91-24-082

Initial Parts Supplies

On May 23, 1988 each Saab dealer will automatically be shipped an initial quantity of ball chain covers corresponding to 33% of the cars recorded on your dealer's status list. A status list is attached to this Service Information if your dealership has taken delivery of any of the affected cars.

Your dealership will be debited for the initial supplies at dealer net. Contact your servicing parts depot if you do not receive your initial supplies by May 31, 1988. Re-order after the start of the campaign as activity dictates.

Subsequent Orders

Phone or mail orders for additional supplies to the Parts Sales Office of your servicing parts depot. Identify all such orders as follows:

Order type - "VOR" Special instructions - "Recall 271"

For fastest handling, order VOR. Do not order recall parts on a stock order.
REPAIR INSTRUCTIONS

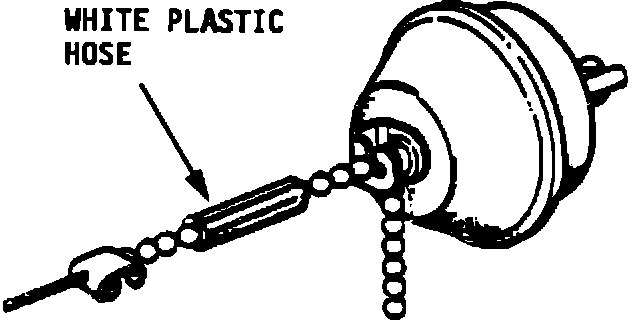

FIGURE 1:

NOTE

Always inspect the Campaign Modification Plate before beginning any recall work. As with all campaigns the plate may be marked from an earlier repair. Check the square A4. If it is stamped, no further recall work is necessary.


1. Remove the lower dash panel and the center console carpet on the driver's side.

2. Inspect the ball chain connecting the throttle pedal to the vacuum regulator for the cruise control (Figure 1). If a white piece of hose has been fitted to the chain, remove the hose and proceed to step 3.
If a white plastic hose has been installed, the hose should be removed and discarded.

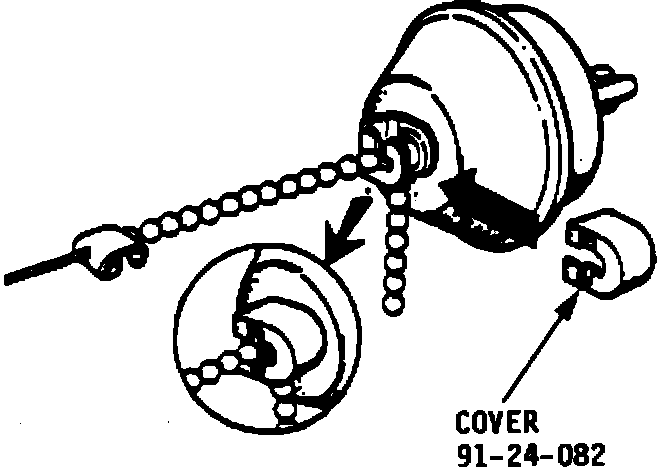

FIGURE 2:

3. Check and, if necessary, adjust the ball chain tension as tight as possible without moving the throttle wire.

4. Install one ball chain cover (P/N 91-24-082) over the clip for the vacuum regulator (Figure 2).

5. Refit the lower dash panel and the center console carpet.
Install the cover 91-24-082 over the clip for the ball chain.

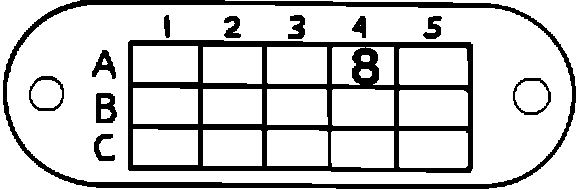

FIGURE 3 - CAMPAIGN MODIFICATION PLATE.:

6. Stamp number "8" into position A4 of the modification plate with a 3/8" punch as shown in Figure 3.

The punch is available from Saab under P/N 02-97-713.
