Modification Parts & Repair Instructions Information

MODIFICATION PARTS
Parts Involved

Ball Chain Cover 91-24-082
Pedal Arm Cover 40-61-362


Initial Parts Supplies

On May 23, 1988 each Saab dealer was automatically shipped an initial quantity of ball chain covers corresponding to 33% of the cars recorded on your dealer's status list. A status listing of cars was attached to the Recall Service Information 05/88-1053. Shipments of pedal arm covers will be shipped approximately June 27, 1988 and will be distributed in the same quantities of the ball chain covers. An updated status listing including additional cars will be mailed to your dealership during July.

Your dealership is debited for all initial supplies at dealer net. Contact your servicing depot if you do not receive your initial supplies by the start of the campaign. Re-order after the start of the campaign as activity dictates.


Subsequent Orders

Phone or mail orders for additional supplies to the Parts Sales Office of your servicing parts depot. Identify all such orders as follows:

Order type - "VOR" Special instructions - "Recall 271"

For fastest handling, order VOR. Do not order recall parts on a stock order.
REPAIR INSTRUCTIONS
NOTE

Always inspect the Campaign Modification Plate before beginning any recall work. As with all campaigns the plate may be marked from an earlier repair. Check the square "A4" and "B4". If it is stamped, no further recall work is necessary.

FIGURE 1:

1. Remove the lower dash panel and the center console carpet on the driver's side.

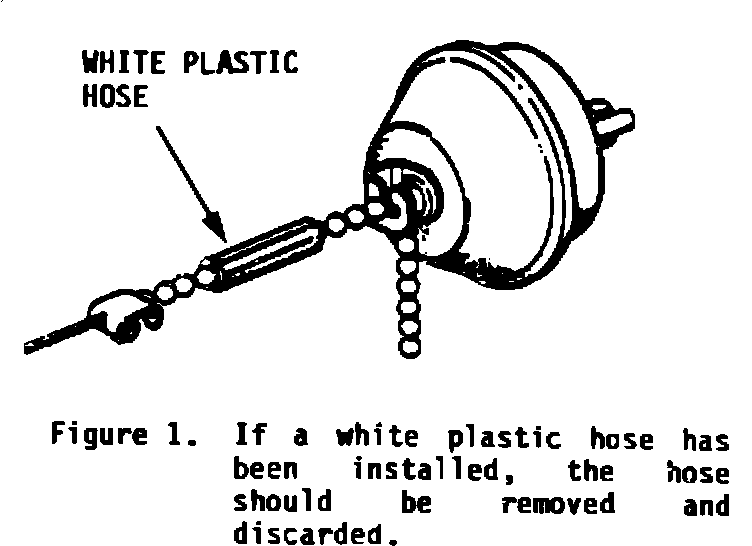

2. Inspect the ball chain connecting the throttle pedal to the vacuum regulator for the cruise control (Figure 1). If a white piece of hose has been fitted to the chain, remove the hose and proceed to step 3.


3. Check and, if necessary, adjust the ball chain tension as tight as possible without moving the throttle wire.

FIGURE 2:

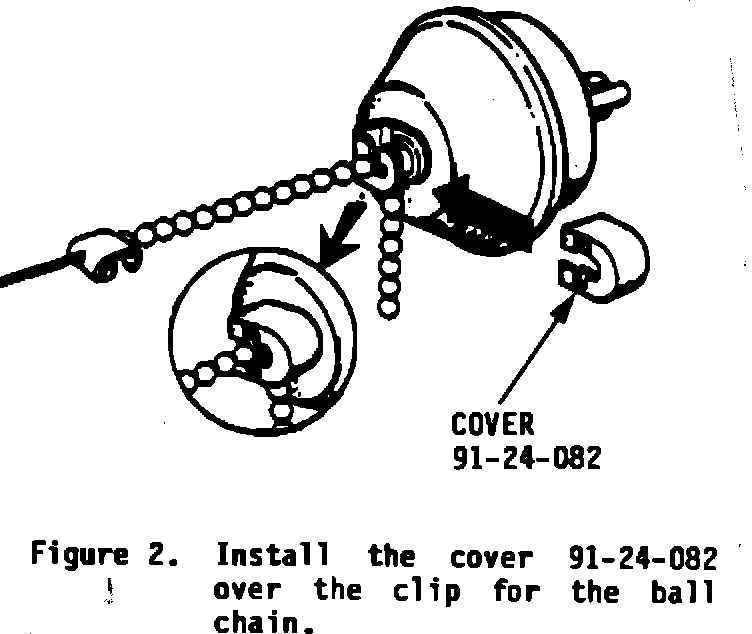

4. Install one ball chain cover (P/N 91-24-082) over the clip for the vacuum regulator (Figure 2).


5. Release the throttle cable from the throttle housing.

FIGURE 3:

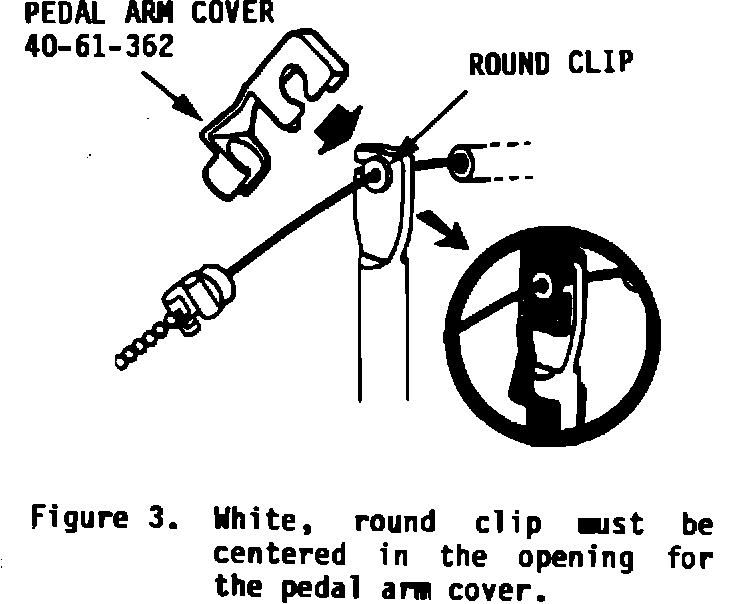

6. Install a pedal arm cover (P/N 40- 61-362) to the throttle pedal arm so that it covers the slot in the arm. Be sure that the white, round clip is centered in the opening for the pedal arm cover (Figure 3).

FIGURE 4 - CAMPAIGN MODIFICATION PLATE:

7. Reconnect the throttle cable.

8. Refit the lower dash panel and the center console carpet.

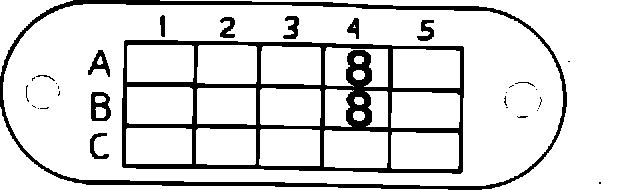

9. Stamp number "8" into position "A4" and "B4" of the modification plate with a 3/8" punch as shown in figure 4.

Extra punches are available under Part Number 02-97-713.
