ABS Pressure Switch - Special Tool

87saab01

FILE IN S.I. Man. VOL. I

SEC. B-1 PG. 37
Service Information


SUBJECT: SOCKET TO REMOVE AND INSTALL PRESSURE ISSUE: 10/87-1003 SWITCH ON ABS HYDRAULIC UNIT


APPLICATION: 9000 MODELS 1988-

SOCKET TO REMOVE ABS PRESSURE SWITCH P/N 89-96-571.:

The special 36 mm socket for removing and replacing the pressure switch located at the ABS hydraulic unit is now available.

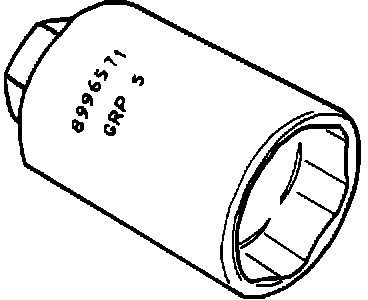

Socket 89-96-571

This special socket is designed to fit over the electrical terminal plug and the body of the switch.

This has been assigned as a required special tool. An automatic shipment of one per dealer will be made at the end of October 1987. Your account will be charged accordingly.

Please store this socket in the Saab tool crate marked for BRAKES & SUSPENSION.
Pricing Information:

89-96-571 $20.85 dlr. net
