Modification Parts & Repair Instructional Information
MODIFICATION PARTSParts Involved
Control Arm Bolts 89 35 678
Nuts 79 71 765
Initial Parts
Beginning September 2, 1988 Saab automatically shipped an initial quantity of control arm bolts and nuts corresponding to 25% of the cars recorded on your dealer's status list. A second shipment of bolts and nuts followed shortly thereafter.
Subsequent Orders
Phone or mail orders for addition supplies to your Parts Sales Office. Identify all such orders as follows:
Order type: "VOR"
Special Instructions: "Recall 272"
For fastest handling, order VOR. Do not order recall parts on a stock order.

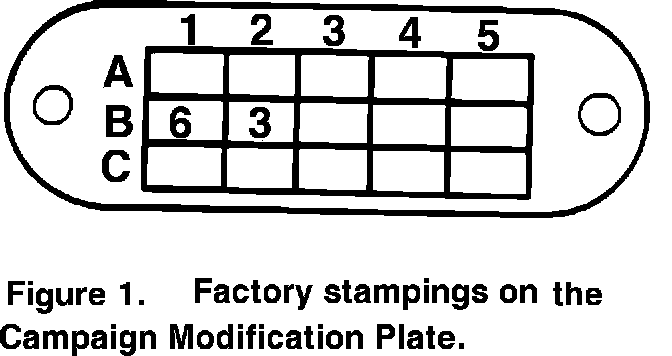

FIGURE 1:
REPAIR INSTRUCTIONS
Always inspect the Campaign Modification Plate before beginning any recall work. As with all campaigns the plate my be marked from an earlier repair. For Recall 272, note the following Campaign Plate information:
^ Cars with VIN's beginning with "J3" (Arlov production that have square "B2" of the Campaign Plate stamped with the figure do not require any further recall work.
^ Cars with VIN's beginning with "J7" (Finland production) that have square "B1" of the Campaign Plate stamped with the figure "6" also do not require any further recall work.
^ Disregard any other campaign Plate markings.
Scope of Repair
^ Cars built in Arlov (VIN "J3") require only that the six bolts attaching the two rear control arm mountings be changed.
^ Cars built in Finland (VIN "J7") require that all 12 control arm mounting bolts be changed.

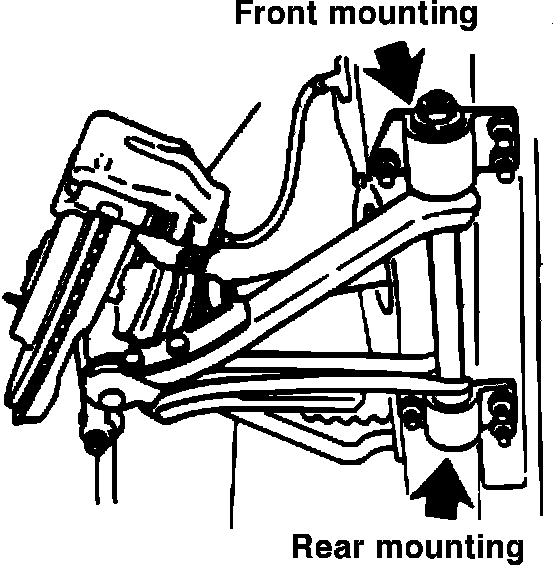

FIGURE 2 - FRONT AND REAR CONTROL ARM MOUNTINGS:
Repair Procedure
NOTE
The bolts must be changed one at a time with the control are in place.
1. Remove and discard the nut.

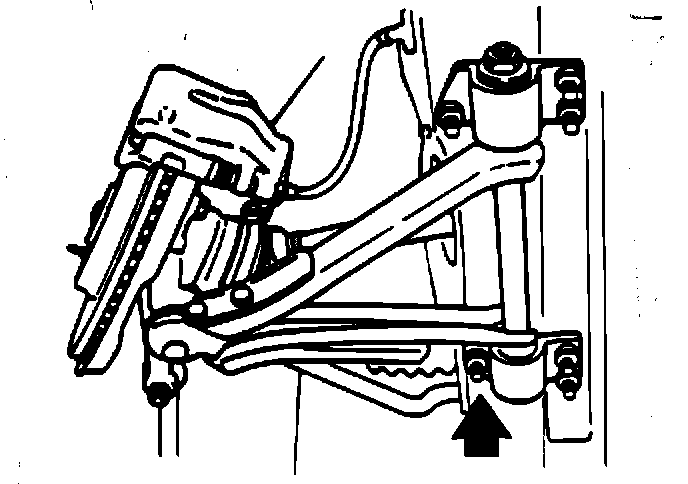

FIGURE 3 - REMOVING THE BOLT FROM THE BRACKET:
2. Drive the bolt upwards to remove it from the bracket (see Figure 3).
3. Insert a new bolt from above and carefully engage the splines on the bolt with those in the bracket.
4. The splines on the new bolt must be drawn fully down into the bracket before the new nut is mounted, otherwise there is significant risk that the bolt will spin inside the bracket.
5. Screw on a used nut, stopping when the threads of the bolt meet the nylon locking insert of the nut. Using a slide hammer fitted with a claw hook (as used in body repairs) pull down on the nut to draw the splined portion of the bolt down into the bracket. Remove the used nut.
NOTE: Make sure that the bolt does not spin in the bracket while torquing the new nut.
6. Tighten a new nut to 52-70 ft.lbs (70-95 N-m).
FIGURE 4 - OUTER REAR BOLT.:
Procedure for Outer Rear Bolt
When removing the outer rear bolt (see Figure 4) use the following additional procedure:
1. To prevent damage to the steering rack boot, turn the tire approximately 15~ to the left and push the boot towards the rack.

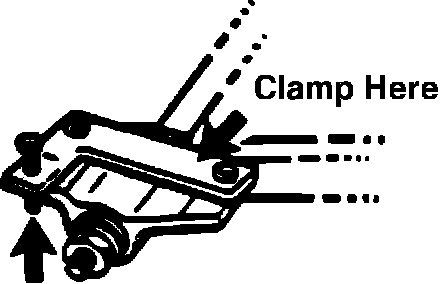

2. Clamp the bracket to the floor pan with slip joint pliers ("Channel Locks") to prevent the bracket from being distorted.

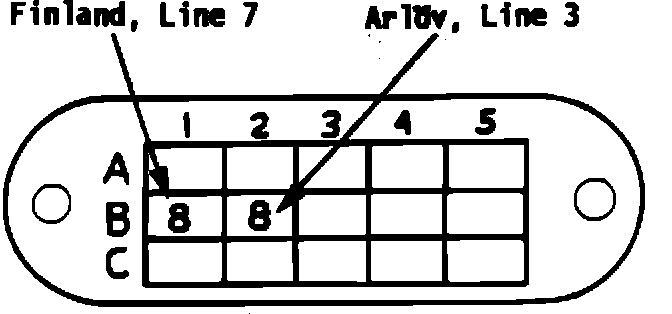

FIGURE 5 - STAMPING THE CAMPAIGN MODIFICATION PLATE.:
Campaign Modification Plate
Upon completion of repair work, the Campaign Modification Plate must be stamped (see Figure 5).
^ For line 3 cars (Arlov) stamp the Figure "8" in box "B2".
^ For line 7 cars (Finland) stamp the Figure "8" in box "B1."
