Engine Mount Bracket - Revised Design

88saab11

FILE IN S.I. MAN. VOL. I

SEC. A-2 PG. 212
SUBJECT: IMPROVED ENGINE MOUNT BRACKET

APPLICATION: 900 MODELS WITHOUT HYDRAULIC MOUNTS
ISSUE: 11/88-1090

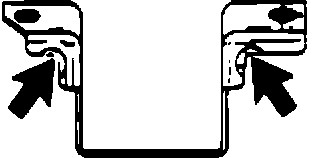

FIGURE 1 - THICKER CORNER FLANGES ON ENGINE MOUNT BRACKET, P/N 75 49 579.:

An improved front engine mount bracket has been introduced which is more resistant to cracking. The new design has thicker corner flanges.

Engine Mount Bracket P/N 75 49 579

The new bracket was introduced into mid-1988 car production, and should be used on earlier cars whenever the original bracket requires replacement as a result of cracking.
