Windshield Washer Reservoir: Service and Repair

To Remove
1 Disconnect the negative battery cable.

Important :
Do not disconnect the battery cable while the engine is running as this could seriously damage the generator (alternator).

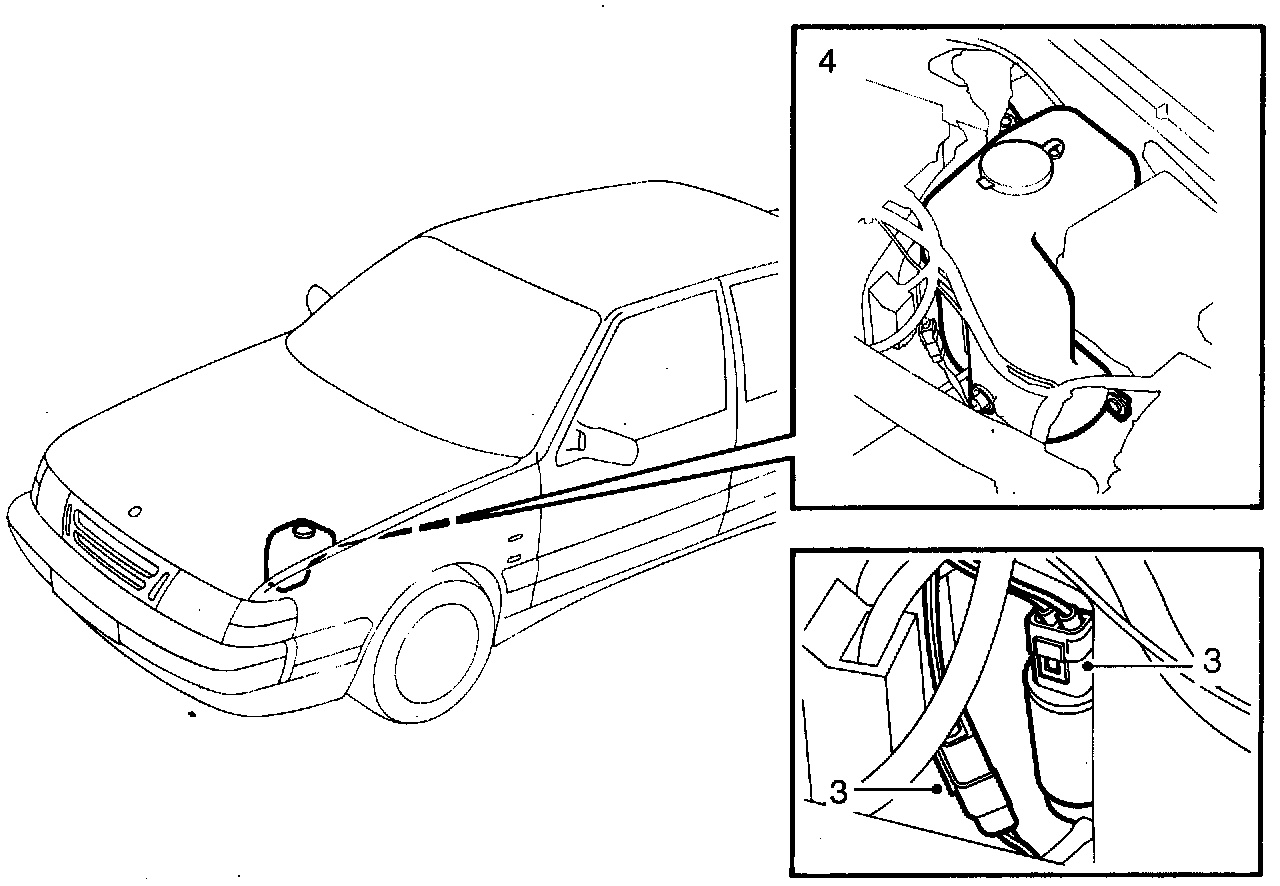

2 Disconnect the hose from the washer pump.
3 Unplug the connectors from the washer pump and fluid level switch.
4 Remove the two washer fluid reservoir retaining bolts.
Lift out the reservoir.

To Install
Install in reverse order.
