Glued-In Windshields - Special Removal Tool

90saab06 CATEGORY Tools
SECTION PAGE
1 1
ISSUE CODE
08/90-0019 101
Subject: New Special Tool for Removing

Glued-In Glass

Application: All 9000 Models



A new special tool has been developed for removing the glued-in windshields on 9000 models. The tool consists of a suction cup/crank assembly used together with a special Kevlar wire. The procedures for using this tool are presented in the 9000 Service Manual Sec. 0, 1990 News.


NOTE
This tool has NOT been designated as a required special tool. It is available for ordering from your servicing Saab Parts Distribution Center.

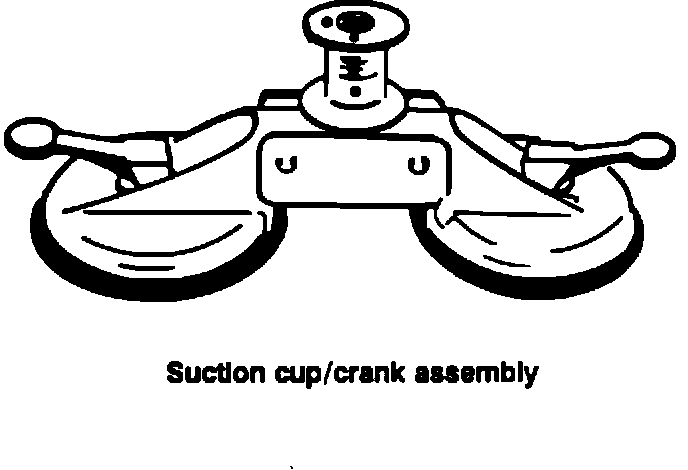

Suction Cup/Crank Assy P/N 82 92 823
Price: $367.50 (dlr. net)


Cutting Wire P/N 82 92 831
Price: $31.80 (dlr. net)

Please store these tools in the Saab tool crate marked "Miscellaneous Saab Special Tools."
