Home >> Saab >> 1986 >> 9000 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Late Models

Late Models

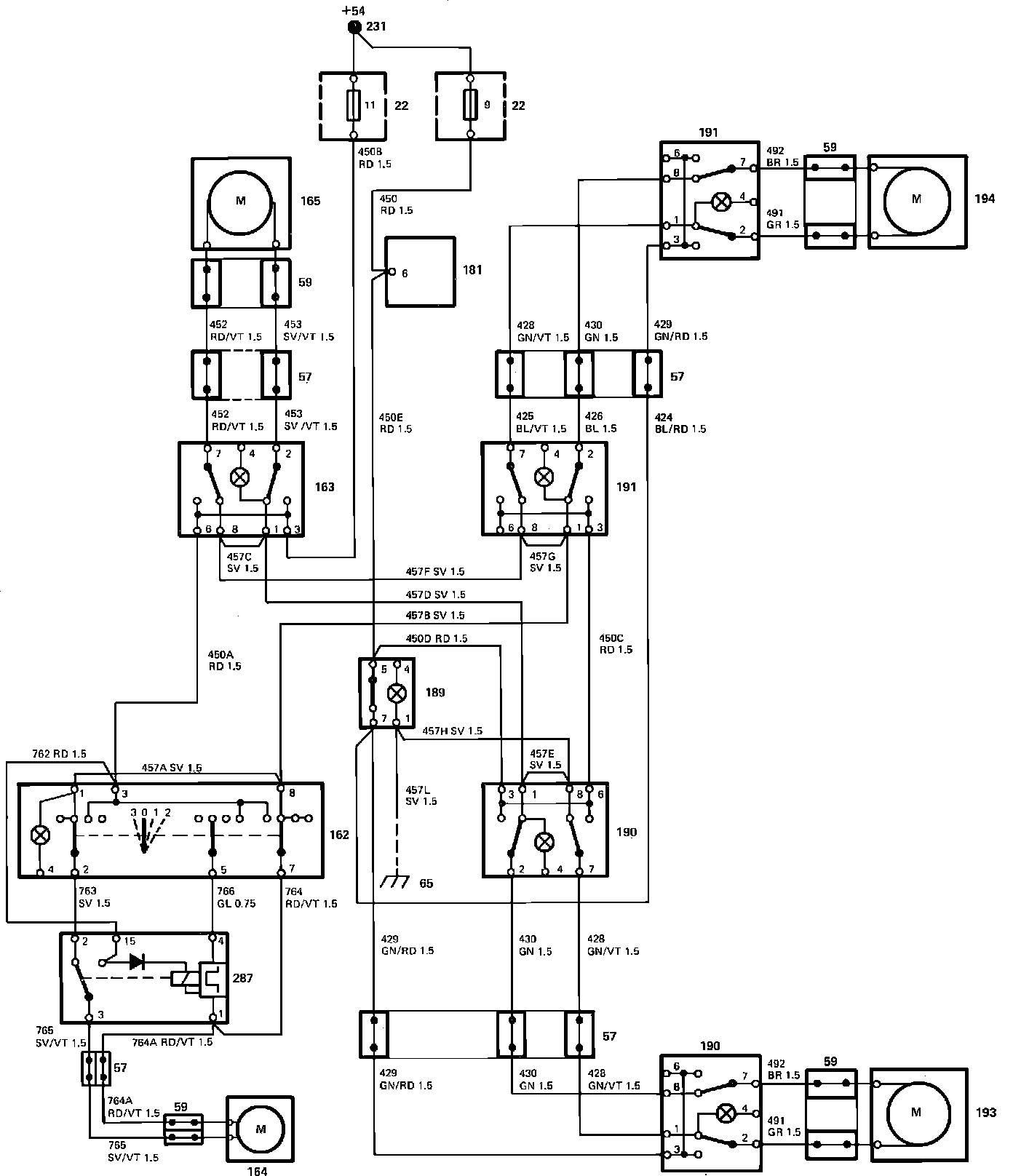

Fig. 20 Electric Window Regulators Wiring Circuit.:
