Trailer Hitch - Advice For Fitting

87saab02

FILE IN S.I. Man VOL. I

SEC. B-9 PG. 5
Service Information

SUBJECT: ADVICE FOR FITTING SAAB ISSUE: 01/87-921 TRAILER HITCH

APPLICATION: ALL 9000 MODELS, HITCH P/N 02-72-054
The installation procedure for the Saab Trailer Hitch (P/N 02-72-054) should be modified somewhat to ensure that consistent torque is being applied to the bumper bolts. This advice may be used when installing new kits or if the present hitch is removed for any reason.



Installation Advice:

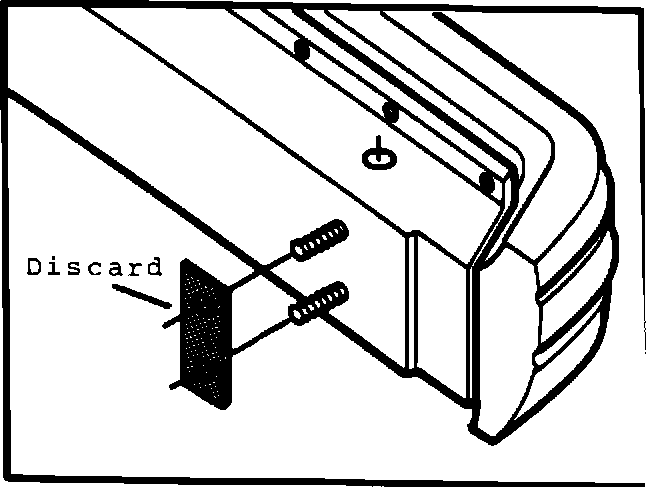

1. The bumper is removed in order to install the hitch. Before re-fitting the bumper, remove the rectangular rubber spacers (shown in the drawing) and discard.

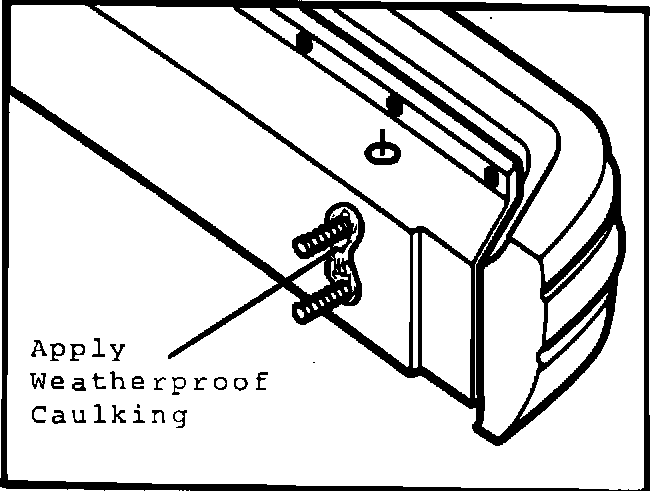

2. Apply weatherproof caulking in place of the rubber spacers. This prevents water and dirt from entering the car body and allows the bumper bolts to be tightened more securely.

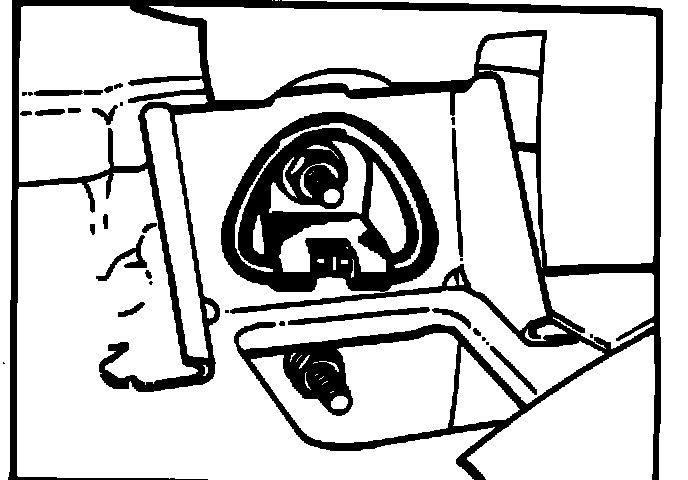

3. Bolt up the bumper. Don't forget to re-install the luggage tie-down rings on the upper bolts.
Tightening Torque.

1986 Models

8 mm Bolt 18 ft.lbs. (25 N-m)

1987 and Later Models

10 mm Bolt 36 ft.lbs. (50 N-m)
