Saab
>>
1986
>>
9000 L4-1985cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Switch & Control Lighting
>>
Late Models
Late Models

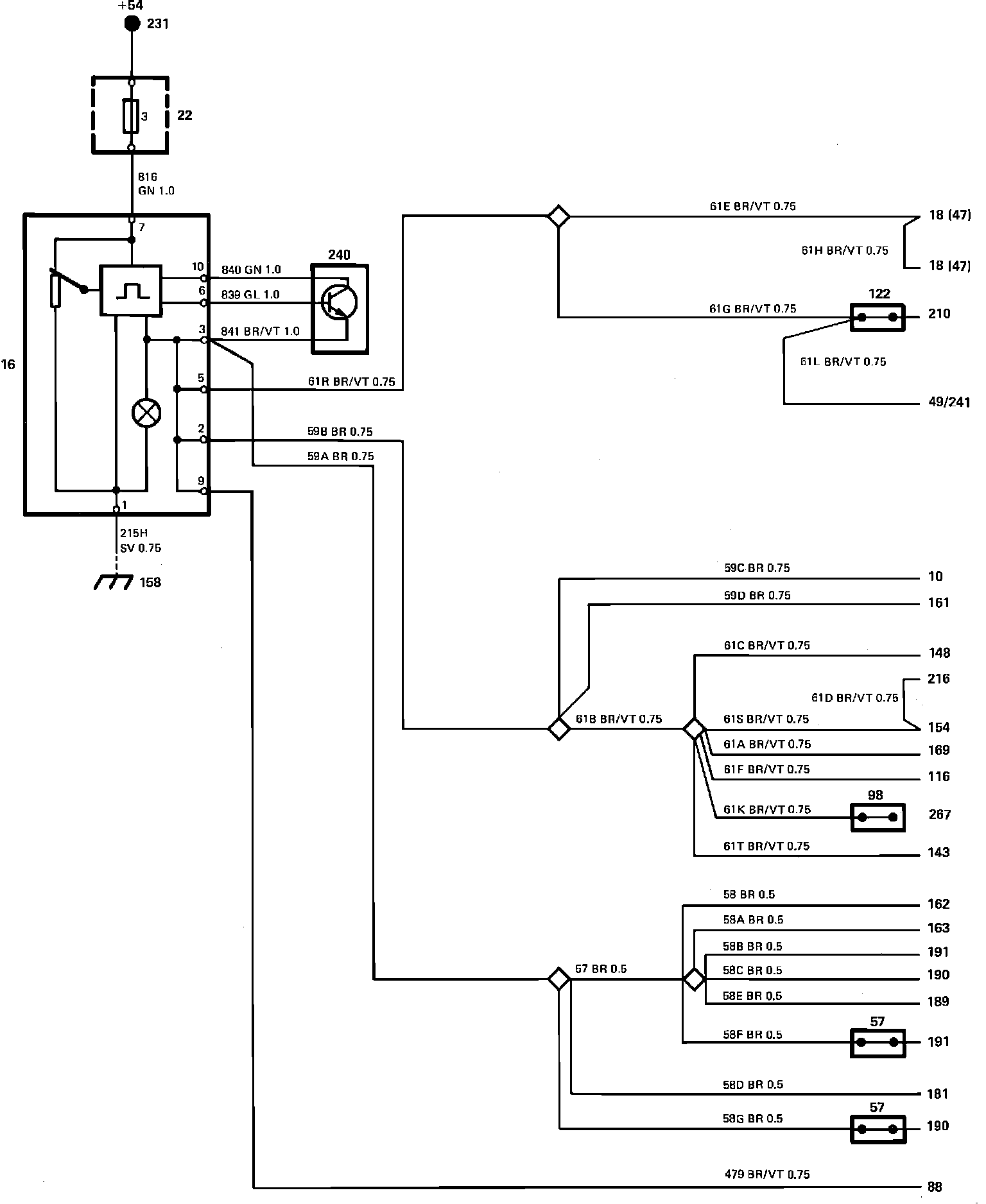

Fig. 59 Switch & Control Lighting Wiring Circuit.:
