Without ACC

To Remove
1 Disconnect the negative battery cable.

Important : Do not disconnect the battery cable while the engine is running as this could seriously damage the generator (alternator).

2 Remove the loudspeaker grille on both sides.

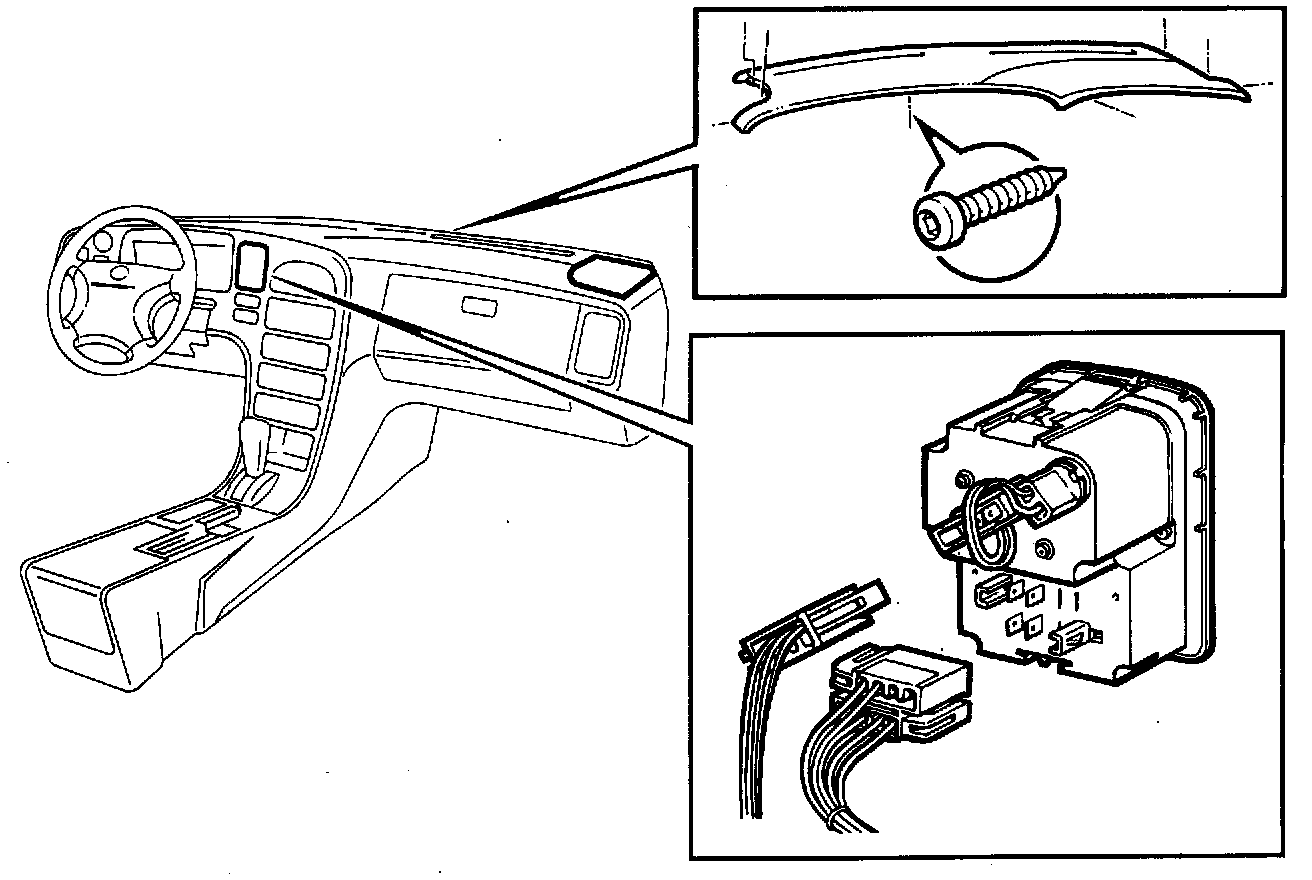

3 Remove the upper section of the dashboard (eight screws, one in the glove box).
4 Lift off the upper dashboard section.
5 Unplug the clock connectors and press the clock out of its mounting.

To Install
Install in reverse order.
