Heater Housing, Installation

1. Fit a new seal between the heater housing and bulkhead.
2. Fit the heat exchanger in housing Fit housing in position. Make sure that the lower edge of the housing is in its groove.
3. Fit screws to housing.
4. Fit cable entry in position.
5. Fit floor vents.
6. Plug in connectors for servomotor fan motor and blended air sensor (cars with ACC only).
7. Fit the plastic holder securing the wiring harness under the heater housing.
8. Fit the air duct which goes to the rear floor.
9. Fit the defroster vent and defroster air ducts.





10. Suspend the electrical distribution box in position and fit the wiring harness cable tie to the heater housing.

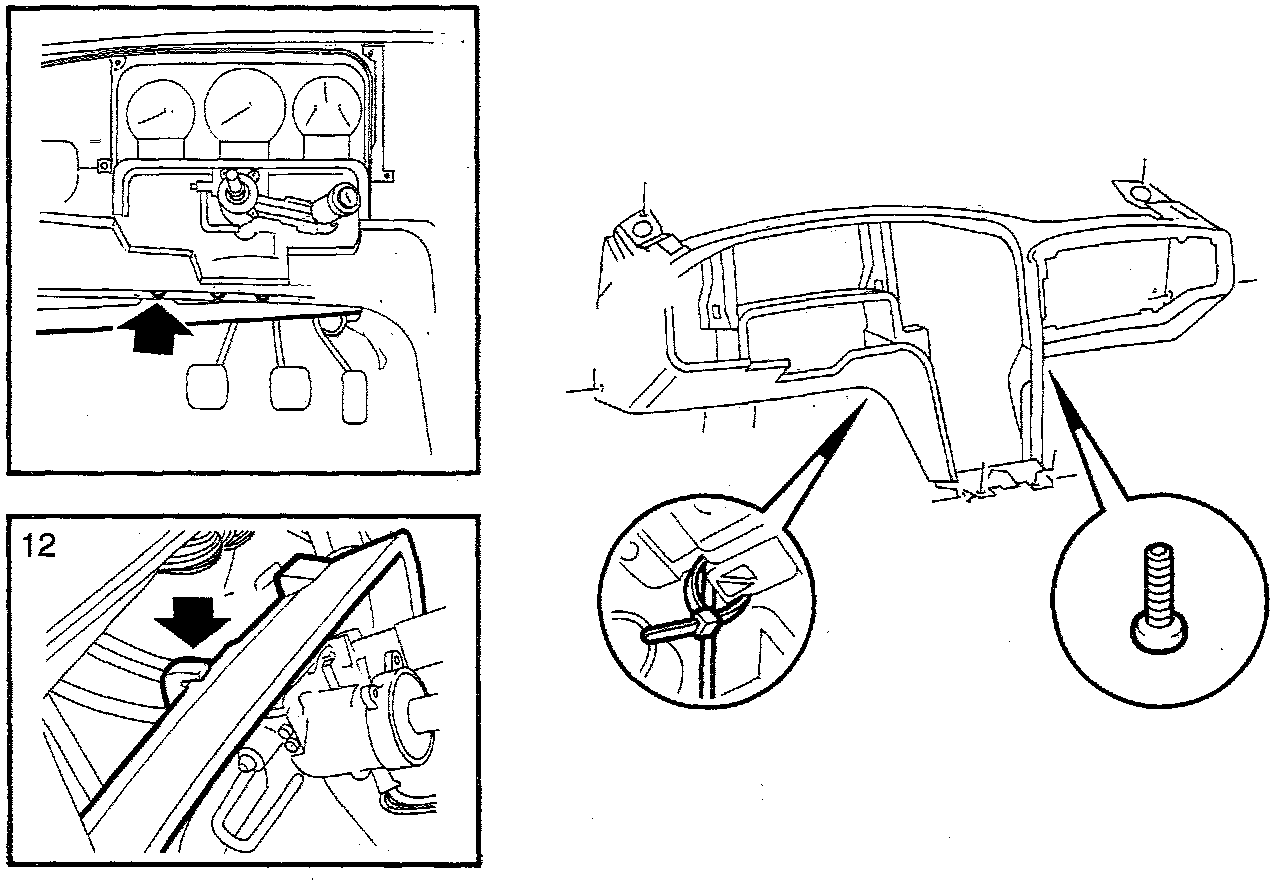

11. Place the combined instrument on the steering column bracket.
12. Place the facia in position and do up screws. Make sure that the facia is guided into the groove on the guide lug.
13. Screw the combined instrument into position.
14. Connect cables to loudspeakers.





15. Fit air ducts to left-hand and right-hand facia vents.
16. Using a cable tie, secure the wiring harness to the left-hand air duct.
17. Fit the screws securing the left-hand and right-hand side defroster ducts.
18. Fit the instrument panel facia vent to its hose.
19. Plug in electrical connectors to instrument panel.
20. Fit the center facia vent and hose.
21. Fit the instrument panel to facia.
22. Plug in connectors and fit selector switch.
23. Fit heater control panel or ACC control module.
24. Fit cover on steering column joint.
25. Fit steering wheel.
26. Lift and fit electrical distribution box.

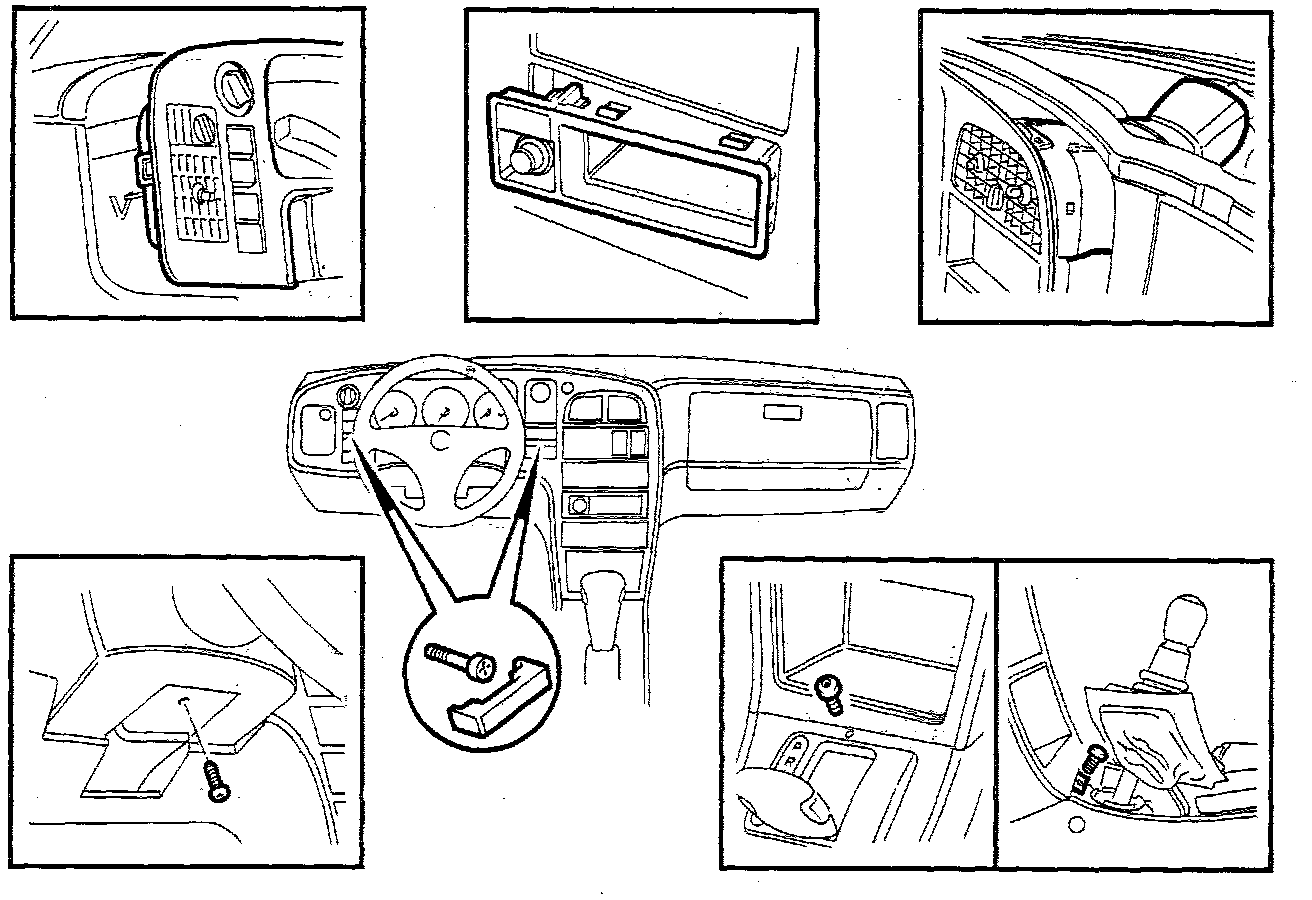

27. Fit facia vents and glove compartment. If an air-bag has been removed.
28. Fit the top of the facia, loudspeaker grilles and A pillar trim.
29. Fit ashtray holder and ashtray.
30. Fit the panel sections to the centre console and the acoustic insulation panels under the facia.
31. Fit fan housing.
