Fresh Air Filter, With A/C

Removal:

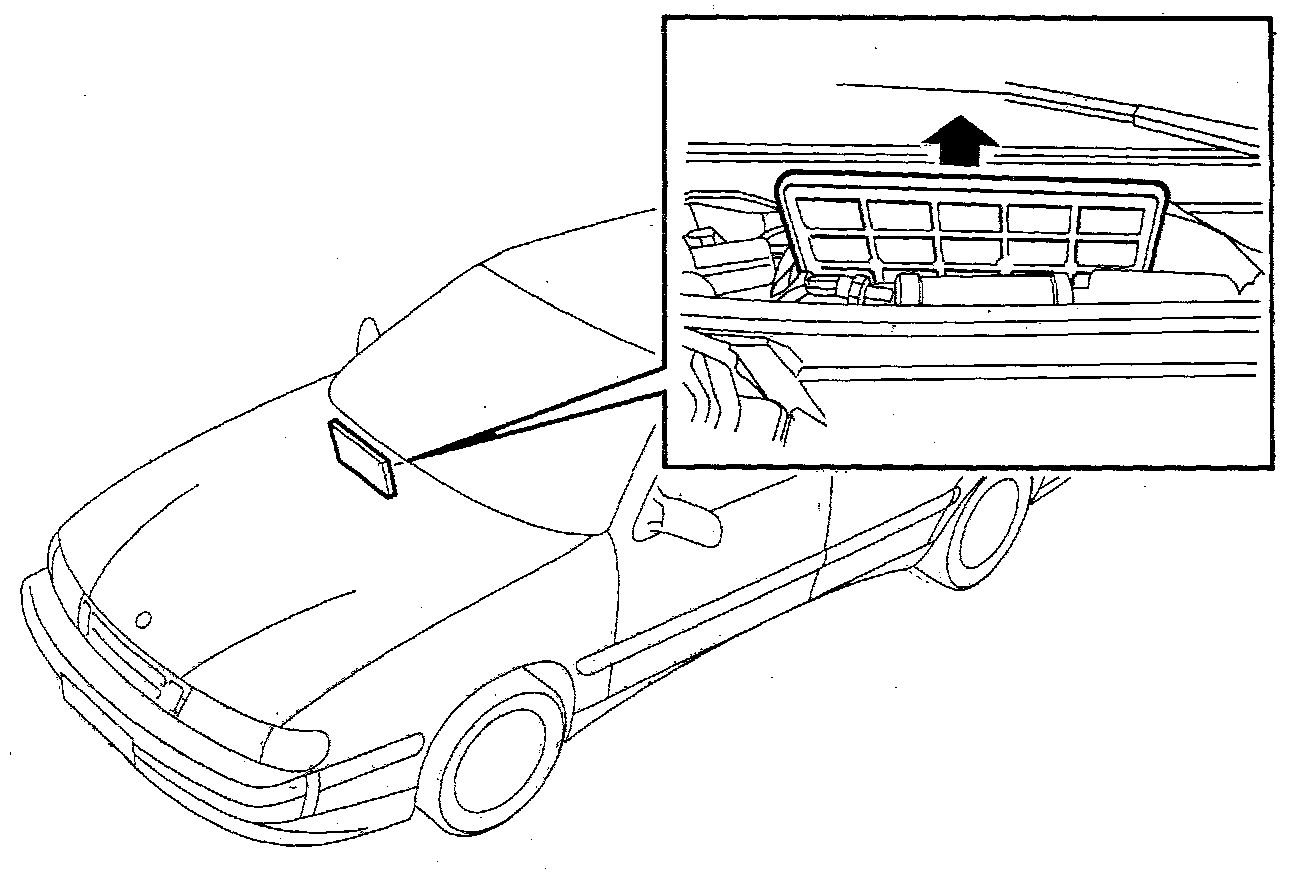

1. Remove the cover from over the evaporator casing. Lift the securing tugs.
2. Raise the lid and pull out the filter.

Installation:
1. Fit the new filter with the recess in the frame down/back.
2. Lower the cover and secure with retaining tugs. Fit the cover panel over the evaporator casing.
