Seat Temperature Element
Seat Temperature Element

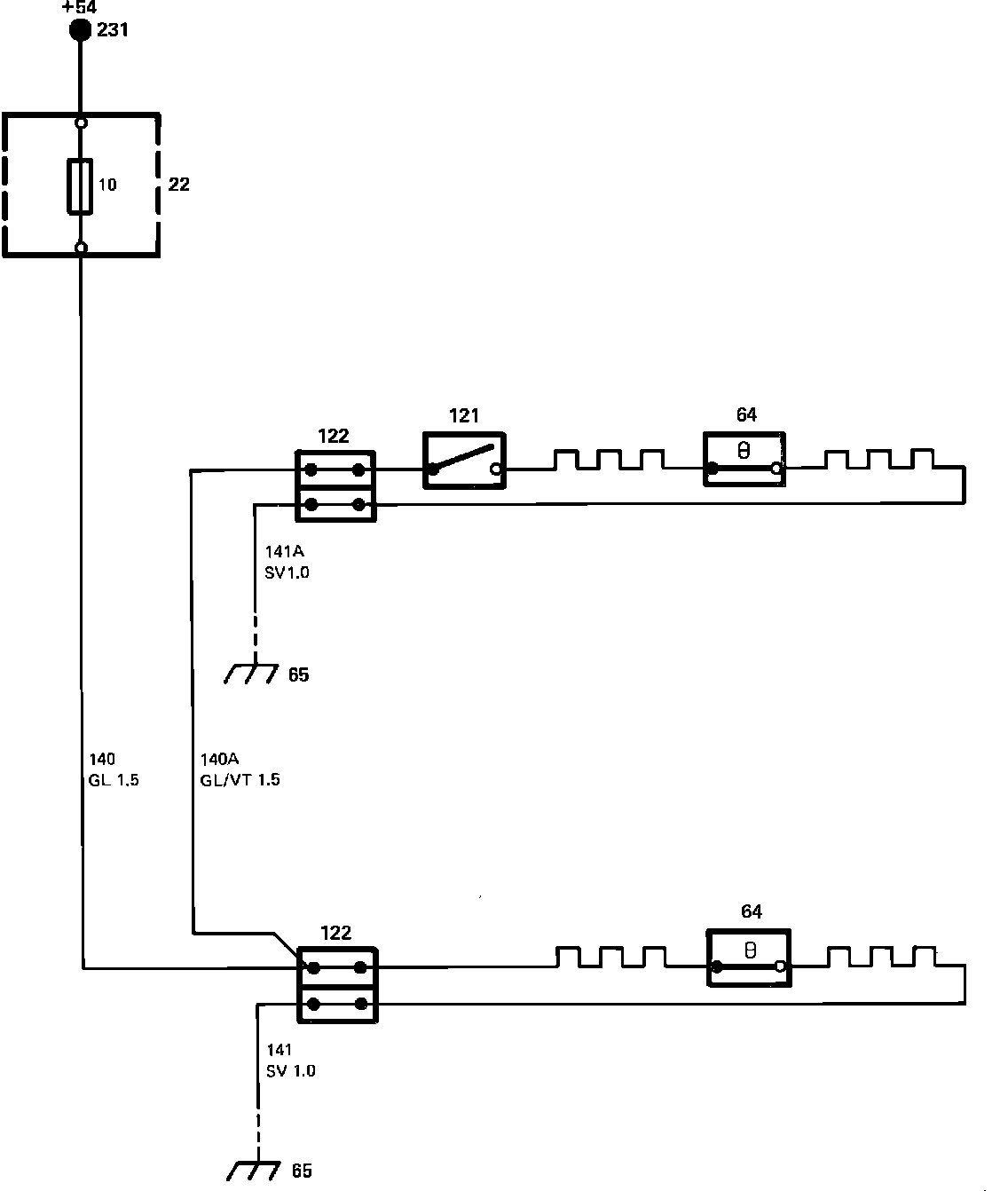

Fig. 18 Electrically Heated Front Seats Wiring Circuit:
