Rear Defogger
>>
Rear Window Defogger
Rear Window Defogger

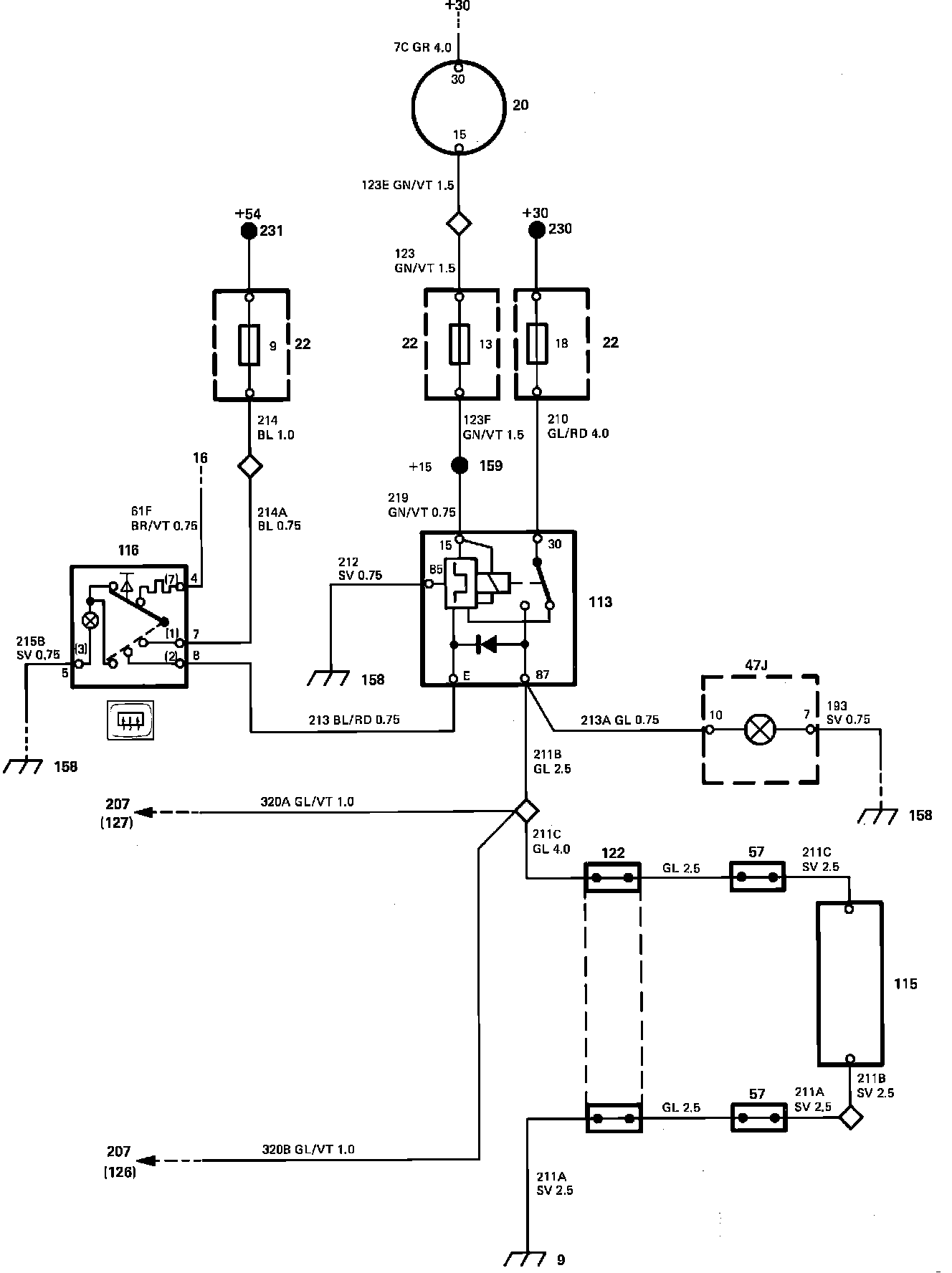

Fig. 49 Rear Window Defogger Wiring Circuit:
