Saab
>>
1986
>>
9000 L4-1985cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
Locks

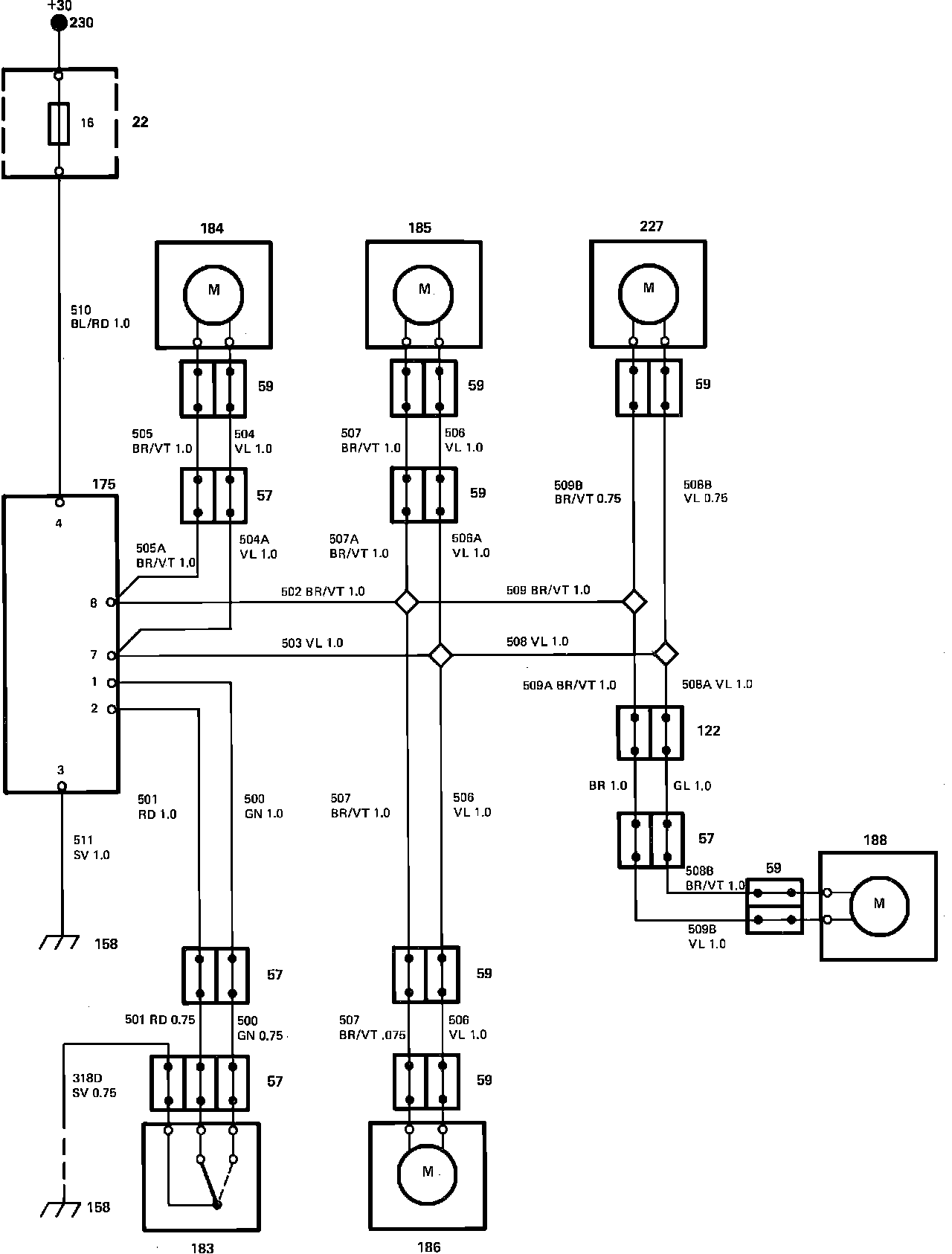

Fig. 11 Central Locking System Wiring Circuit:
