Cooling System
>>
System Diagram
>>
W/O Time Relay
W/O Time Relay

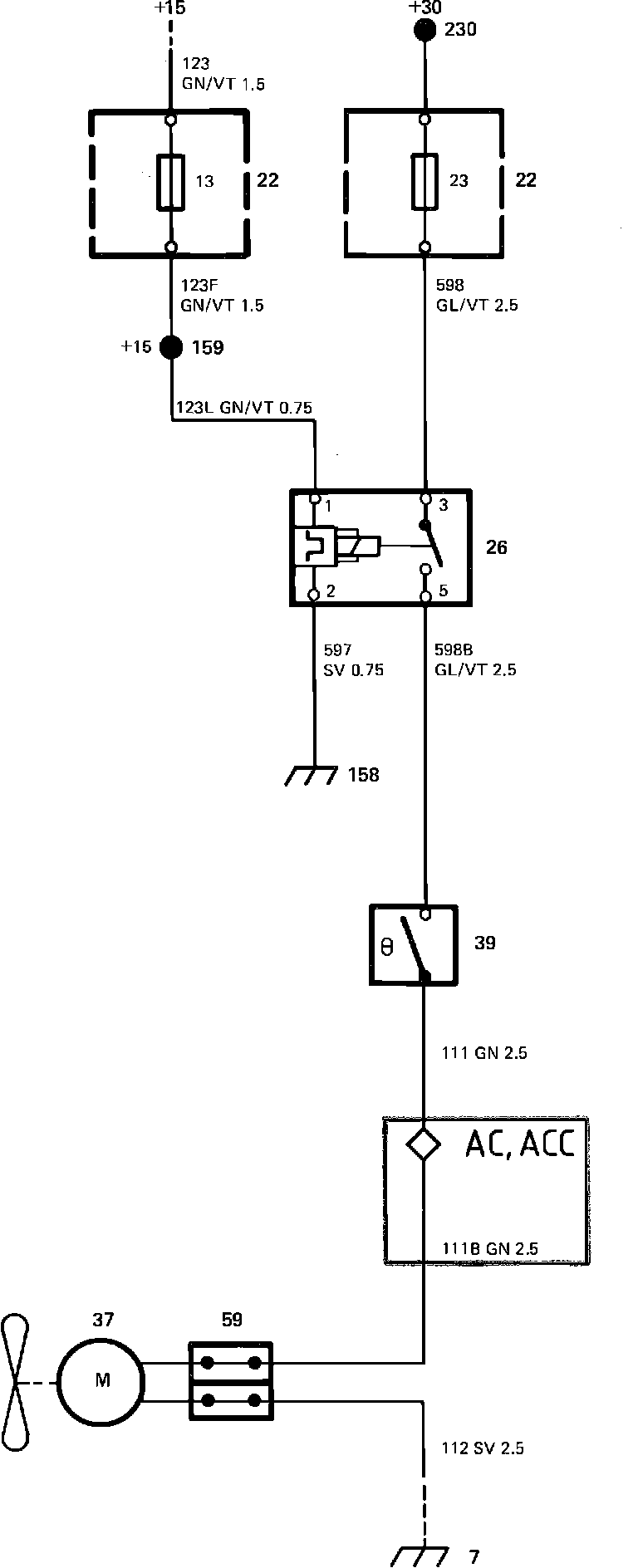

Fig. 14b Cooling Fan System Wiring Circuit. W/ Time Delay Relay:
