Curiosii for ever!: Car repair manuals for everyone.

Home >> Saab >> 1986 >> 9000 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Backup Lamp

Backup Lamp

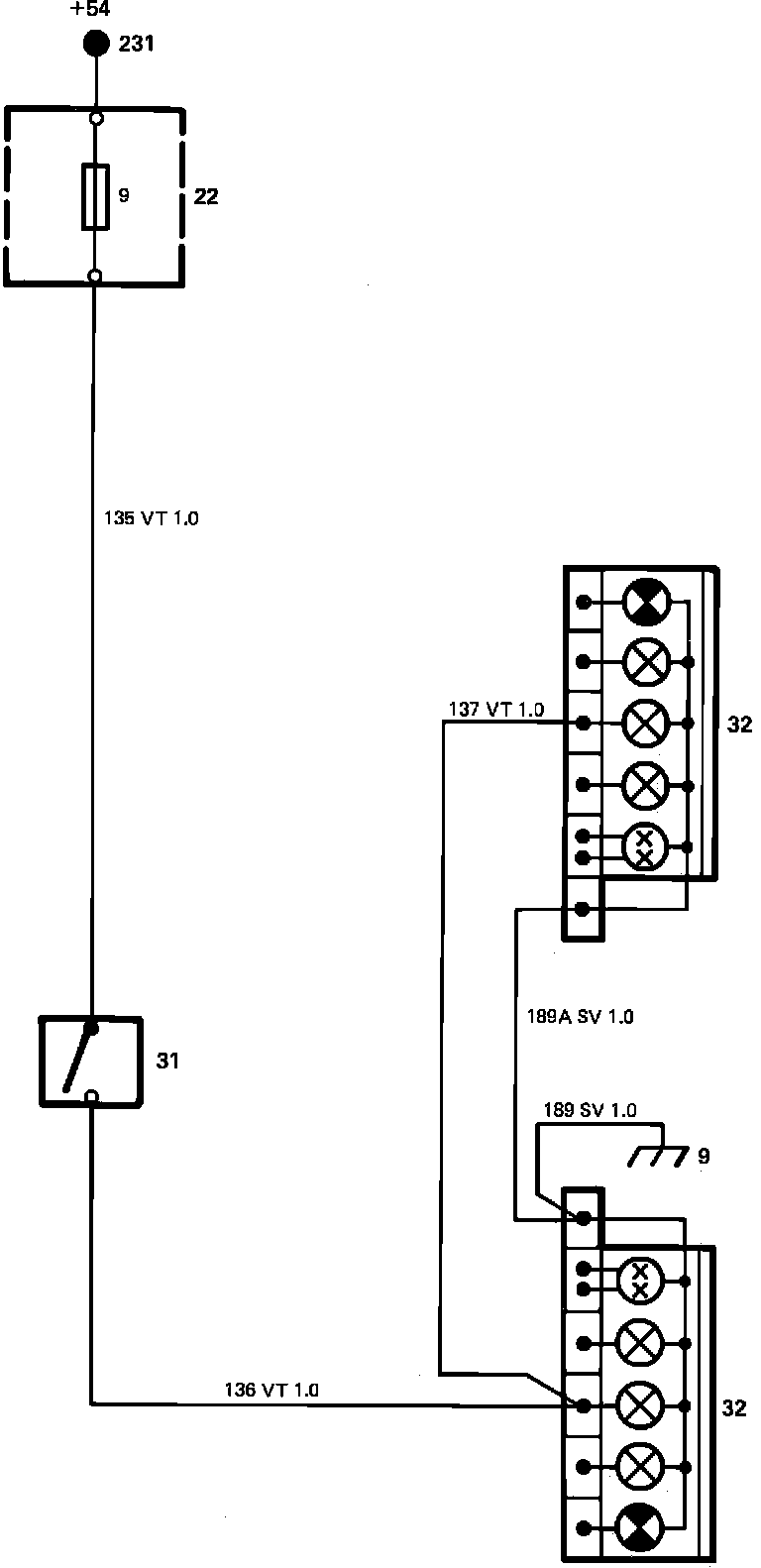

Fig. 50 Reverse Lights Wiring Circuit:
