Rear Brake Pad - New Design

91saab03

CATEGORY
Microfiche Discrepancy

SECTION PAGE
14 33
ISSUE CODE
11/91-0153 517


Subject: Rear Brake Pads

Application: 9000 US M90-, Ed 7 Grid 3-D06
9000 US M86-89, Ed 16 Grid 3-D06





A new brake pad for the Saab 9000 rear brakes has been introduced into production and spare parts inventory. This new pad is to be used for all pad replacement on all 9000 vehicles. Please make notations of this application change in all counter materials used for rapid search for fast moving parts, including Quick Reference Books.


Note: This brake pad should NOT be used in place of 89 68 026 on 900 applications. The physical dimensions of the pads are the same, but the braking characteristics differ, making the new 9000 pad unsuitable for use on 900 vehicles.

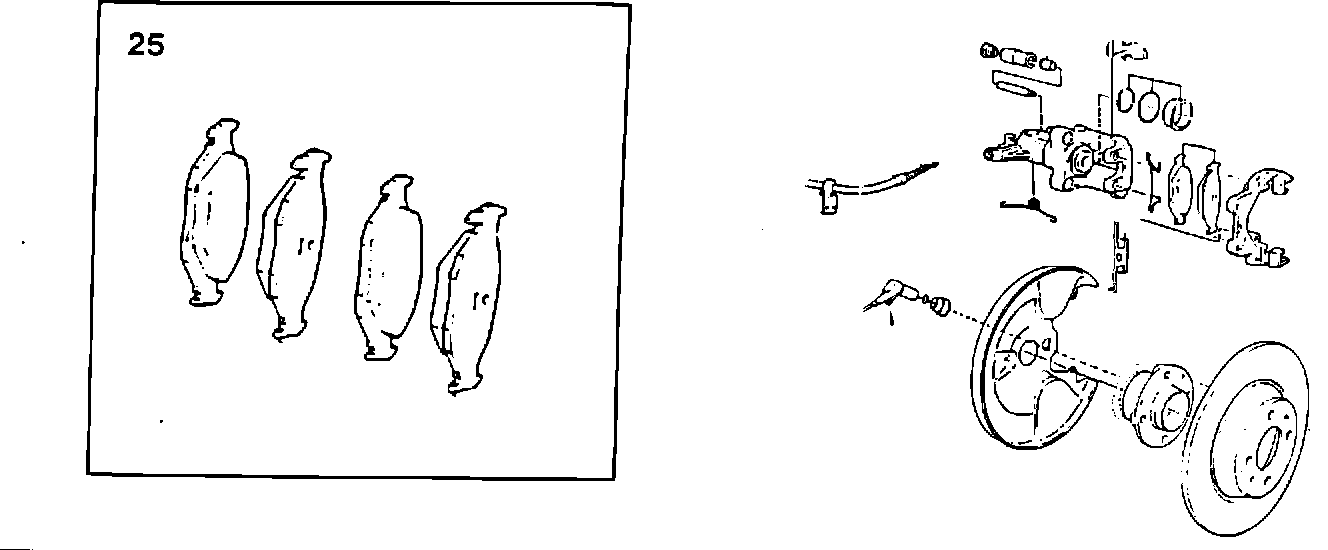

Pos Part Number Notes Qty. Description S/L

25 41 96 317 1986 . .................... 1 Rear pad set

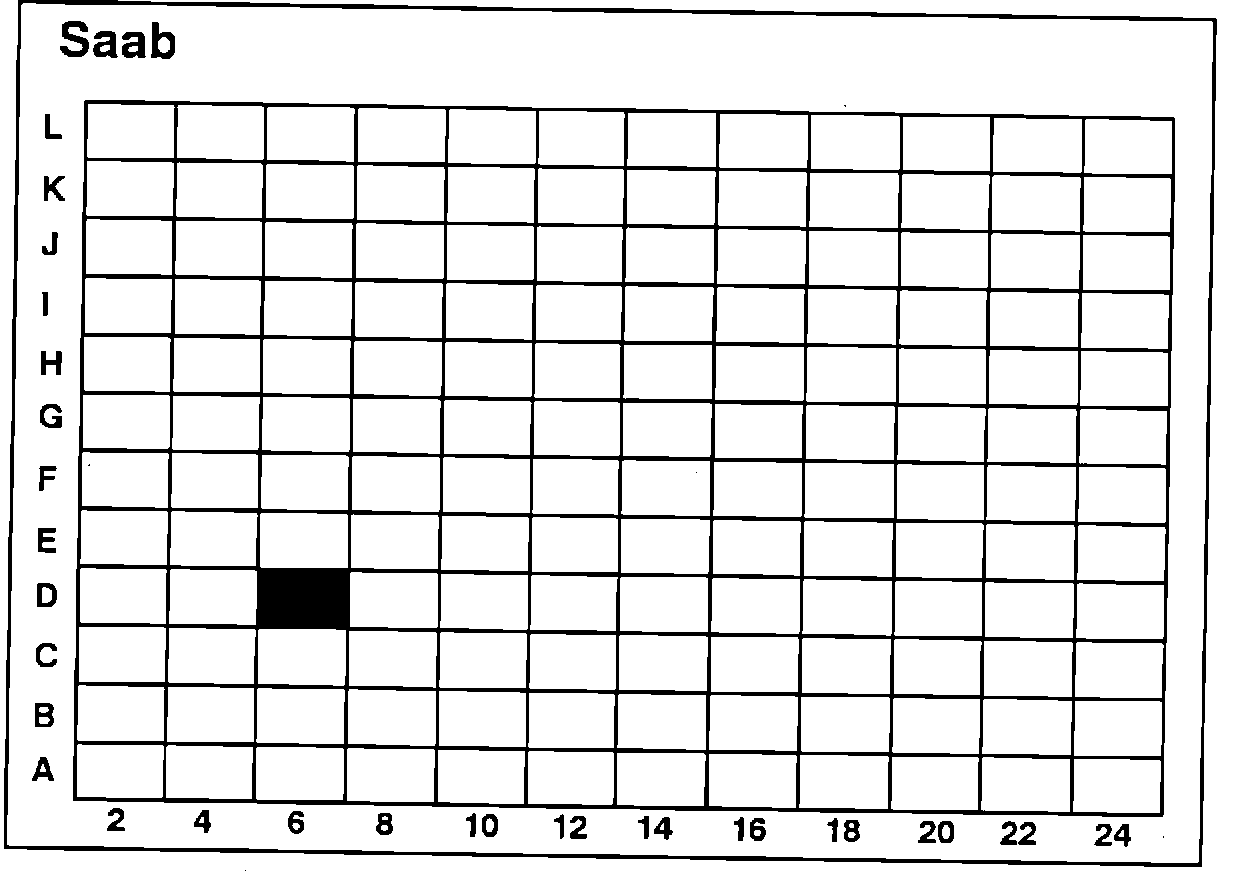

1) Carefully align the appropriate microfiche card on the matrix.


2) The black square will appear directly on the grid(s) to be marked.


3) Using a red "El Marko" permanent pen (or similar type) mark the fiche square(s).


Note:

If you use a fine tipped pen, you can write the position number where the error is. This will save looking up microfiche discrepancies unnecessarily.

Unless fiche are correctly marked, the microfiche discrepancy system will be of little help in your parts department. Use the system and avoid costly ordering errors.
