Center Console Lid Trim - Loose

86saab03

FILE IN S.I. Man VOL. I

SEC. B-8 PG. 11
Service Information

SUBJECT: CORRECTING LOOSE CENTER CONSOLE ISSUE: 10/86-894 LID TRIM


APPLICATION: 9000 MODELS
Peeling lid trim may be repaired without resorting to replacement of the entire lid by following the instructions given below. Proceed carefully and remove any excess adhesive when job is completed.

Supplies

3M General Purpose Adhesive Cleaner 08984

3M Plastic & Emblem Adhesive 08061



Repair Details

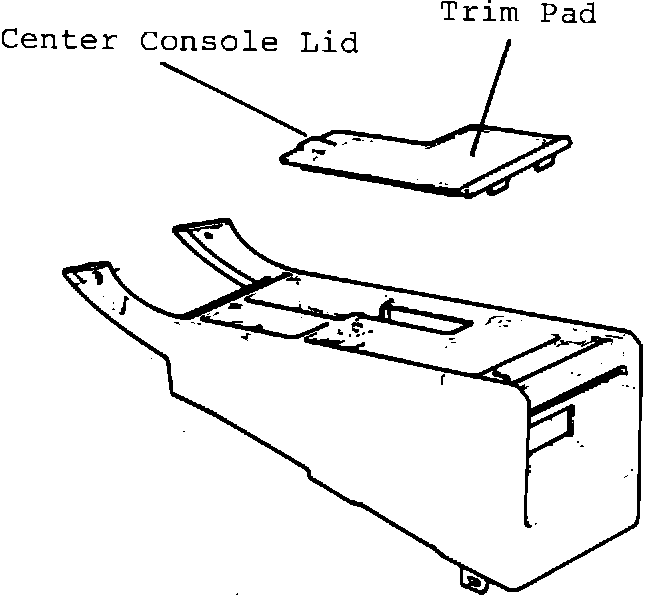

1. Pull away the trim from the console lid. If this is done slowly and from several directions there will be no risk of stretching the vinyl.

2. Wipe (do not rub) all traces of old adhesive from the vinyl trim and console lid using 3M General Purpose Adhesive Cleaner 08984 or equivalent.

3. Apply 3M Plastic and Emblem Adhesive 08061 or equivalent to the trim and the lid surface. Press surfaces together to transfer wet adhesives and immediately pull apart.

4. Let cure for 5-10 minutes then press surfaces back together with even pressure.

5. After 30 minutes carefully clean any excess adhesive from console lid using the adhesive cleaner sparingly if necessary.
Warranty Information: For warranty claims, use Failure Coding 85748-35-0-01-05. Time allowance -is 0.3 hour which should be entered as Straight Time. Material reimbursement of $5.00 can be entered as a sublet amount.
