Hub Caps - New Clip Design

85saab03

FILE IN S.I. Man. VOL. I

SEC. A-7 PG. 21
Service Information

SUBJECT: NEW HUB CAP CLIPS (STEEL WHEELS) ISSUE: 10/85-797

APPLICATION: 1985-86 BASE 900 MODELS
A new hub cap clip for the steel wheel has been introduced into early M86 production which requires this installation information. The new clip may also be fitted as a service measure to M85 models which experience hub cap loss when driven on rough roads.

Clip Assembly P/N 91-01-510

A clip assembly includes the clip and a metal sleeve. Eight clip assemblies are required (2 per wheel) for each car.

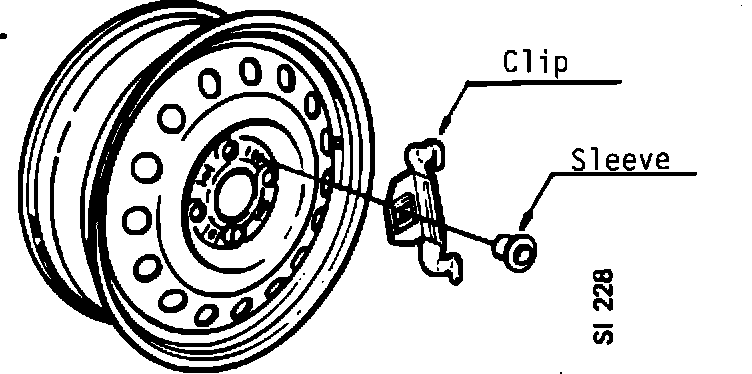

To install, insert the clip into the correct hole in the wheel and then press or tap the sleeve into place as shown in the drawing. Install the hub cap as before.
