Campaign, Modification Parts, Repair & Claim Information
THE CAMPAIGN
The Defect
Saab-Scania has notified the National Highway Traffic Safety Administration that a defect which may be safety-related exists with late 1986 to early 1987 900S and 900 Turbo models.
The defect is that the fuel hose between the pressure regulator and injecter fuel rail may rupture due to stress resulting in a fuel leak, and possibly, a fire.
These vehicles are being recalled by Saab-Scania of America to install a new design of this hose.
Vehicles Affected By This Recall
1986 900S, 900 Turbo
G2025755- G3019628- G7029285-
1987 900S, 900 Turbo
H2000001-H2012867 H3000001-H3010345 H7000001-H7018747
Recall Schedule
Owner Notification March 23, 1987
Initial Parts Shipments March 25, 1987
Date Campaign Repairs Begin April 2, 1987
MODIFICATION PARTS
Parts Involved
Fuel Pressure Regulator Hose 75-64-339
Banjo Fitting Seals 83-26-704 (2 per car)
Initial Parts Supplies
On March 25, 1987 each Saab dealer will automatically be shipped an initial quantity of hoses and seals corresponding to 33% of the cars recorded on your dealer's status list. A status list is attached to this Service Information.
Your dealership will be debited for the initial supply at dealer net. Contact your servicing parts depot if you do not receive your initial supplies by April 2, 1987. Re-order after the start of the campaign as campaign activity dictates.
Subsequent Orders
Phone or mail orders for additional hoses and seals to the Parts Sales Office of your servicing Saab depot. Identify all such orders as follows:
Order type - "VOR" Special instructions - "Recall 269"
For fastest handling, order VOR. Do not order recall parts on a stock order.
REPAIR INSTRUCTIONS

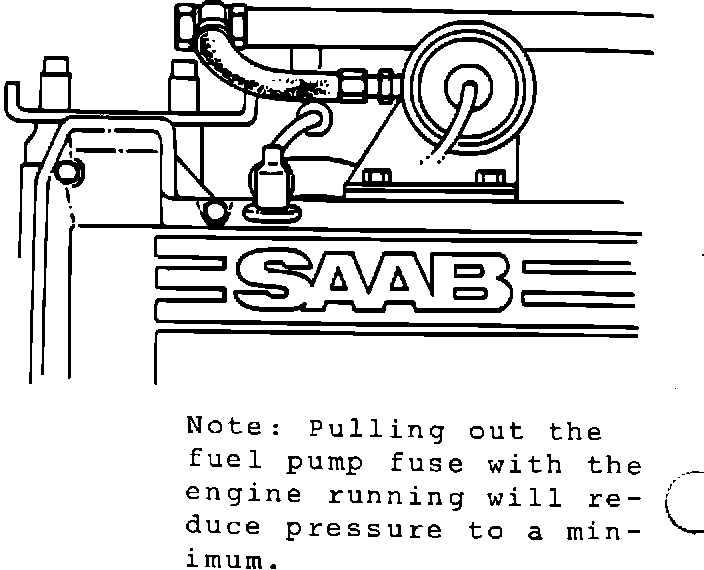

1. Place a rag beneath the fuel pressure regulator hose to absorb spilled fuel.
No Smoking! The fuel is pressurized and precautions should be taken when disconnecting the hose. The engine must be off!
2. Remove the old hose.
3. Position 2 new banjo fitting seals 83-26-704 and install the new hose 75-64-339.
Tighten the fittings and ensure that there are no sharp twists or bends in the hose.
Start the car and check for leaks.
4. Stamp the Modification Plate
- See S.I. 06/85-767(5)
- The modification plate must be stamped after the hose is replaced.

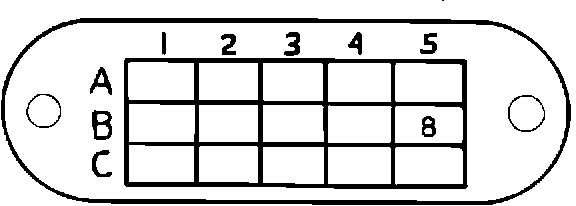

- Stamp the figure "8" into position B5 of the modification plate with a 3/8" punch.
Punch available from Saab under P/N 02-97-713.
CLAIM PROCEDURE
Claim Forms
Owner notification letters were sent inside a Saab claim form/mailer. The preprinted 269 claim form is to be used by your dealership. This is necessary for payment and to complete our recall records and update our periodic recall reports to the National Highway Traffic Safety Administration (NHTSA). Records are subject to Federal (NHTSA) audit.
If the owner has lost the claim or it is otherwise unavailable or unusable, contact your Saab Regional Service Office and request a new Recall 269 claim form. If the supply of preprinted forms for 269 are exhausted, a blank recall claim form will be sent, which must be filled out according to the sample pictured on the next page.
Recall repairs cannot be claimed on a regular warranty claim form.
Claim Completion Instructions
Fill in the blanks as shown in the sample on the next page. Make sure that the owner and your dealership signs the form.
Submission of Recall Claims
The recall claim consists of a Factory copy, a Parts copy and a Dealer copy. Forward only the factory copy to:
Saab-Scania of America, Inc. P.O. Box 697 Orange, CT. 06477
Attn: Warranty Dept.
Submit within 30 days of the repair date. Do not use the recall claim form for any other purpose than the one intended.
