LH System Diagnostics
Fault diagnosis chart: LH 2.2Fault codes in brackets in the fault-diagnosis charts denote that the faults concerned are attributable to the primary fault.

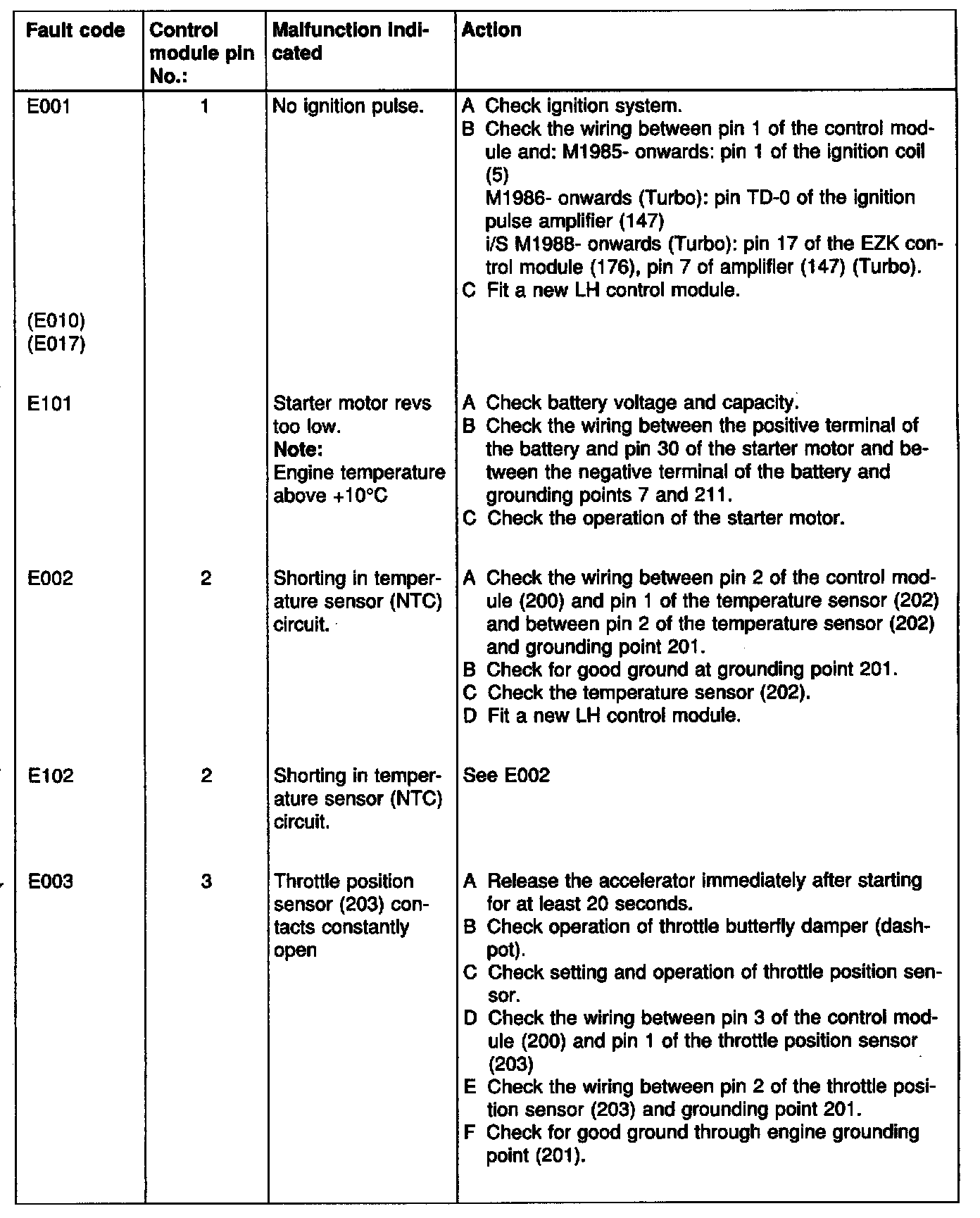

E001, E101, E002, E102, E003:

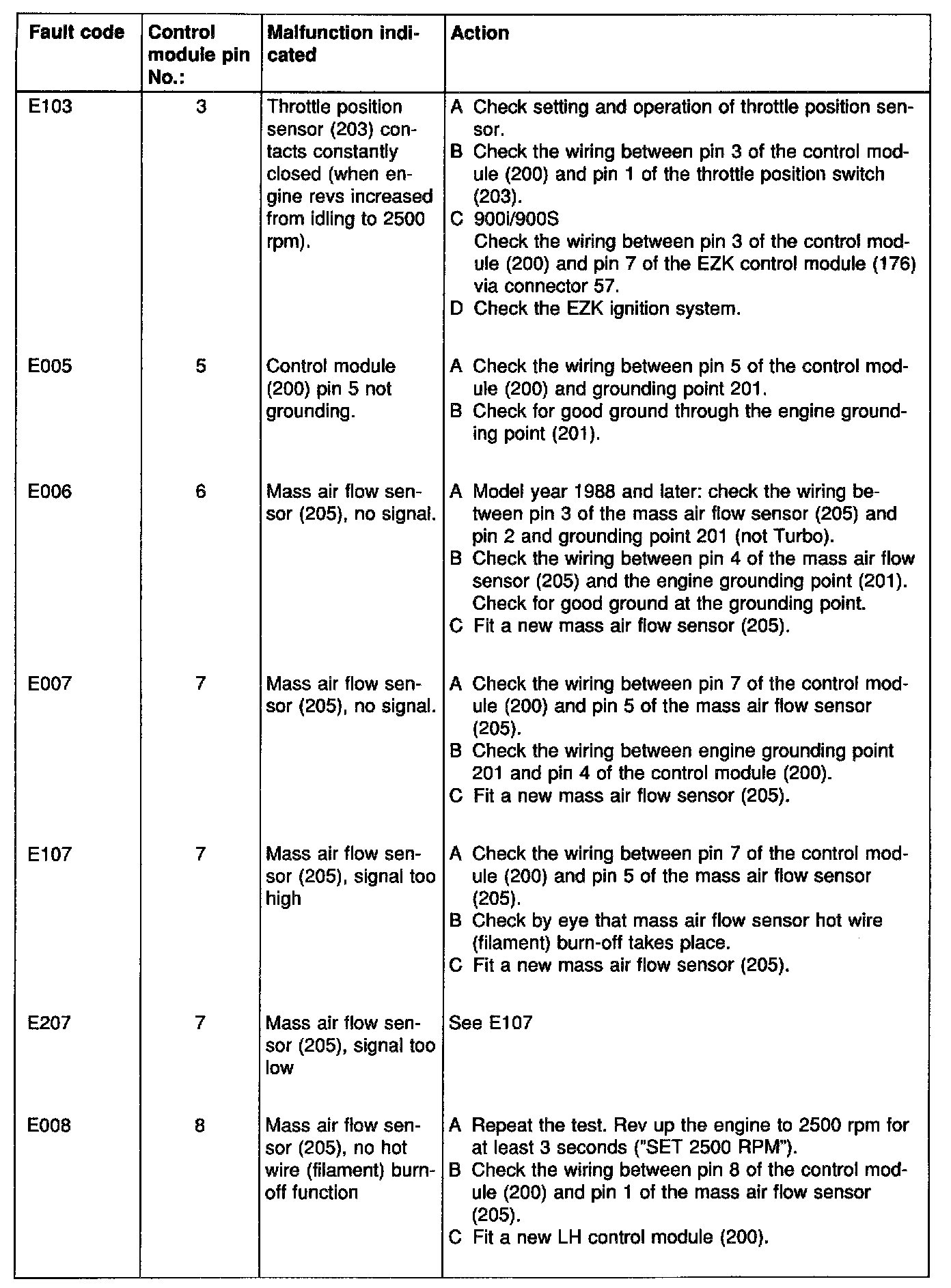

E103, E005, E006, E007, E107, E207, E008:

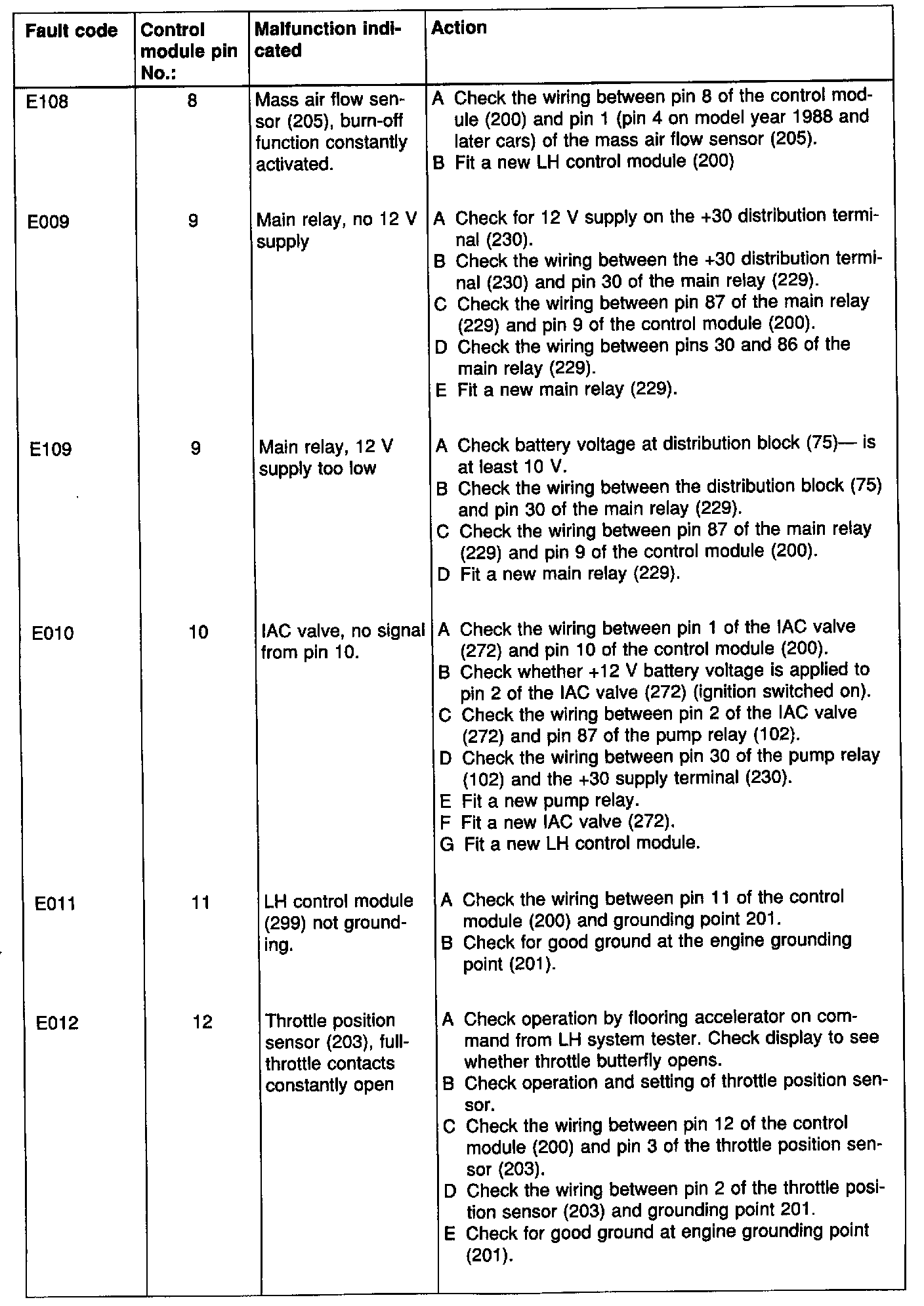

E108, E009, E109, E010, E011, E012:

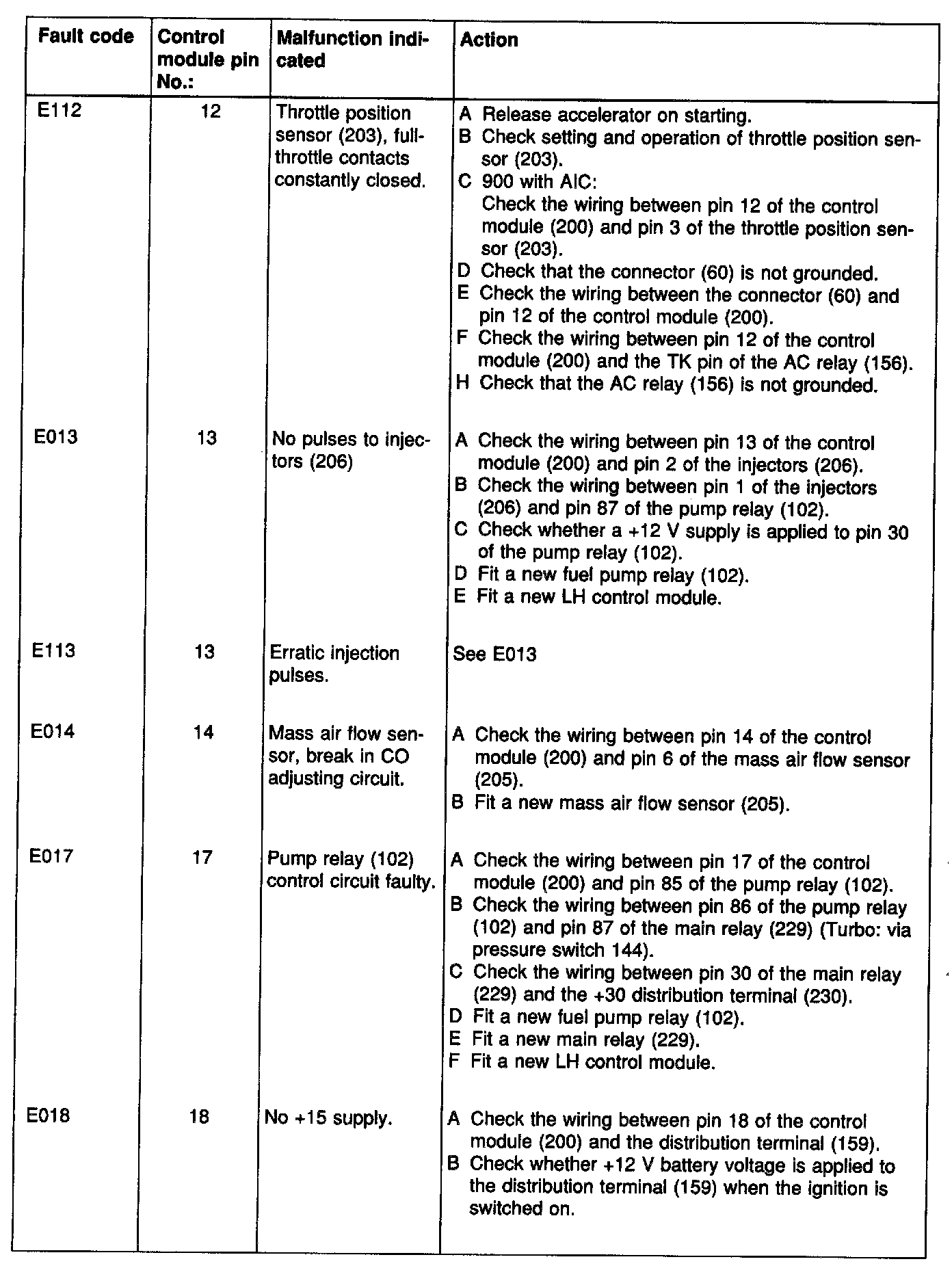

E112, E013, E113, E014, E017, E018:

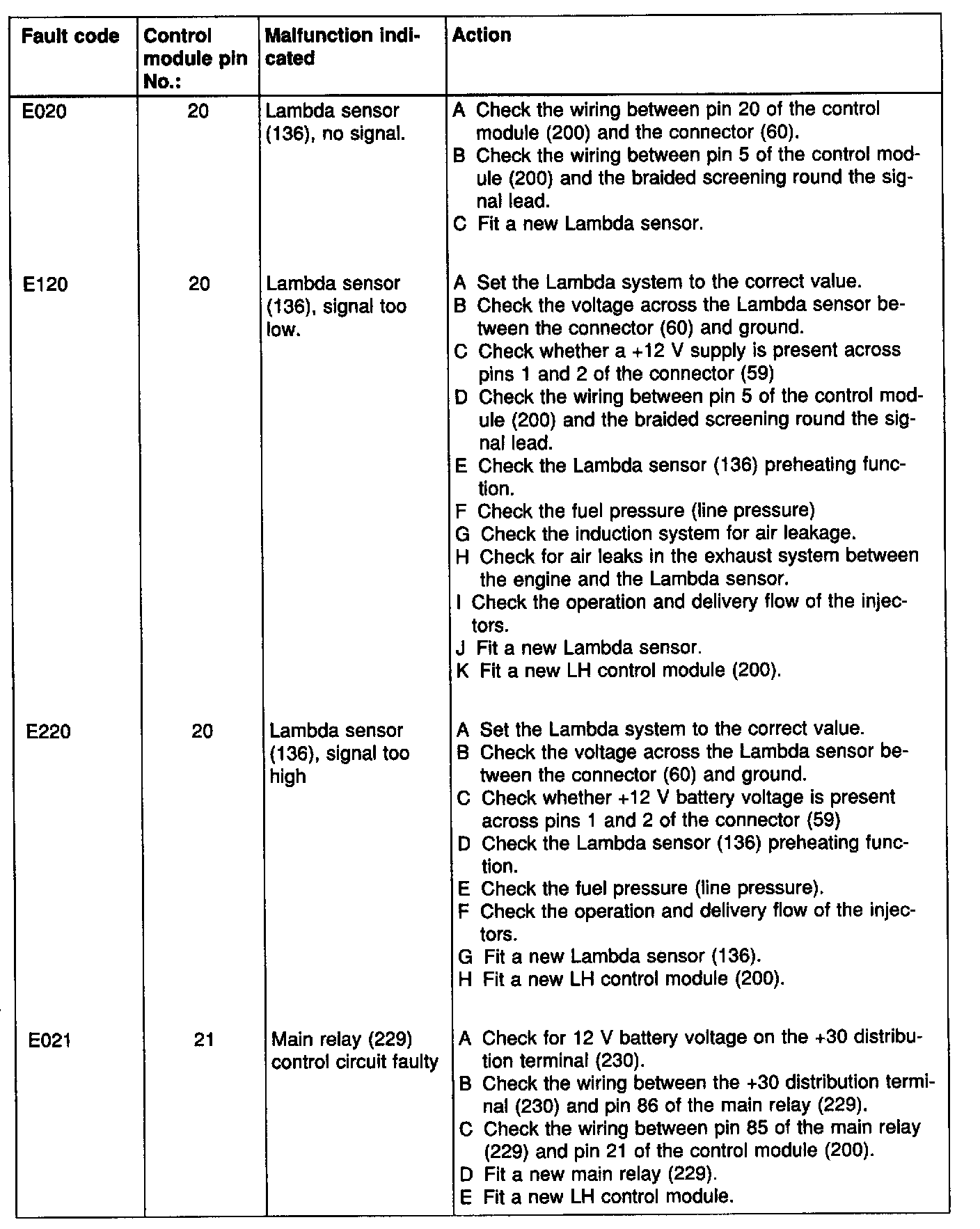

E020, E120, E220, E021:

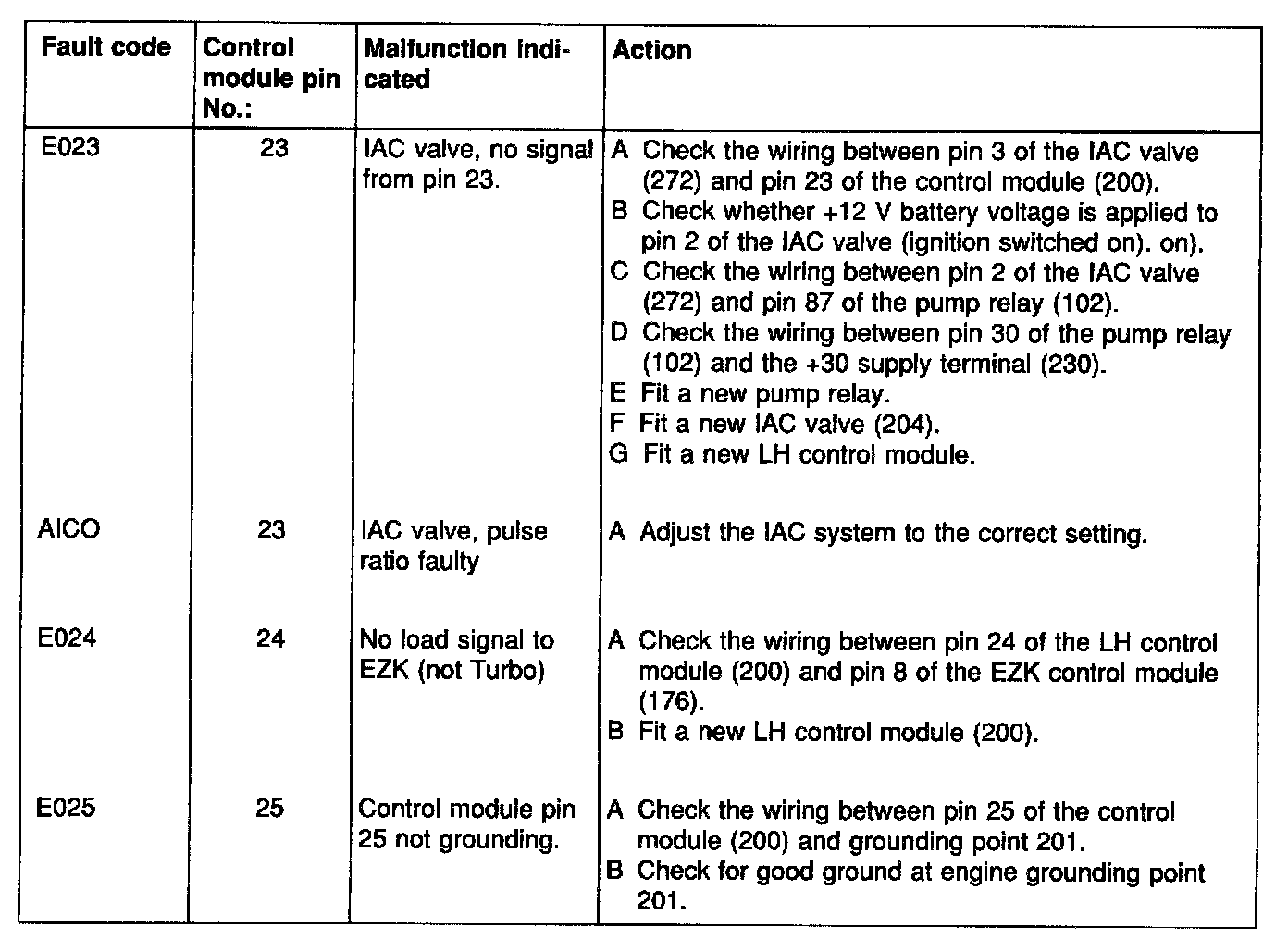

E023, AICO, E024, E025:
