Front Bumper Fascia - Installation

INSTALLATION

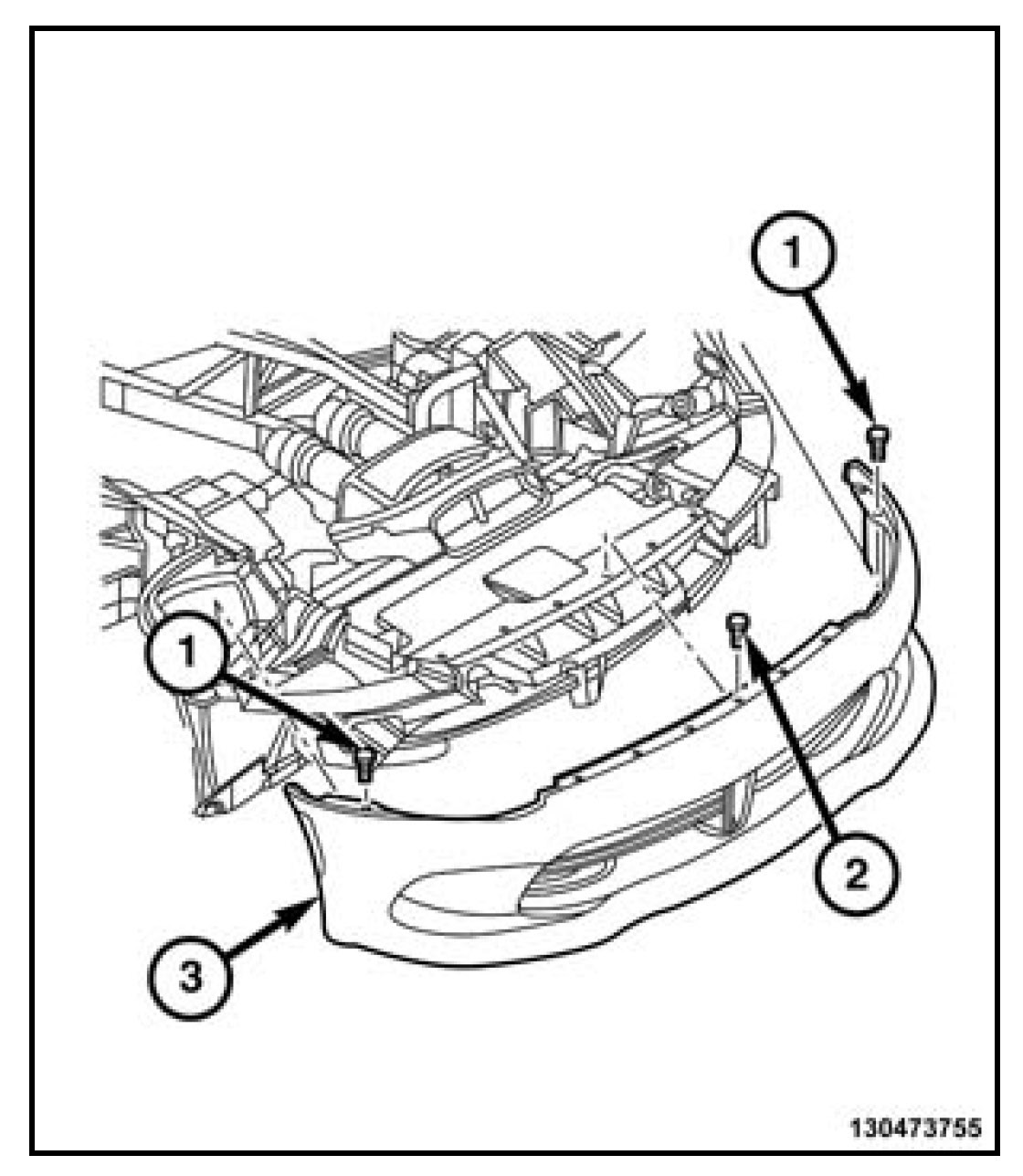

1. With the help of an assistant, position the fascia (3).With the help of an assistant, position the fascia (3).
2. Connect the side marker lamps.Connect the side marker lamps.
3. Position the sides of the fascia (3) over the front wheelhouse edges.Position the sides of the fascia (3) over the front wheelhouse edges.
4. Install six fasteners (2) into the front of the fascia (3) and tighten to securely.Install six fasteners (2) into the front of the fascia (3) and tighten to securely.

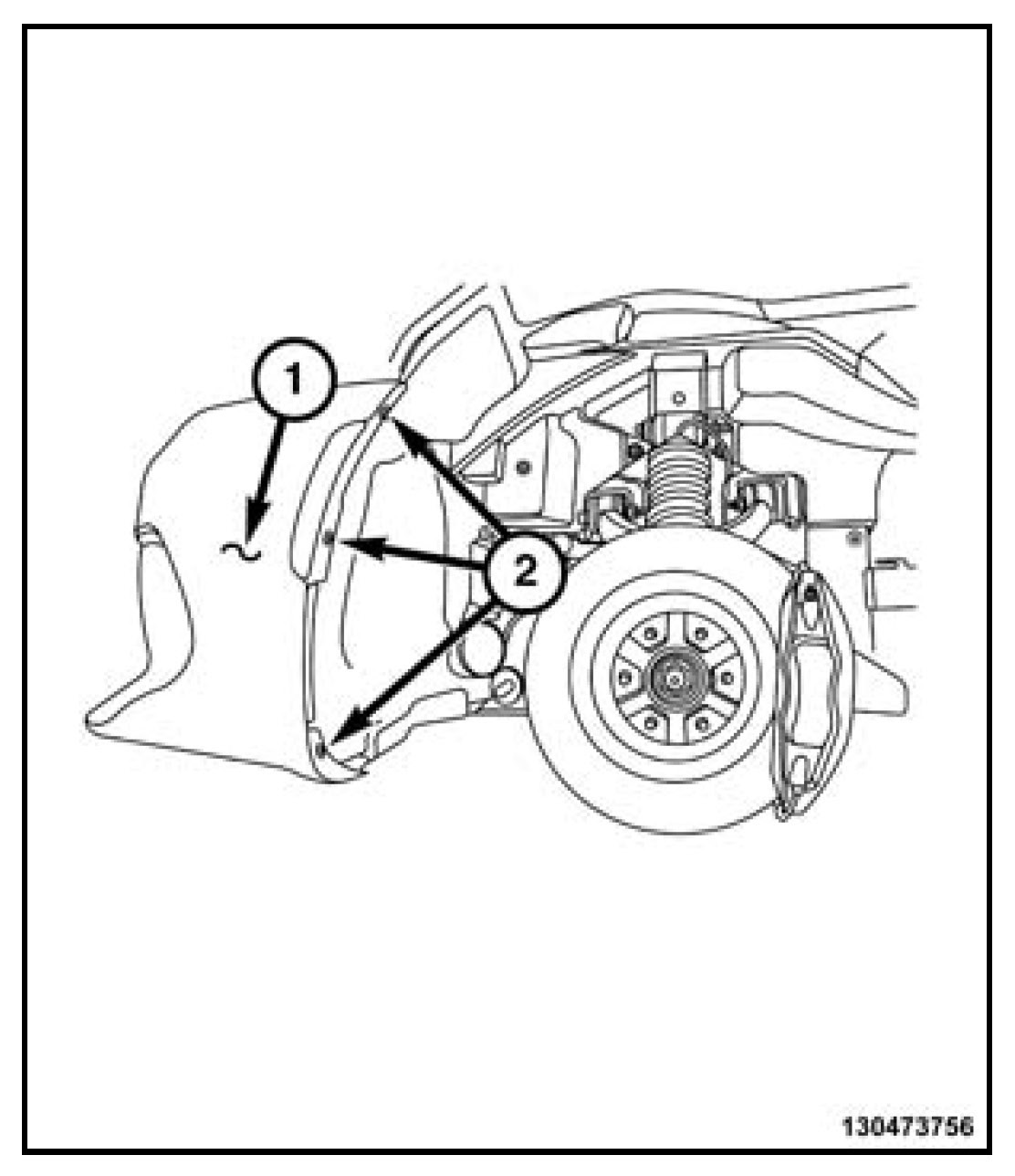

5. Install two fasteners into each sides (1) of the front fascia and tighten to securely.







6. Install three fasteners (2) into the sides of the fascia and tighten to securely.Install three fasteners (2) into the sides of the fascia and tighten to securely.
7. Repeat on the opposite side.

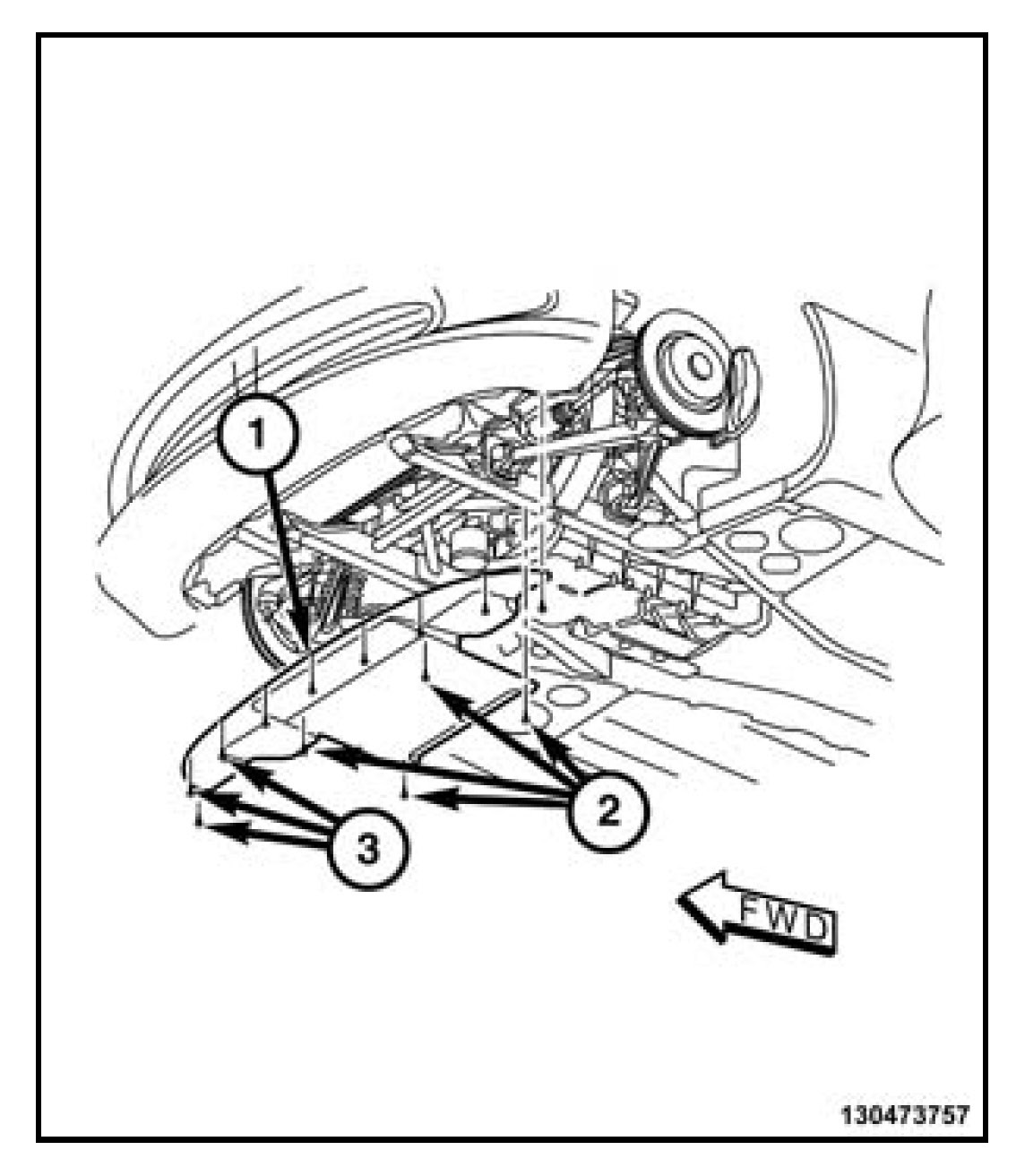

8. Install the front nine fasteners (3) from the front belly pan (1) and tighten securely.Install the front nine fasteners (3) from the front belly pan (1) and tighten securely.
9. Lower the vehicle.Lower the vehicle.
10. Connect the negative battery cable.
