Brake Shoe: Adjustments

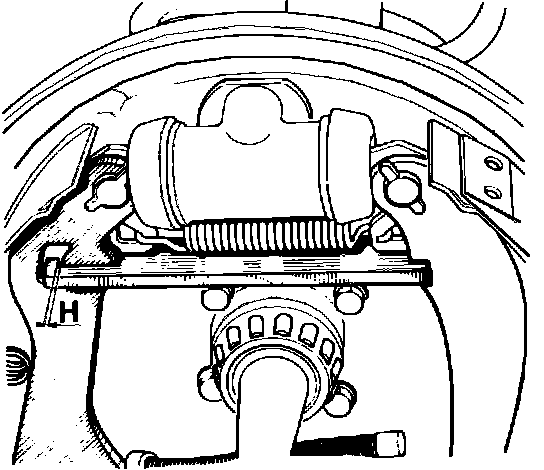

Fig. 1 Rear brake drum adjustment.:

1. Check dimension H, Fig. 1 for clearance of .039 inch (1 mm) between link and primary brake shoe. Parking brake lever must be contacting brake shoe when performing measurement.
2. If measurement is not as specified, replace link tension spring and brake shoe return springs.
