Radio Wiring Circuit, W/Electronic Tuning
Radio Wiring Circuit, W/Electronic Tuning

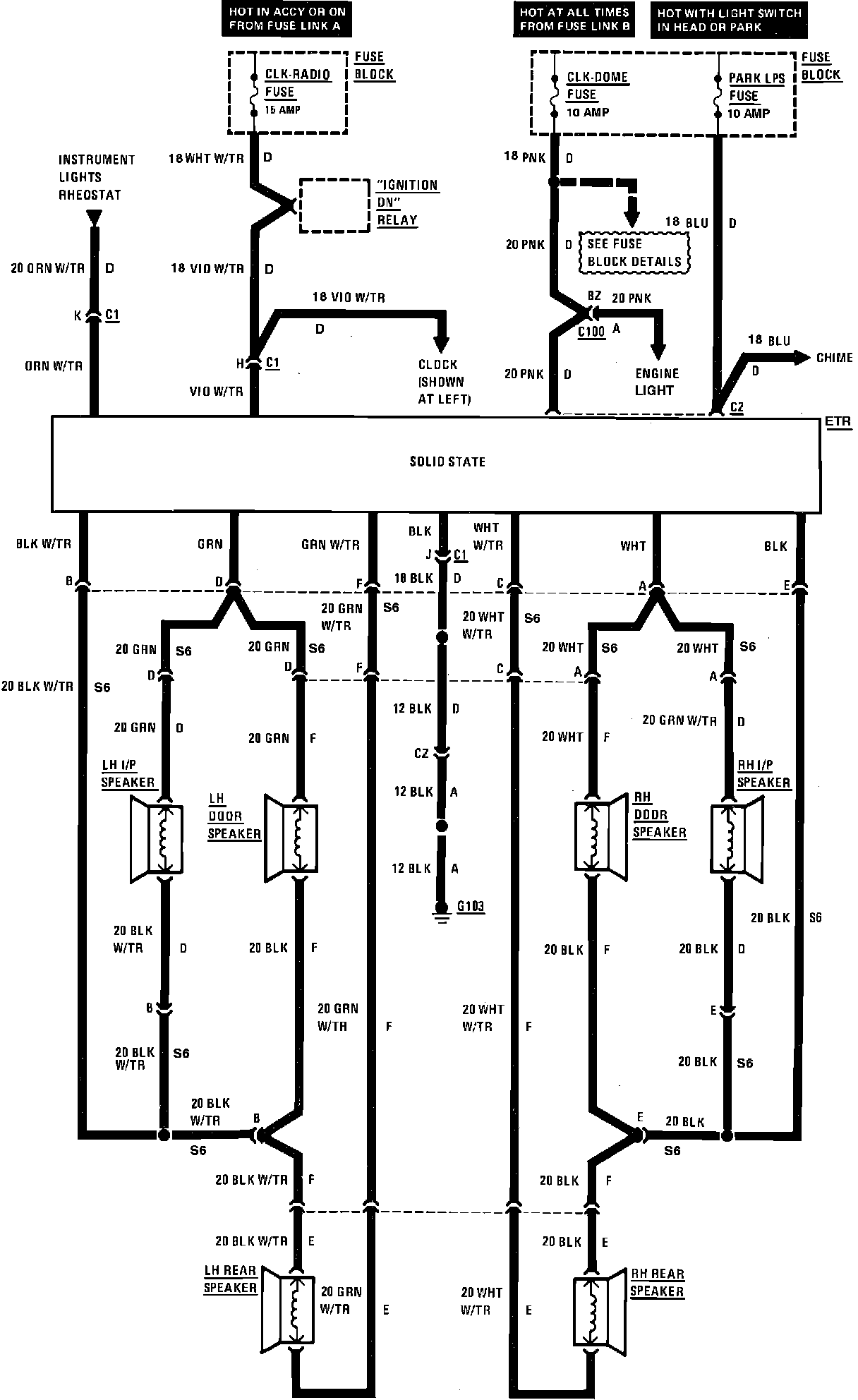

Fig. 22 Radio wiring circuit:
