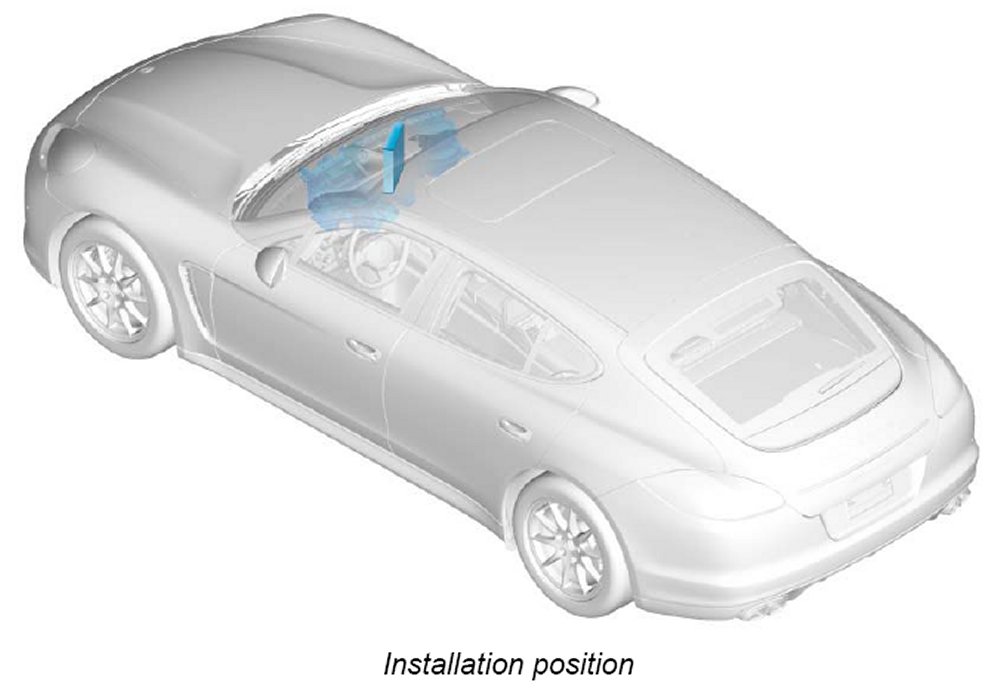

Cabin Air Filter / Purifier: Service and Repair

Removing and Installing Particle Filter


Preliminary Work:
1. Remove cover in passenger's side footwell.


Removing Particle Filter

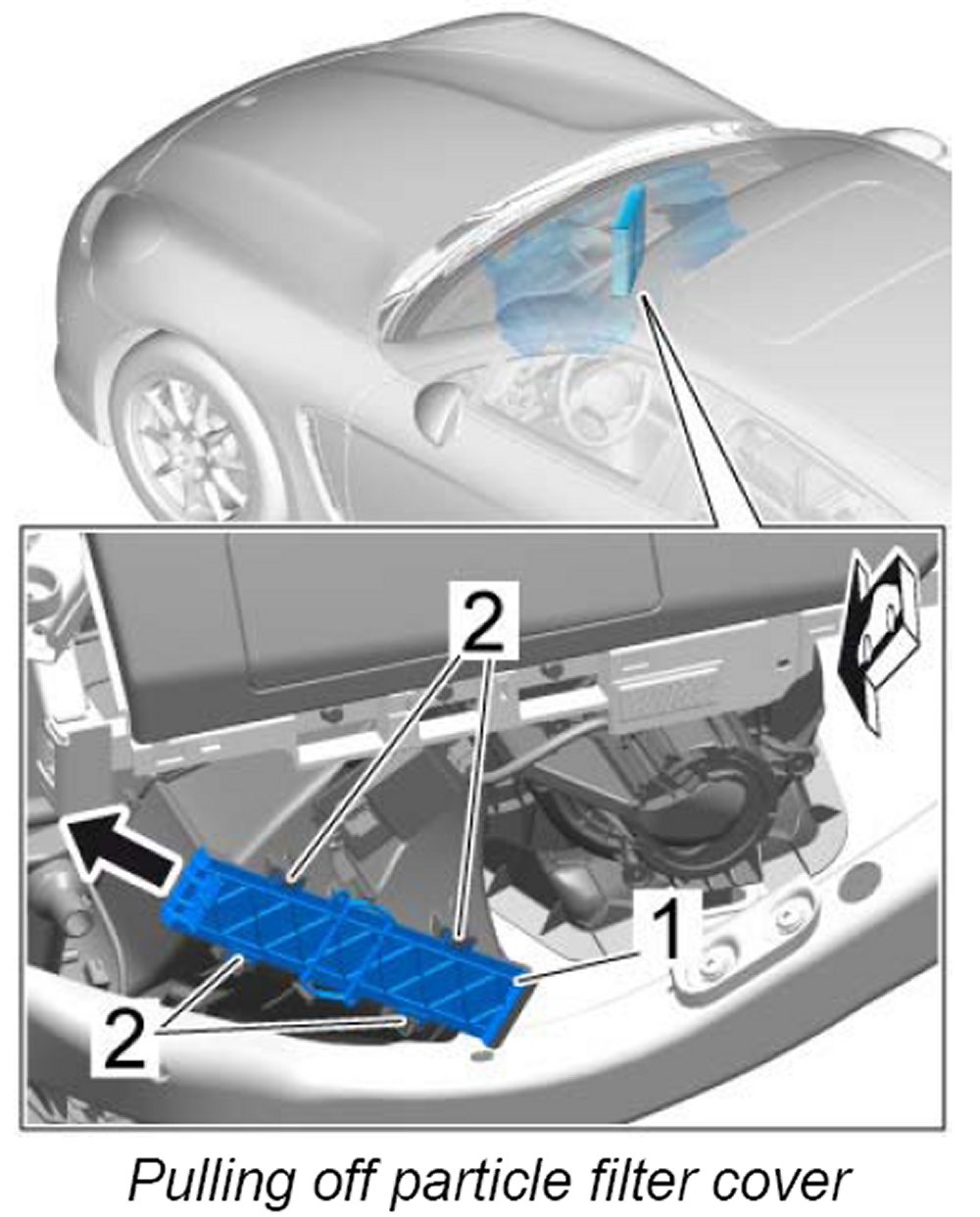

1. Pull cover for particle filter -1- out of bracket -2-.

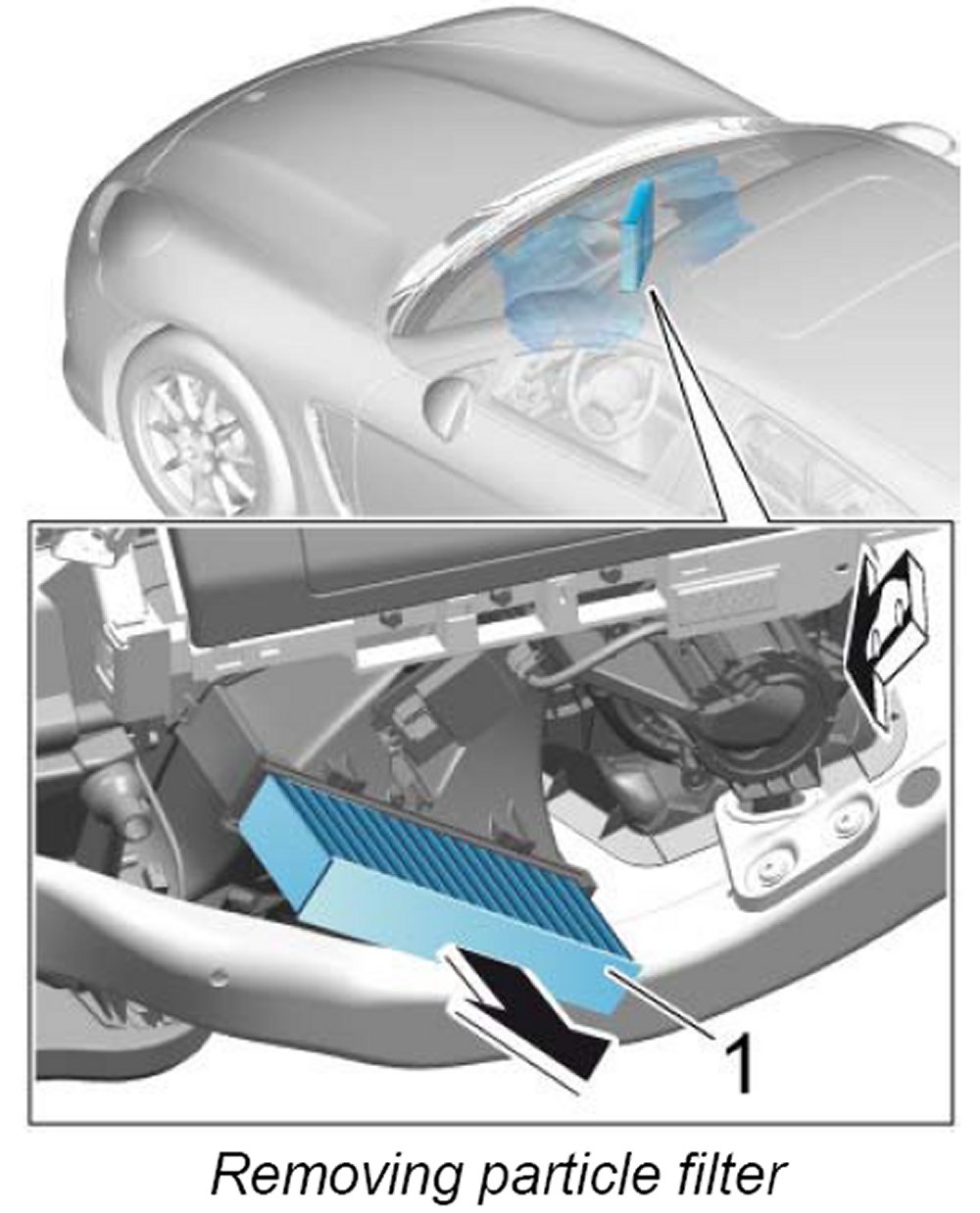

2. Pull out particle filter -1-



Installing Particle Filter

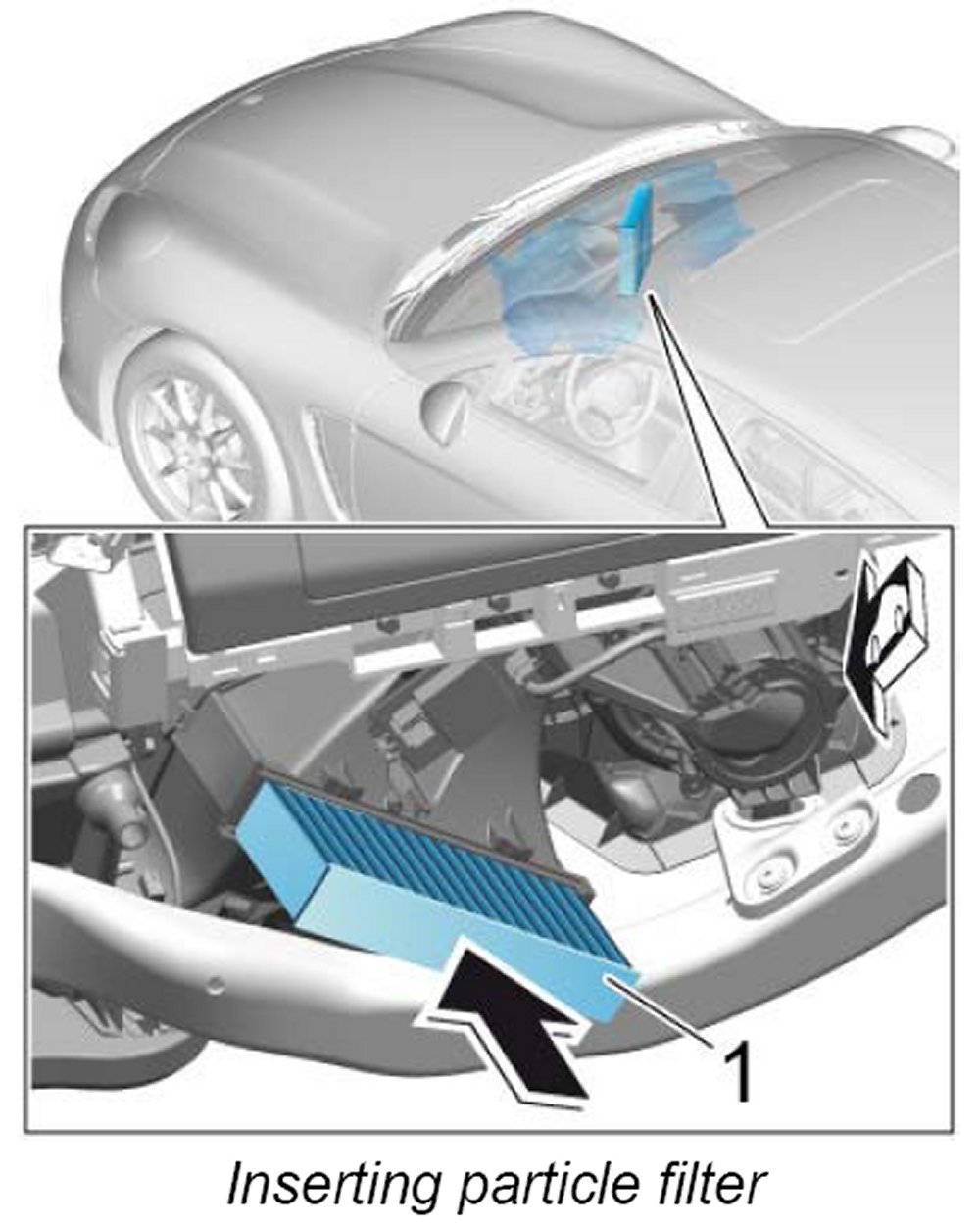

1. Push particle filter -1- into the particle filter housing.


INFORMATION
When inserting the cover, make sure that the cover engages into all the brackets.

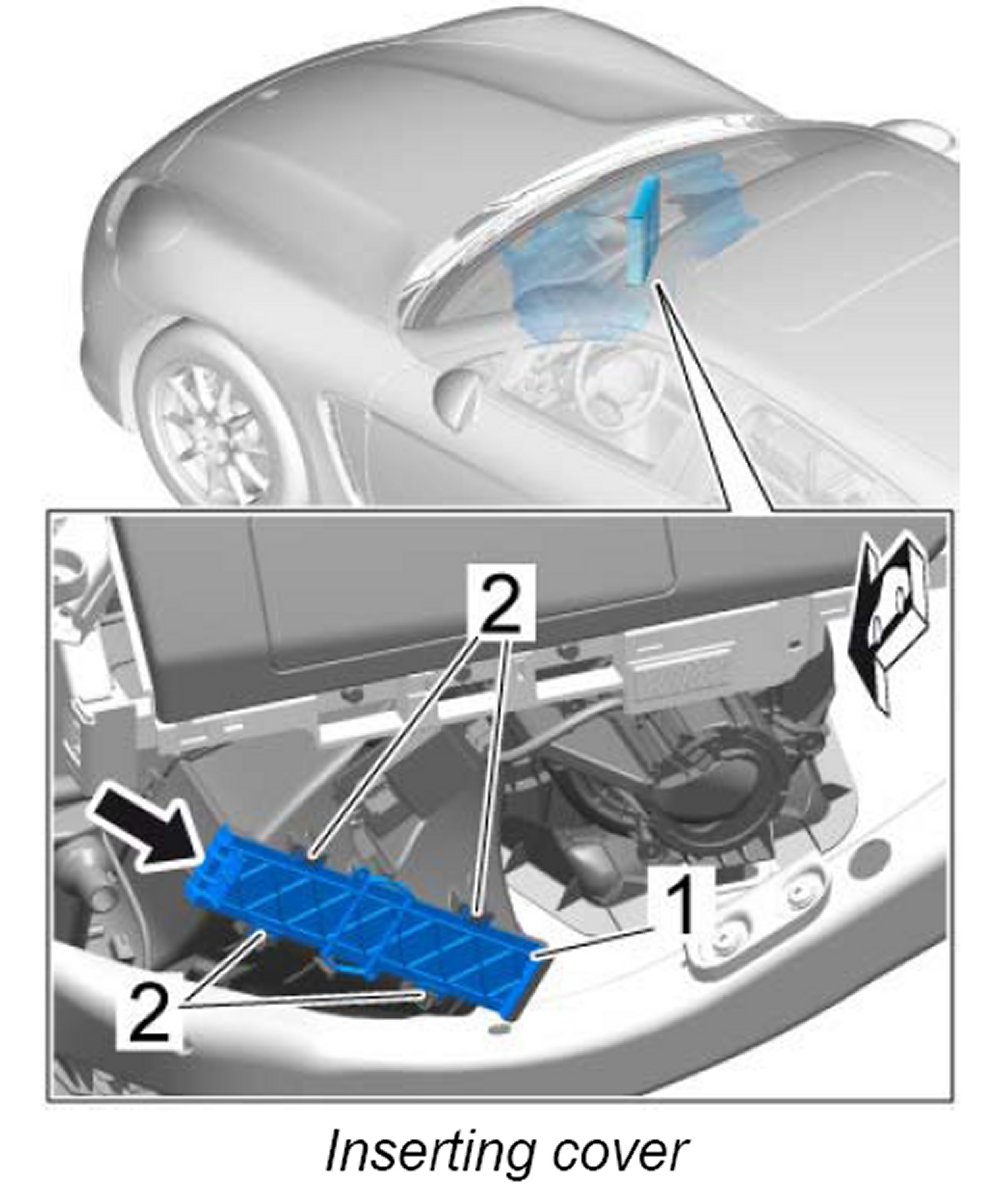

2. Insert cover for particle filter -1- all the way into the brackets -2-.


Subsequent Work

1. Install cover in passenger's side footwell.
