Body Emblem: Service and Repair

WM 660719 Removing and installing front logo

Preliminary work

1. Remove upper part of lid lock. -> 551819 Removing and installing upper part of front lid lock

Removing and installing front logo

Removing front logo

1. Screw off speed nuts -3-.

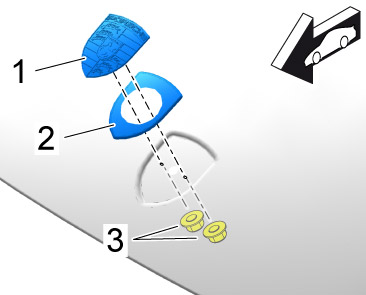

Removing logo and support

2. Remove the logo -1- and support -2-.

Installing front logo

Information

The fastening nuts for the logo must always be replaced.

1. Position the logo -1- and support -2-.





Fitting logo and support

2. Replace fastening nuts -3-.
3. Tighten fastening nuts -3-.

Subsequent work

1. Install upper part of lid lock. -> 551819 Removing and installing upper part of front lid lock
