Home
>>
Porsche
>>
2012
>>
911 Turbo AWD (997) F6-3.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Exhaust Temperature Sensor

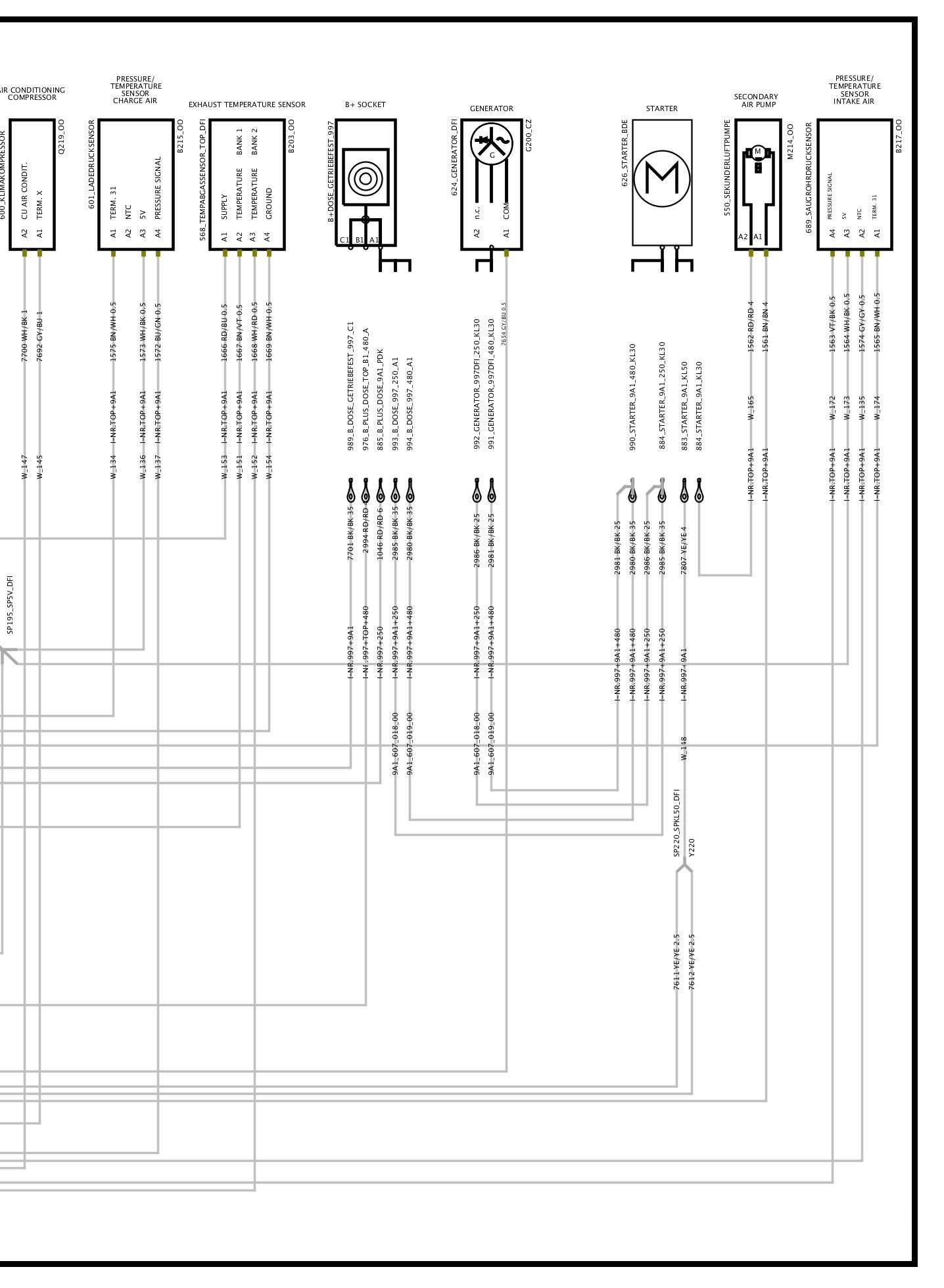

Exhaust Temperature Sensor

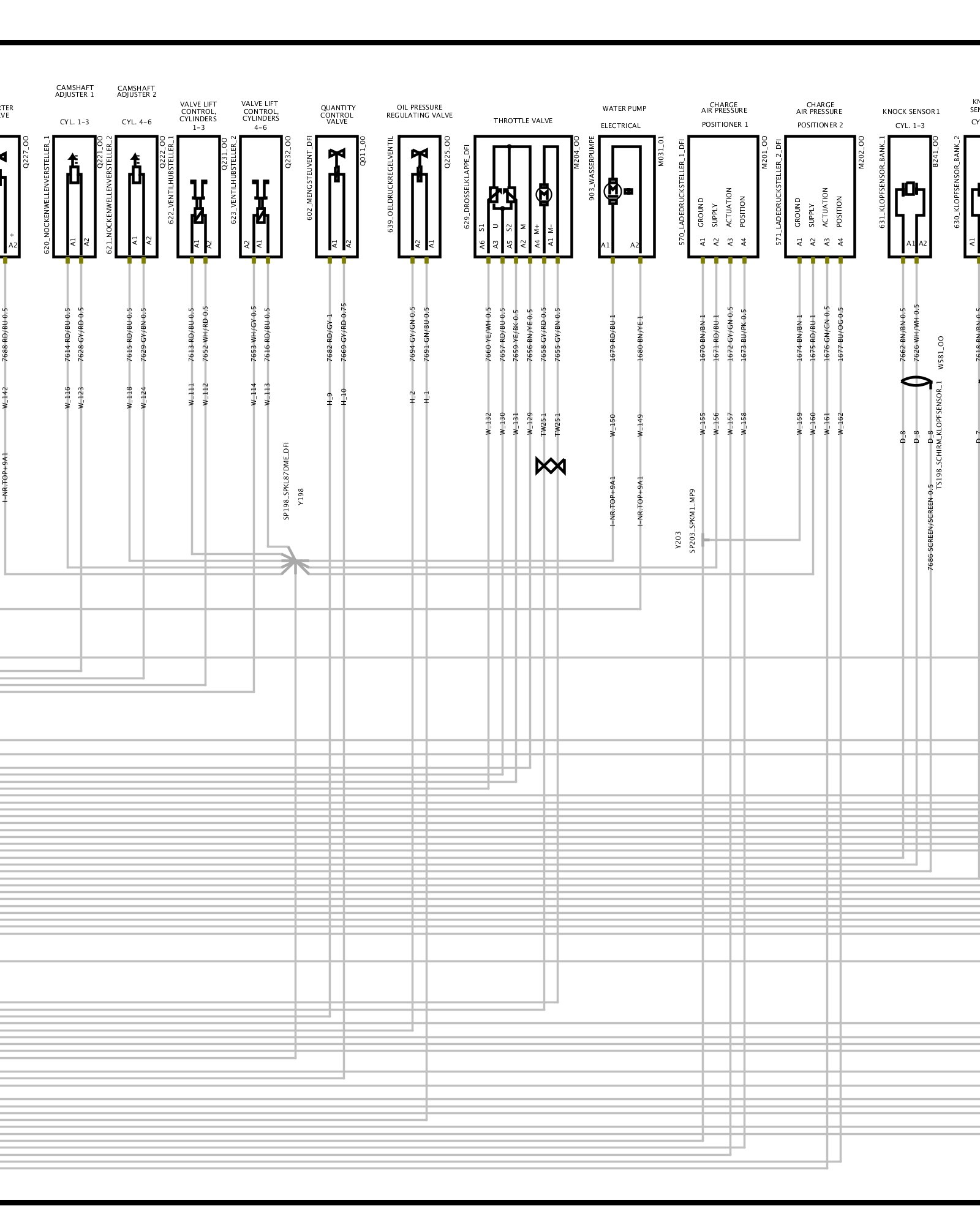

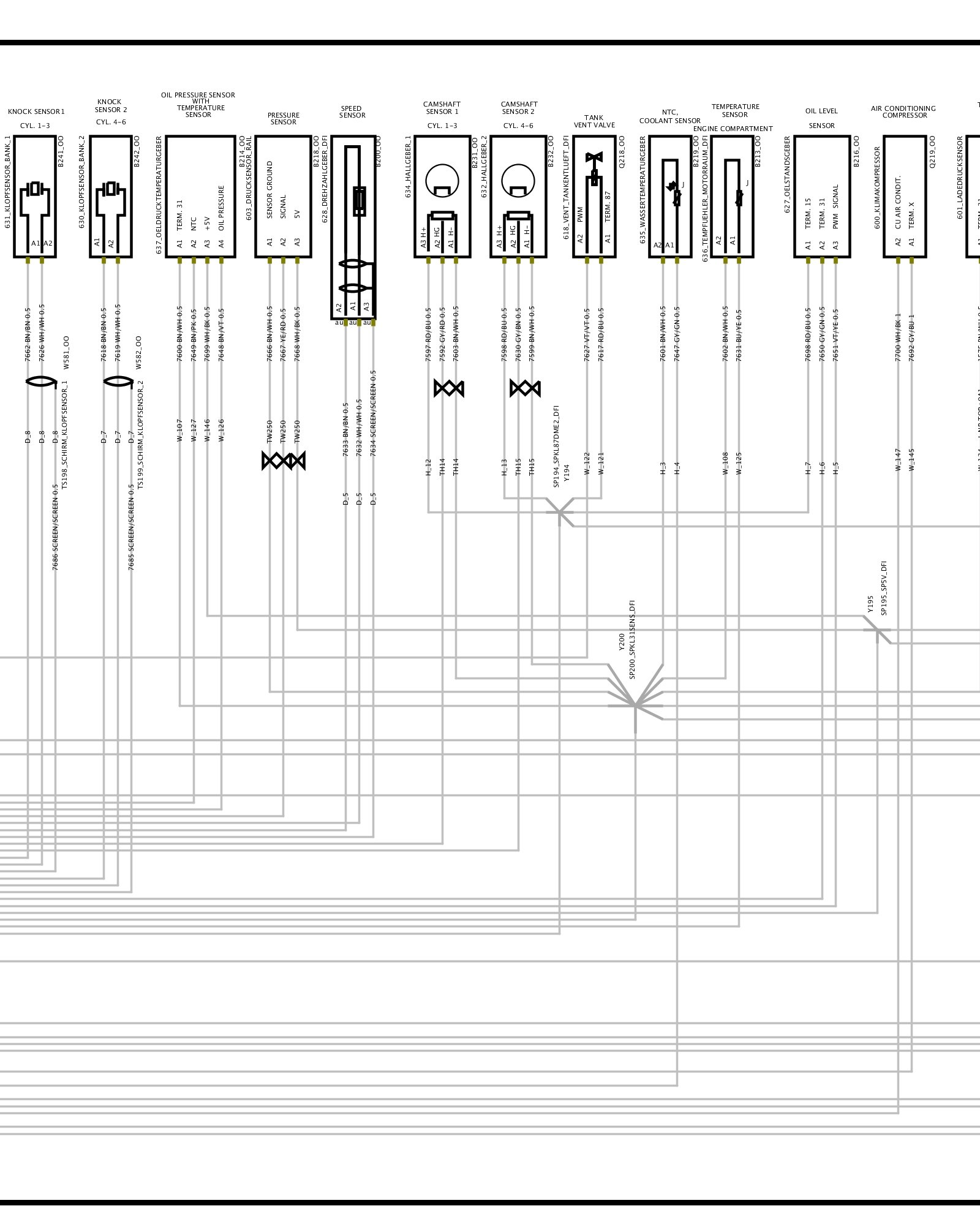

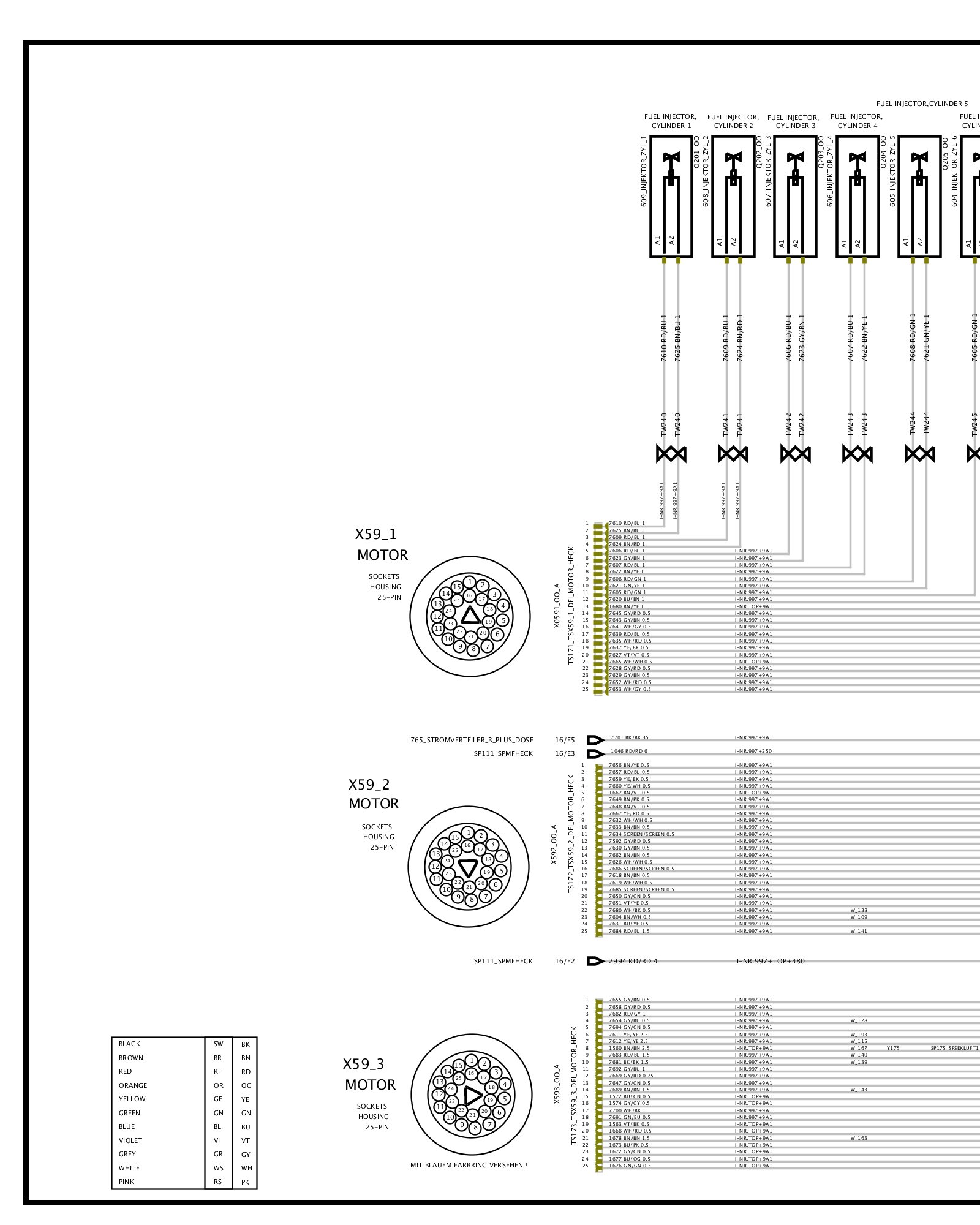

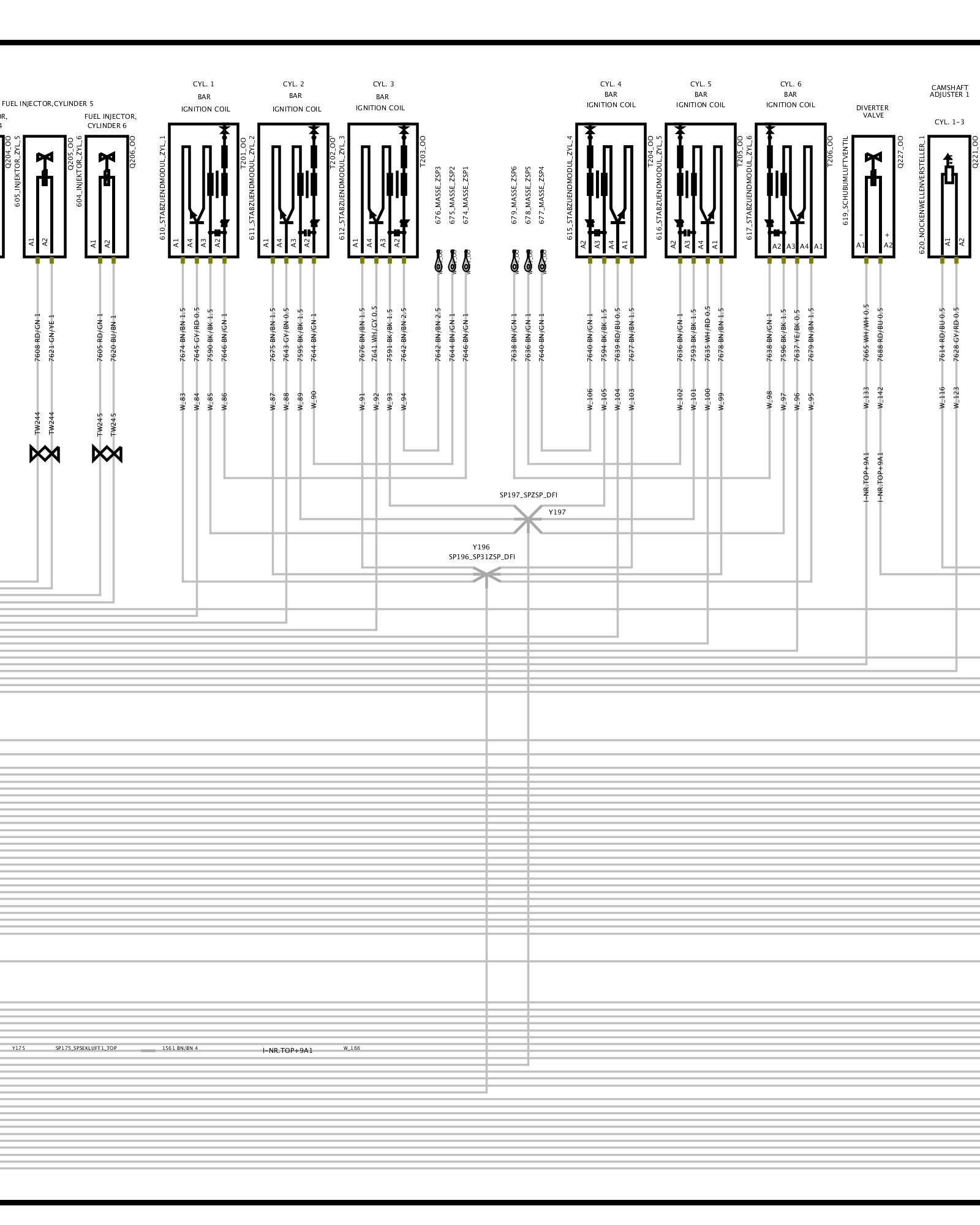

(71G) Engine Wire Harness
