Rear Fender Liner: Service and Repair

WM 536919 Removing and installing rear wheel housing liner

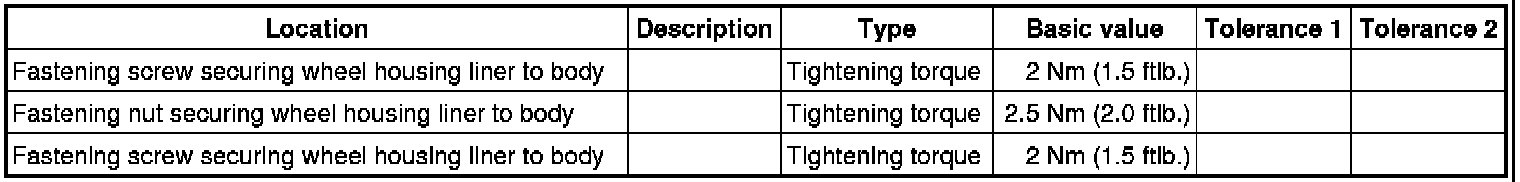

Technical values





Preliminary work

Preliminary work

1. Remove wheel. -> 440519 Removing and installing wheel - section on "Removing"

Removing rear wheel housing liner

Removing rear wheel housing liner - rear section

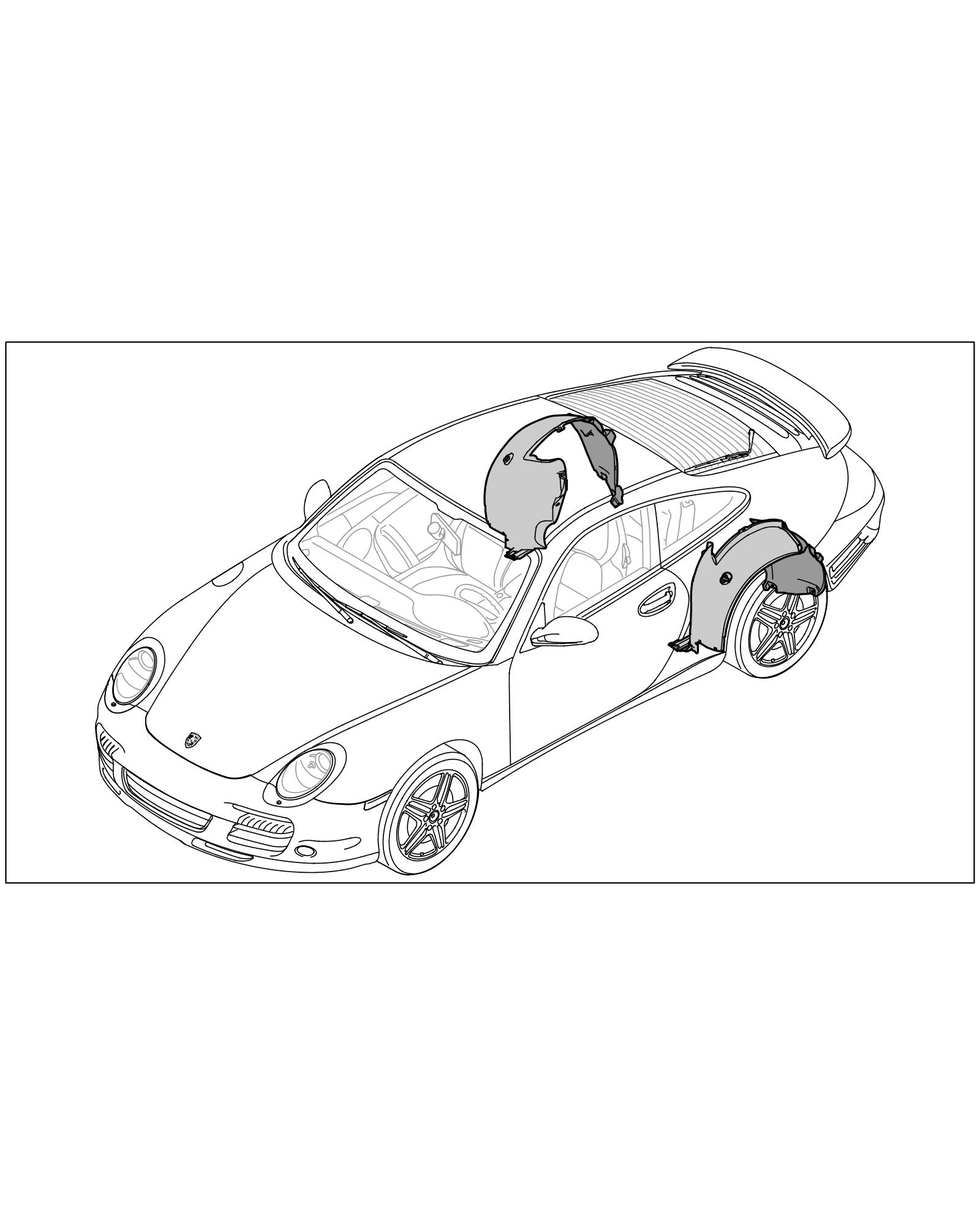

Installation position of rear wheel housing liner

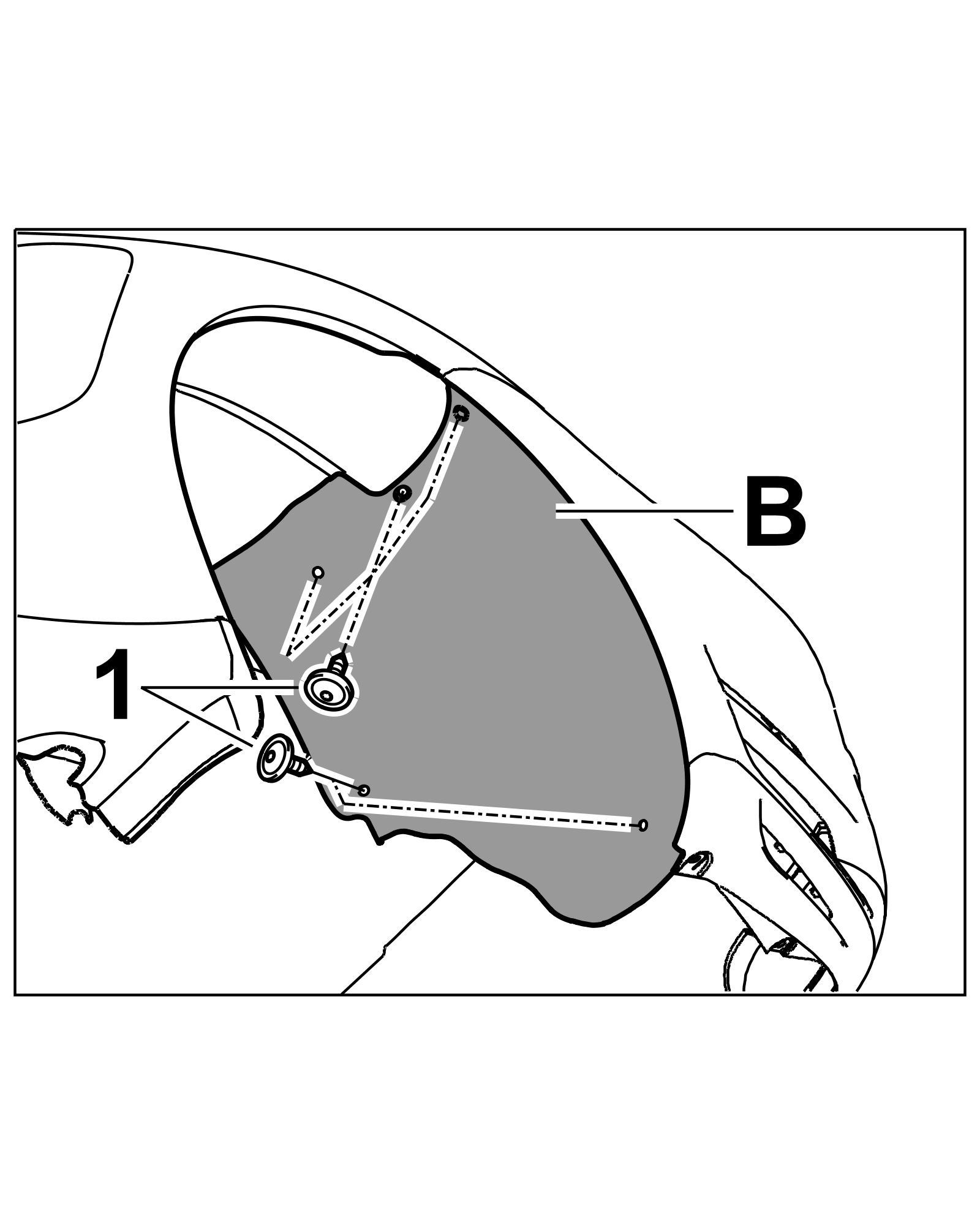

1. Unscrew fastening screws -1- and remove rear section of wheel housing liner -B-.





Removing rear wheel housing liner - rear section

Removing rear wheel housing liner - front section





Installation position of rear wheel housing liner

Information

Fastening nuts cannot be used again following removal.

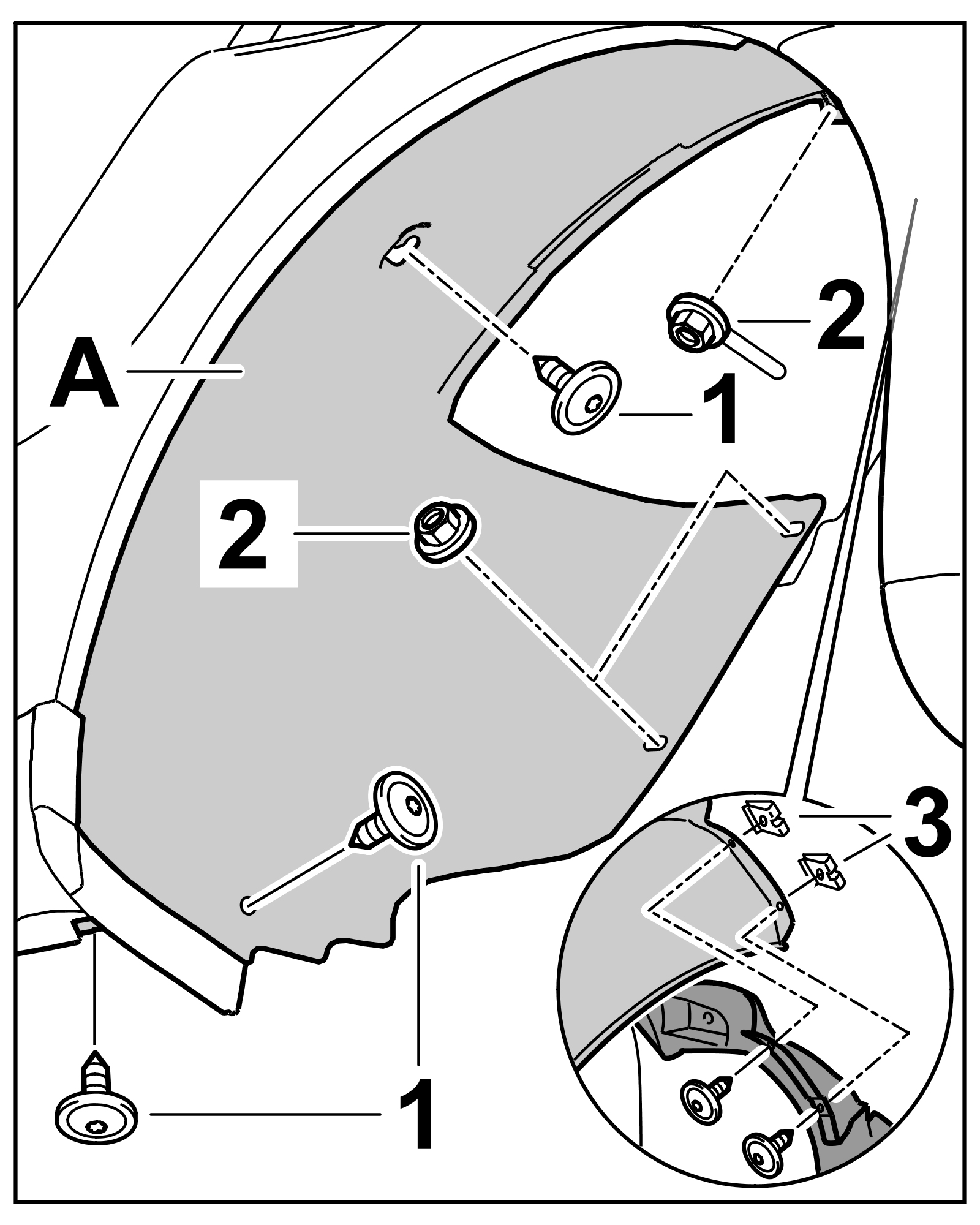

1. Unscrew fastening screws -1- and fastening nuts -2- and remove front section of wheel housing liner -A-.





Removing rear wheel housing liner - front section
2. Check speed nuts -3- and replace them if necessary.

Installing rear wheel housing liner

Installing rear wheel housing liner - front section





Installation position of rear wheel housing liner
1. Press speed nuts -3- onto the front section of the wheel housing liner -A-.





Installing rear wheel housing liner - front section
2. Insert front section of wheel housing liner -A- and secure with fastening screws -1- and fastening nuts -2-. -> Tightening torque: 2 Nm (1.5 ftlb.) -> Tightening torque: 2.5 Nm (2.0 ftlb.)

Installing rear wheel housing liner - rear section





Installation position of rear wheel housing liner
1. Insert rear section of wheel housing liner -B- and secure with fastening screws -1-. -> Tightening torque: 2 Nm (1.5 ftlb.)





Installing rear wheel housing liner - rear section

Subsequent work

Subsequent work

1. Install wheel. -> 440519 Removing and installing wheel - section on "Installing"

-------------------------------------------------------------------------------
