Rear Fender Liner: Service and Repair

WM 536919 Removing and installing rear wheel housing liner

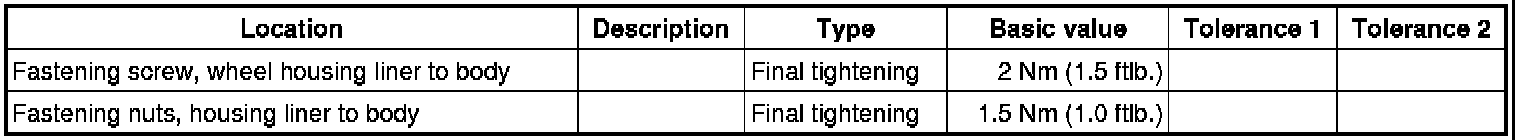

Technical values





Preliminary work

Preliminary work

1. Remove wheel. -> 440519 Removing and installing wheel - section on "Removing"

Removing rear wheel housing liner

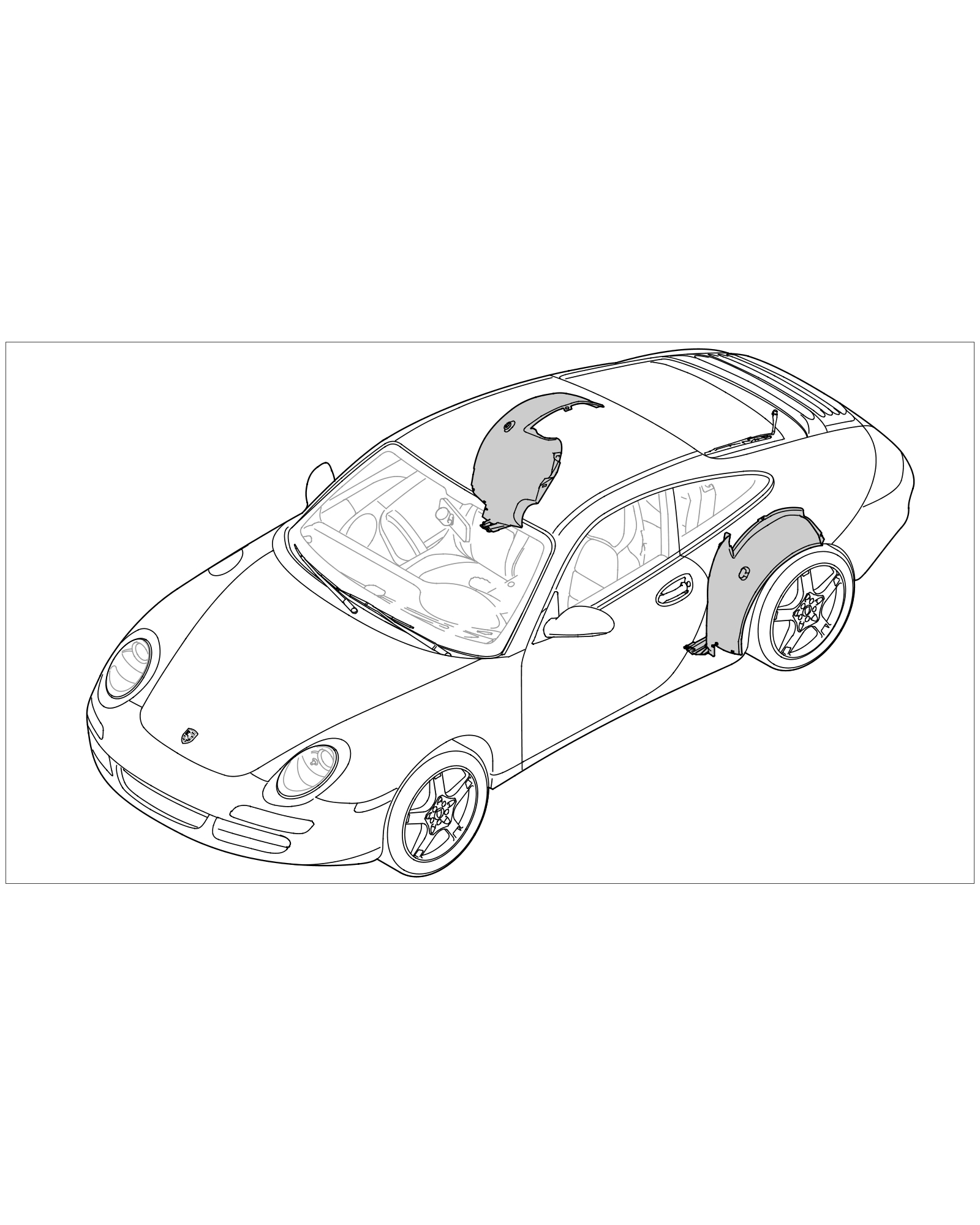

Removing rear wheel housing liners





Installation position of rear wheel housing liner

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -1- and fastening nuts -2-.

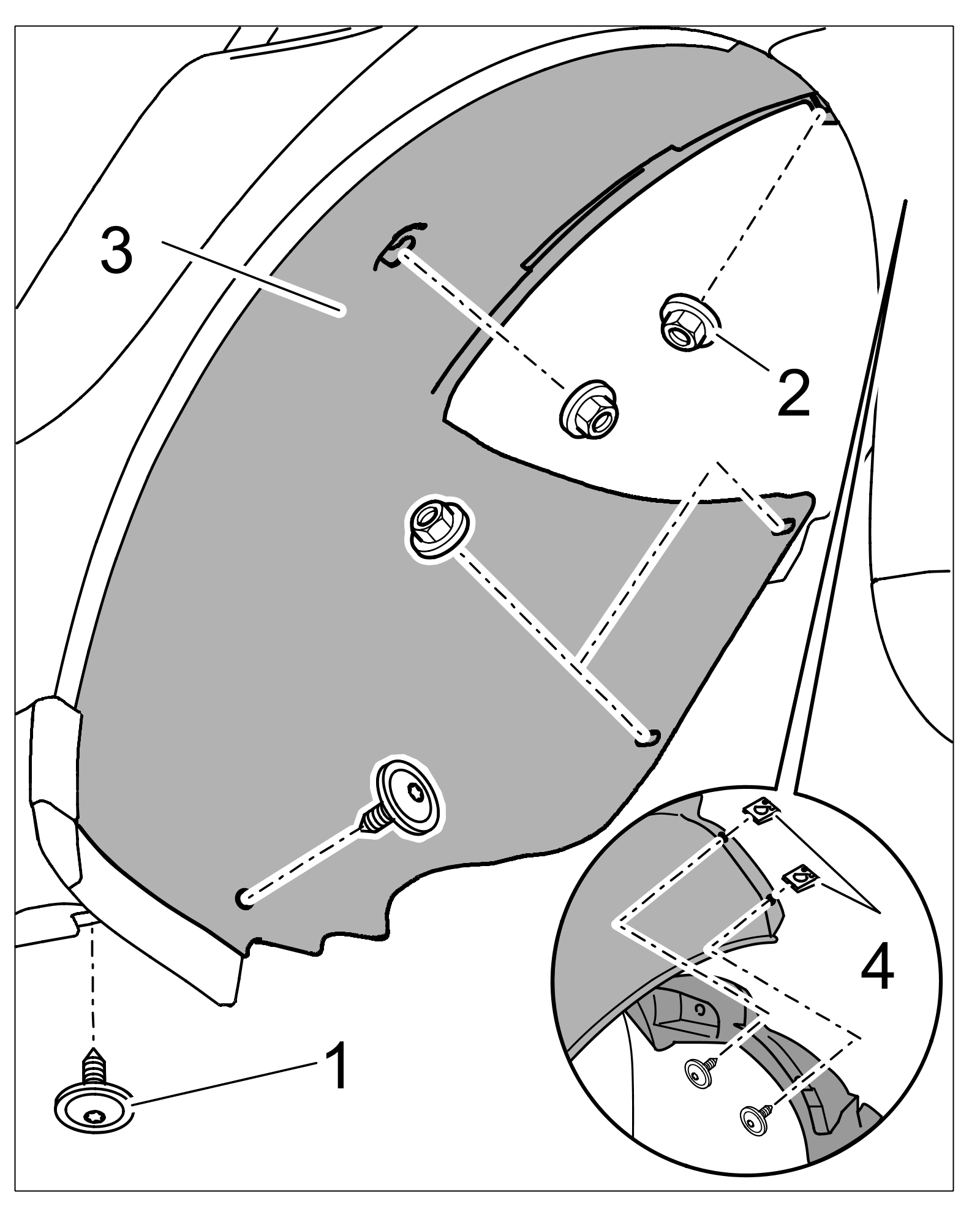

Removing wheel housing liner
2. Remove wheel housing liner -3-.
3. Check fastening nuts -4- and replace if necessary.

Installing rear wheel housing liner

Installing rear wheel housing liner





Installation location of rear wheel housing liner
1. Press fastening nuts -4- into the wheel housing liner -3-.
2. Insert wheel housing liner -3-.





Install wheel housing liner
3. Screw in fastening screws -1- and tighten to the specified tightening torque-> Final tightening: 2 Nm (1.5 ftlb.).
4. Screw on fastening nuts -2- and tighten to the specified tightening torque-> Final tightening: 1.5 Nm (1.0 ftlb.).

Subsequent work

Subsequent work

1. Install wheel. -> 440519 Removing and installing wheel - section on "Installing"

-------------------------------------------------------------------------------

997110, 997111, 997120, 997121, 997140, 997141, 997150, 997151, 997160, 997161, 997170, 997310, 997311, 997320, 997321, 997350, 997351, 997360, 997361, 997370, 997410, 997411, 997420, 997421, 997430, 997431, 997450, 997451, 997460, 997461, 997510, 997511, 997520, 997521, 997560, 997561, 997610, 997611, 997620, 997621, 997630, 997631, 997650, 997651, 997660, 997661, 997720, 997721, 997810, 997811, 997830, 997840, 997841, 997850, 997851, 997860, 997861

Model year as of 2005
C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C45, C46, C96, C97, C98, C99
