Rear Fender Liner: Service and Repair

WM 536919 Removing and installing rear wheel housing liner

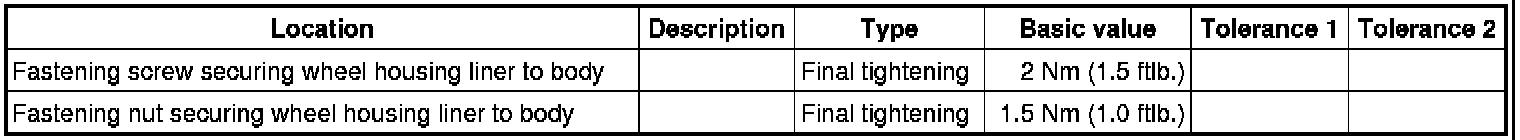

Technical values





Preliminary work

Preliminary work

1. Remove wheel. -> 440519 Removing and installing wheel - section on "Removing"

Removing rear wheel housing liner

Removing rear wheel housing liner

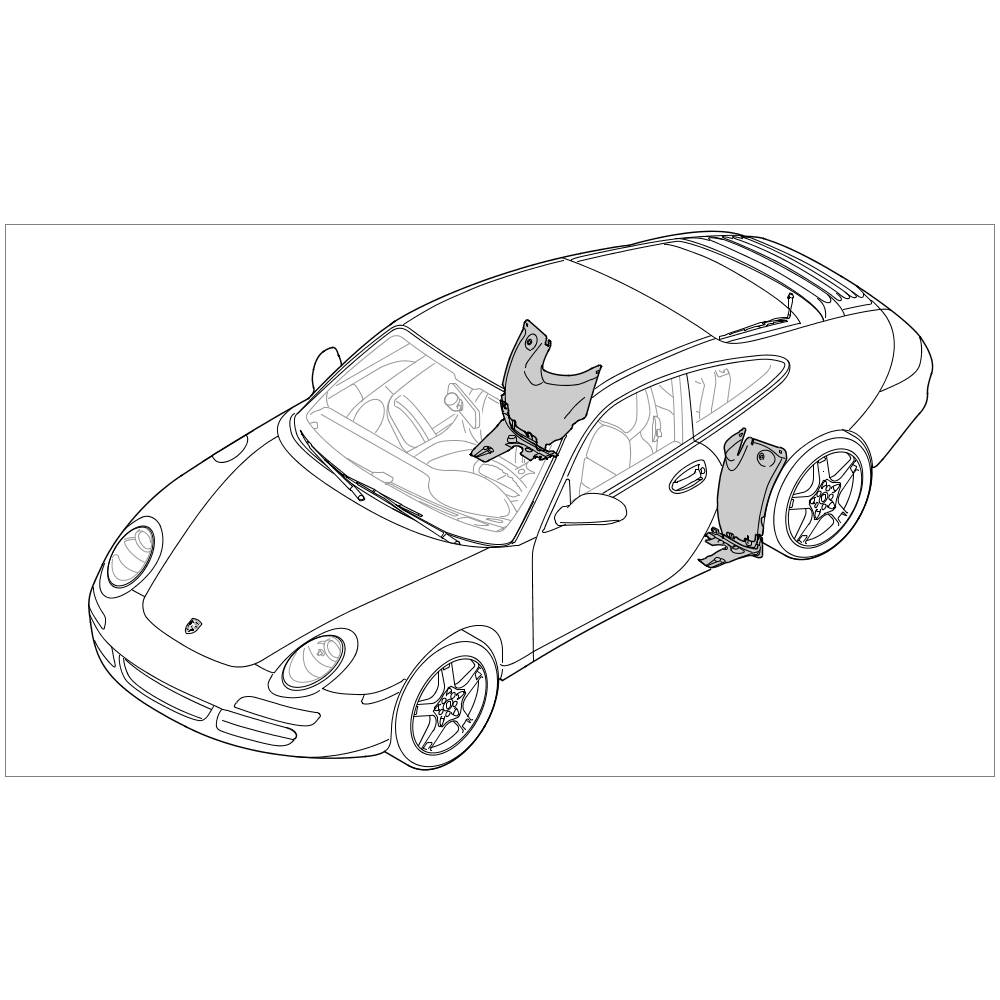

Overview, removing and installing rear wheel housing liner

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -1- and fastening nuts -2-.

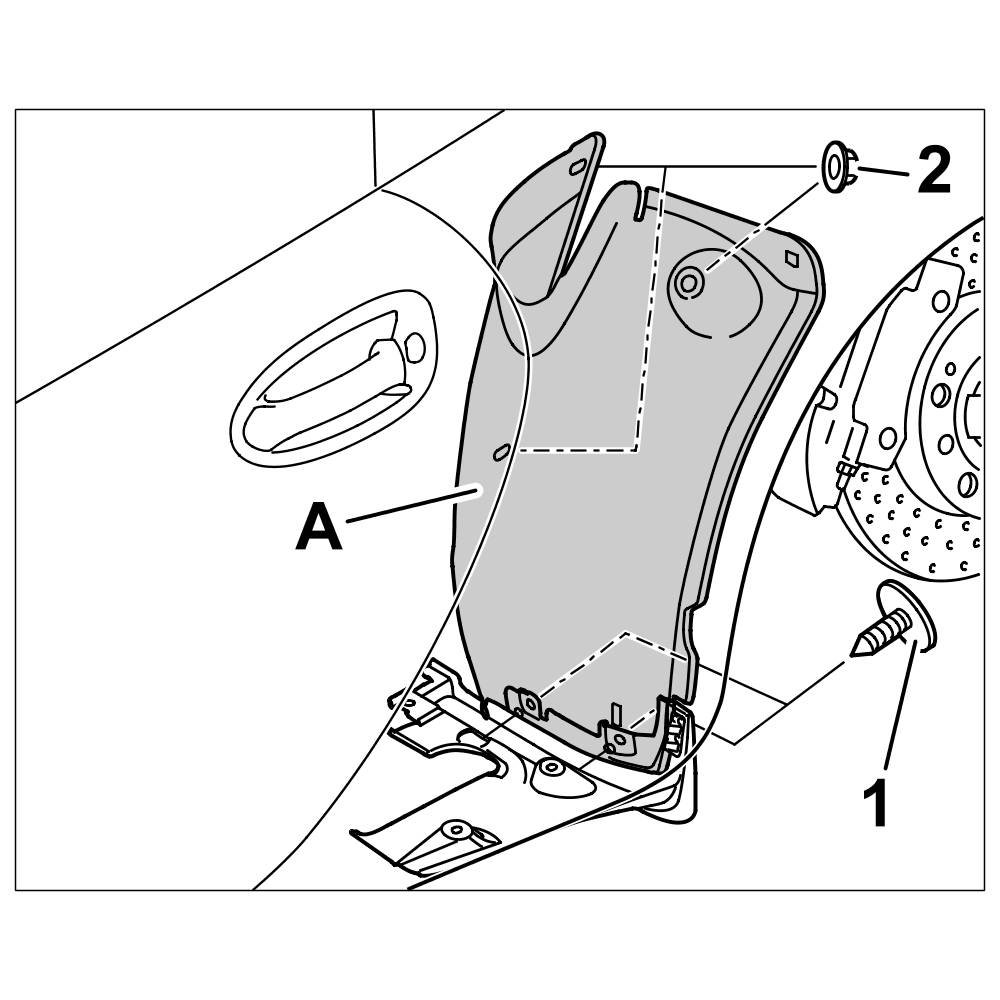

Releasing wheel housing liner
2. Remove wheel housing liner -A-.

Installing rear wheel housing liner

Installing rear wheel housing liner





Overview, removing and installing rear wheel housing liners
1. Insert wheel housing liner -A-.





Install wheel housing liner
2. Screw in fastening screws -1- and tighten them to the specified tightening torque-> Final tightening: 2 Nm (1.5 ftlb.).
3. Screw on fastening nuts -2- and tighten them to the specified tightening torque-> Final tightening: 1.5 Nm (1.0 ftlb.).

Subsequent work

Subsequent work

1. Install wheel. -> 440519 Removing and installing wheel - section on "Installing"

-------------------------------------------------------------------------------

997110, 997111, 997120, 997121, 997140, 997141, 997150, 997151, 997160, 997161, 997170, 997310, 997311, 997320, 997321, 997350, 997351, 997360, 997361, 997370, 997410, 997411, 997420, 997421, 997430, 997431, 997450, 997451, 997460, 997461, 997510, 997511, 997520, 997521, 997560, 997561, 997610, 997611, 997620, 997621, 997630, 997631, 997650, 997651, 997660, 997661, 997720, 997721, 997810, 997811, 997830, 997840, 997841, 997850, 997851, 997860, 997861

Model year as of 2005
C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C45, C46, C96, C97, C98, C99
