Boxster S (987) F6-3.4L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Diagrams
>>

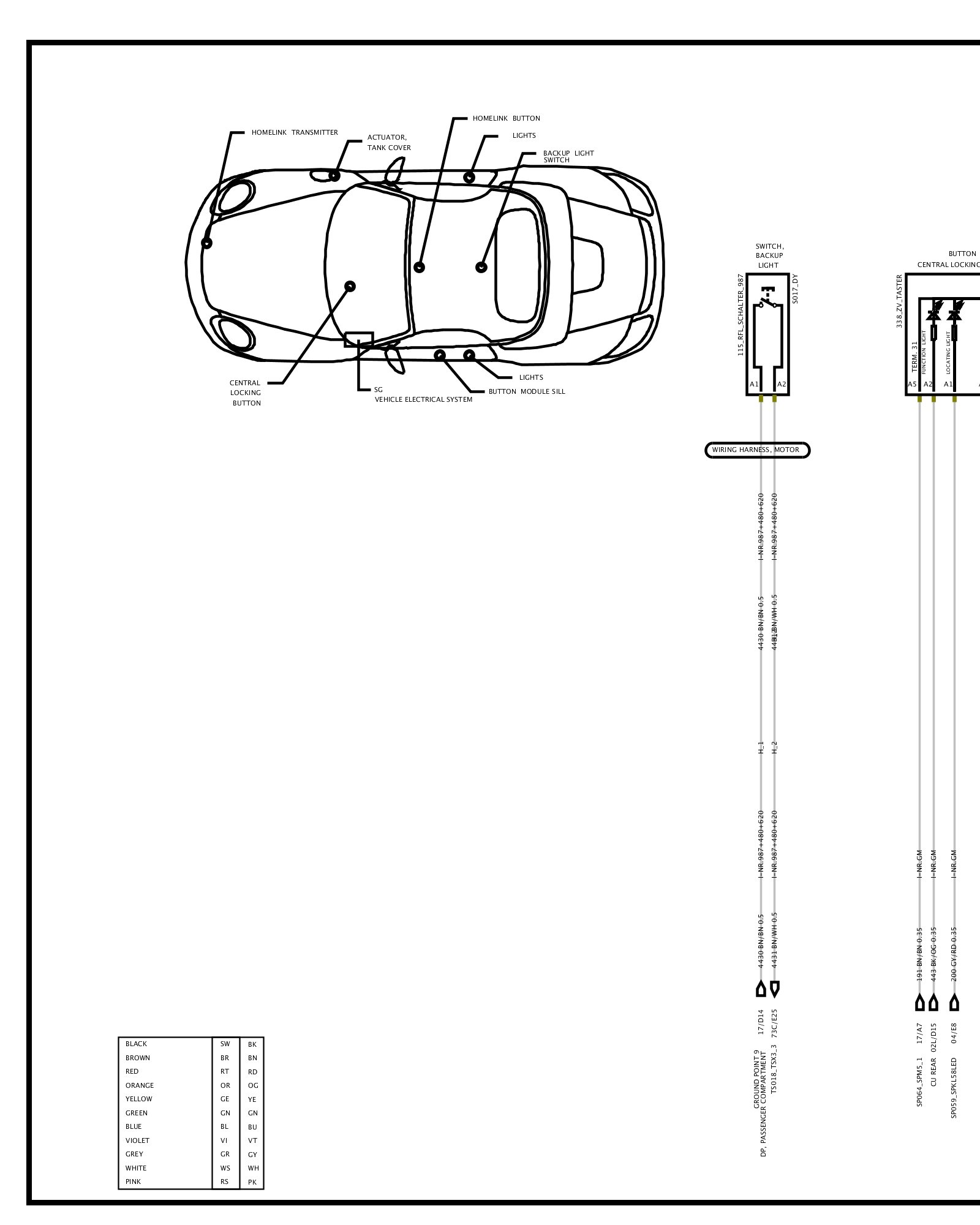

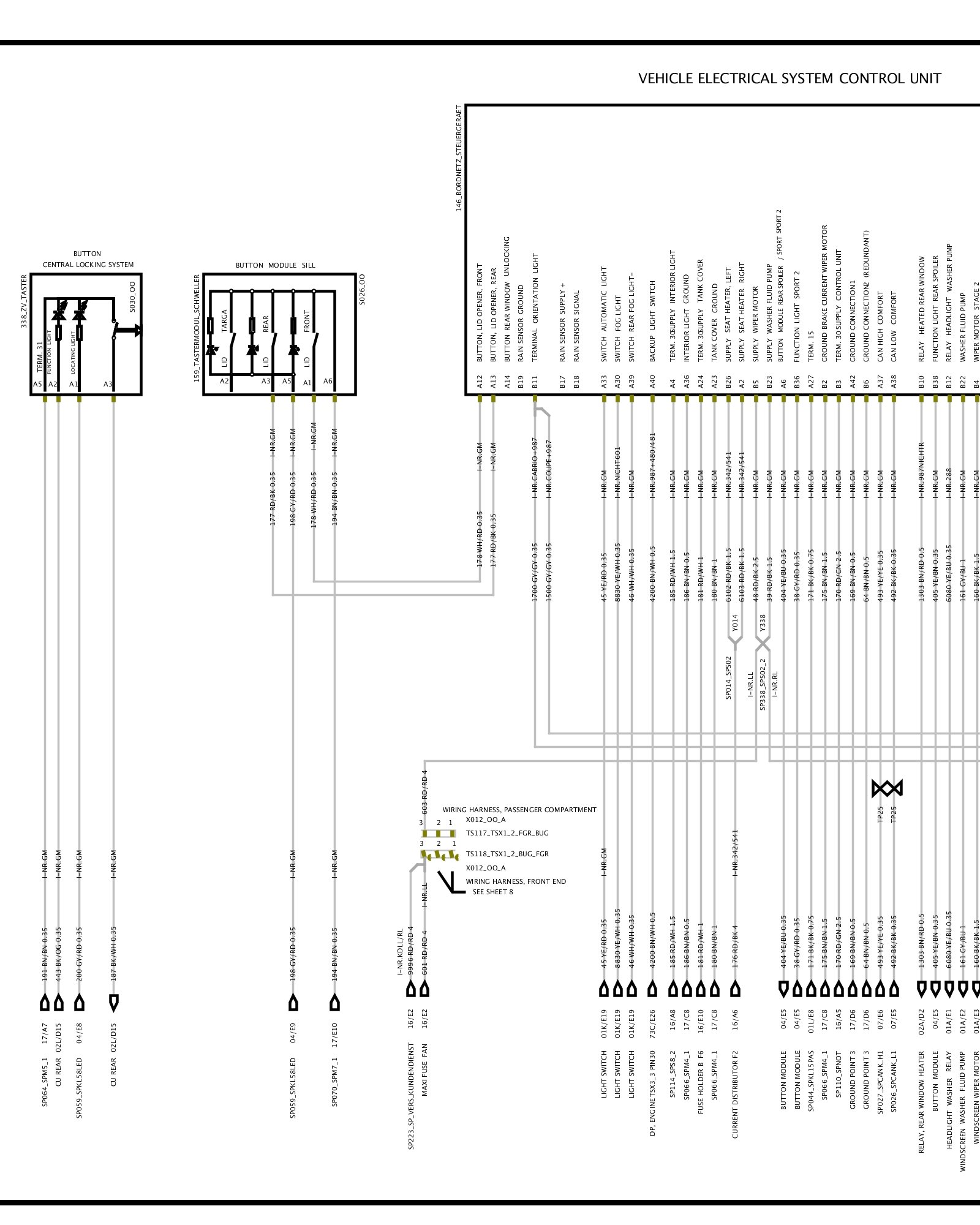

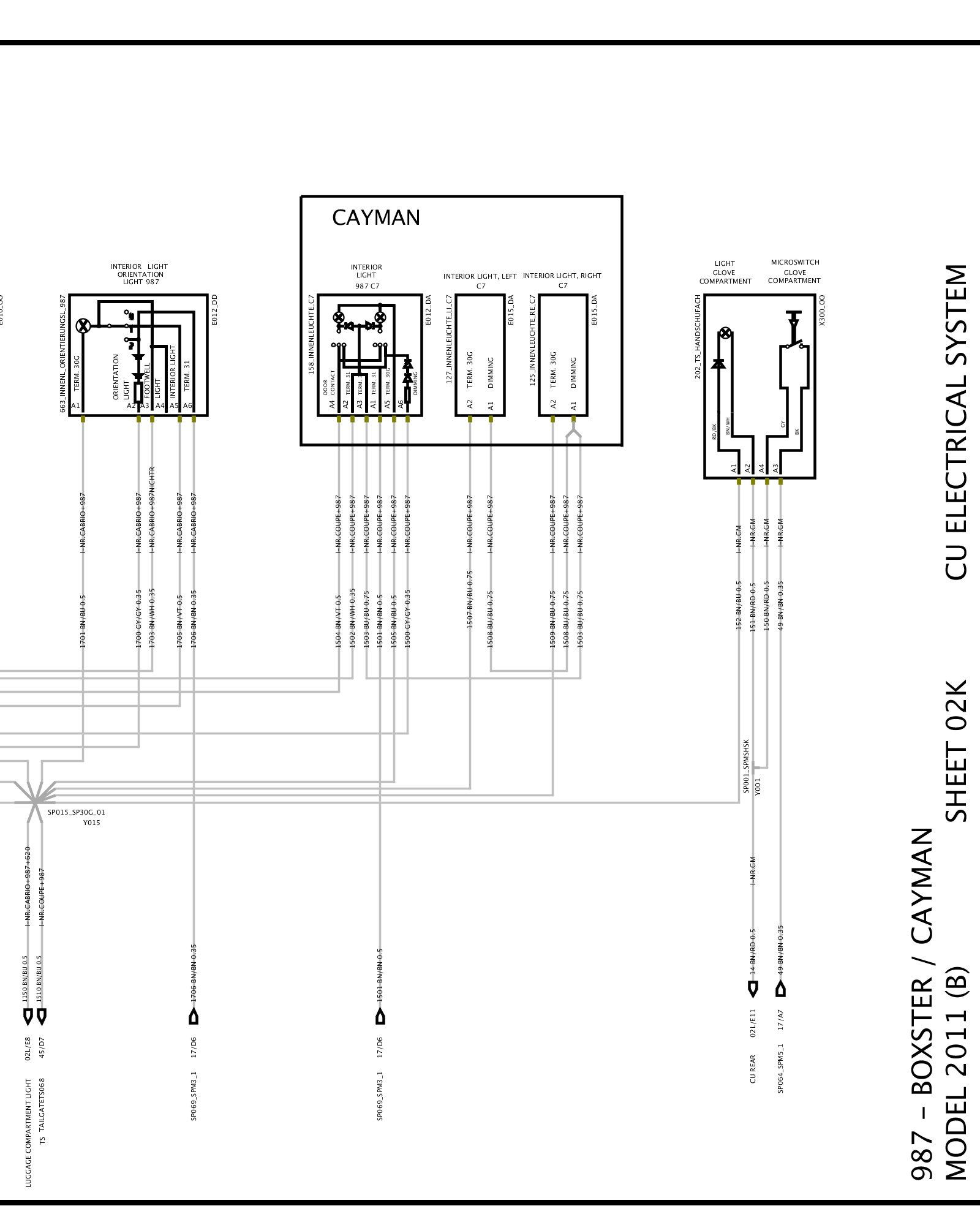

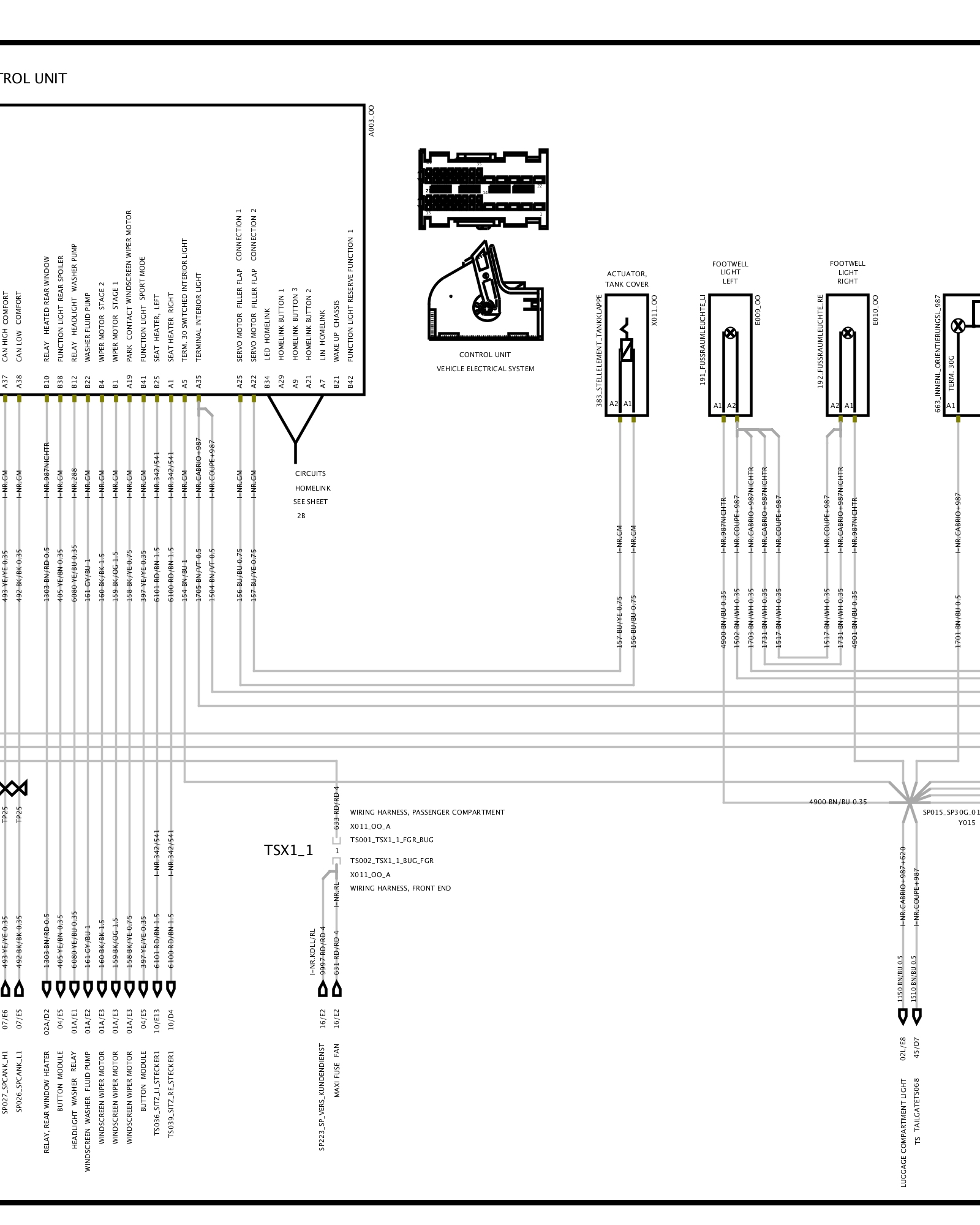

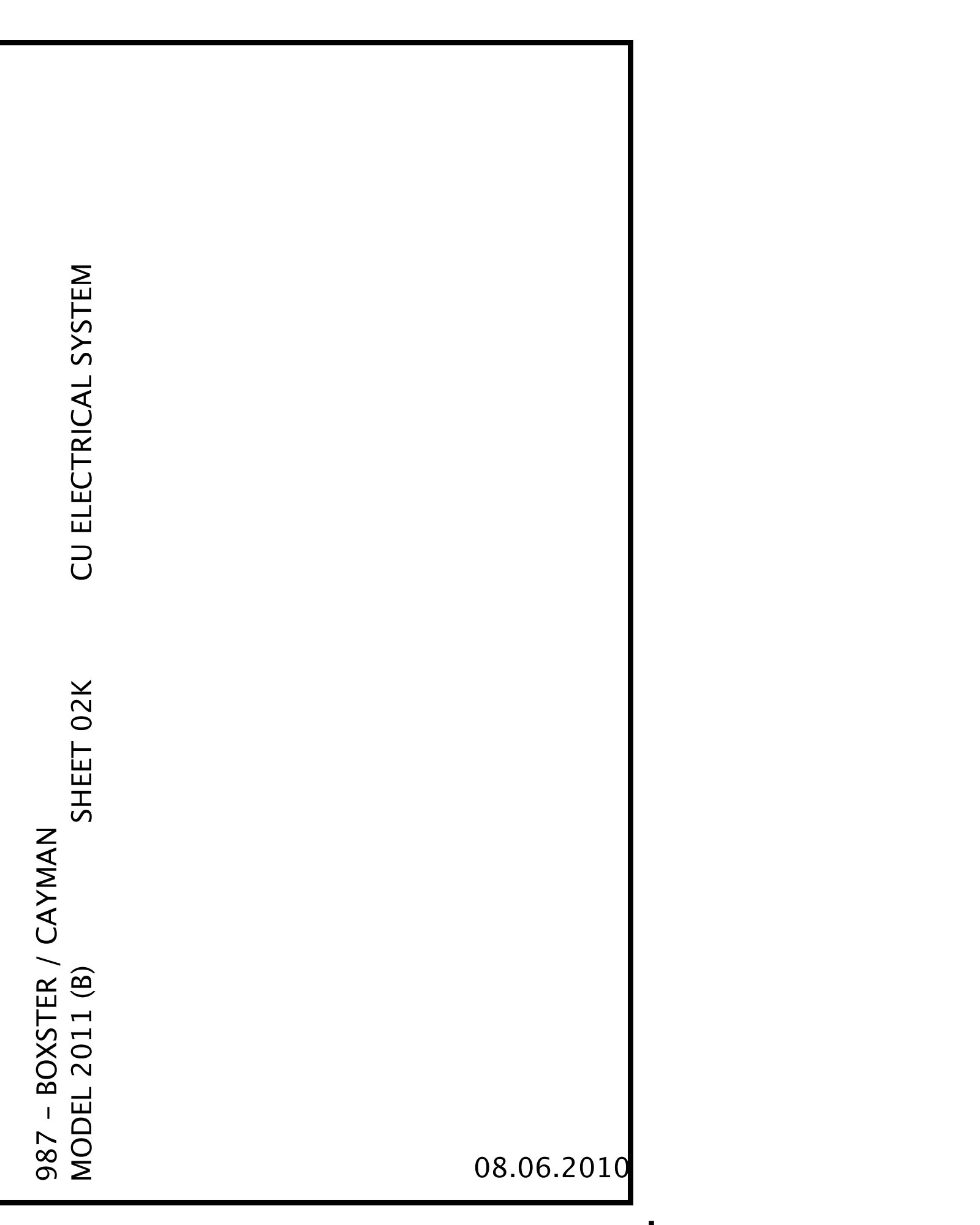

CU Electrical System - Sheet 02K
CU Electrical System - Sheet 02K
CU Electrical System - Sheet 02K
