Multiple Junction Connector
>>

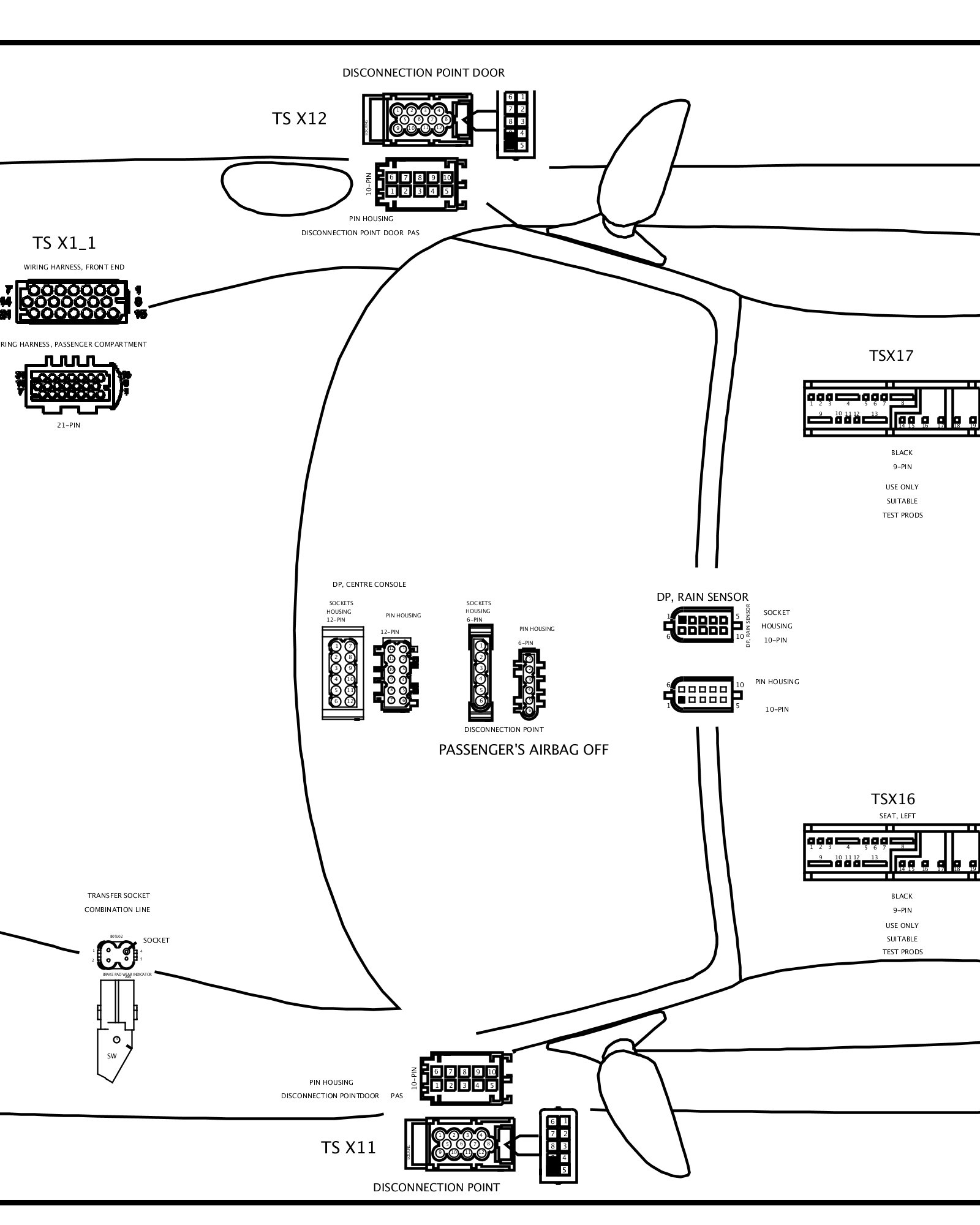

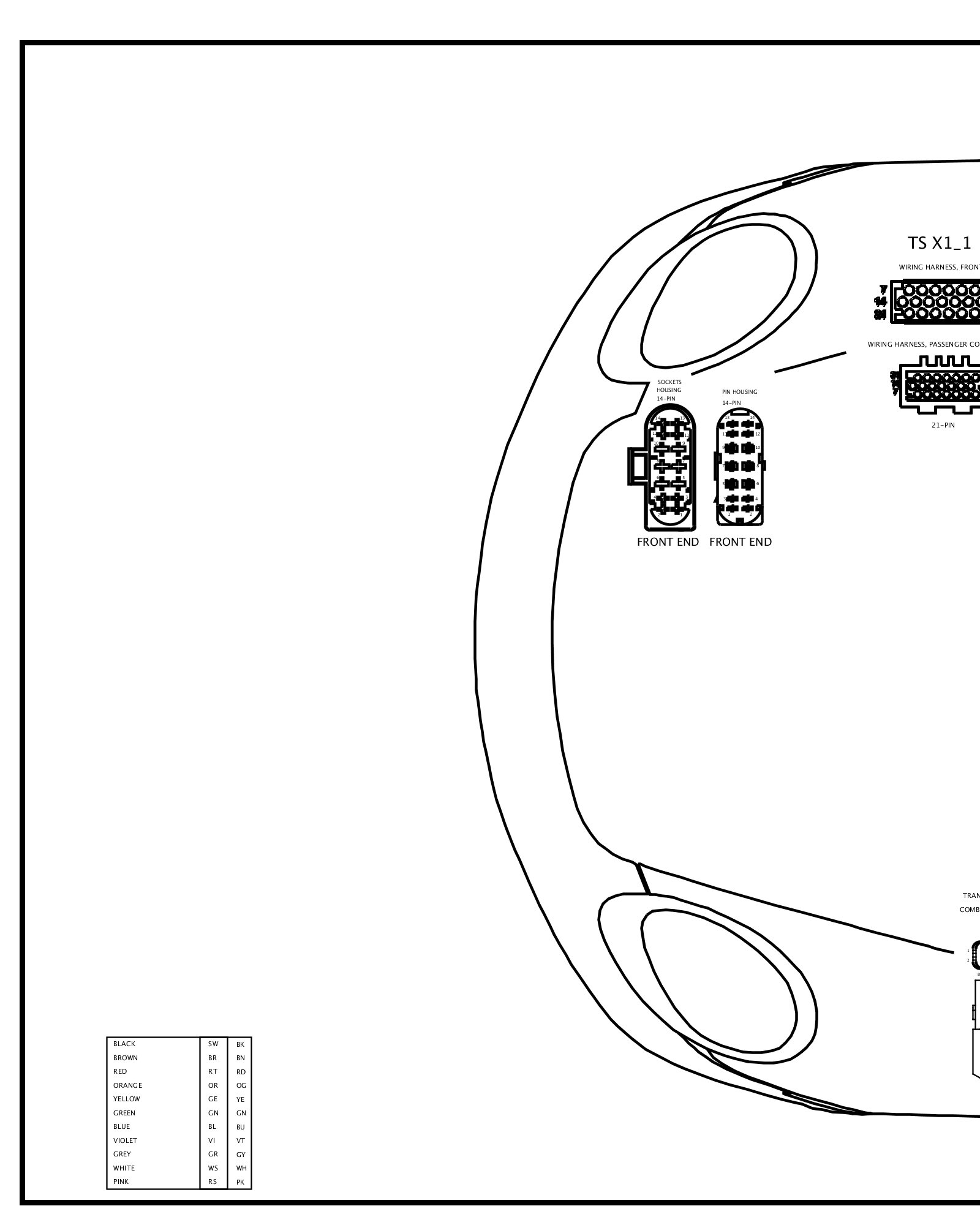

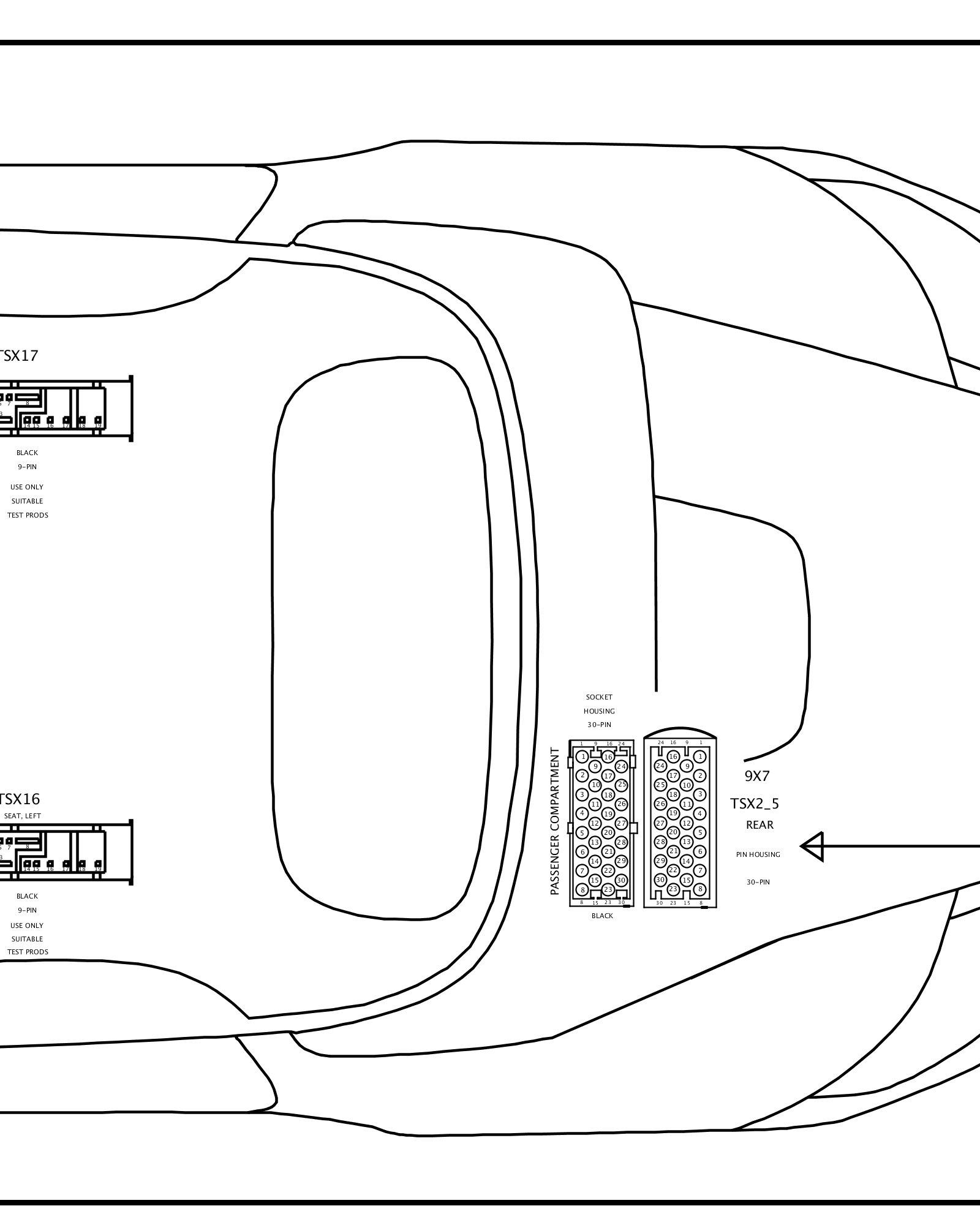

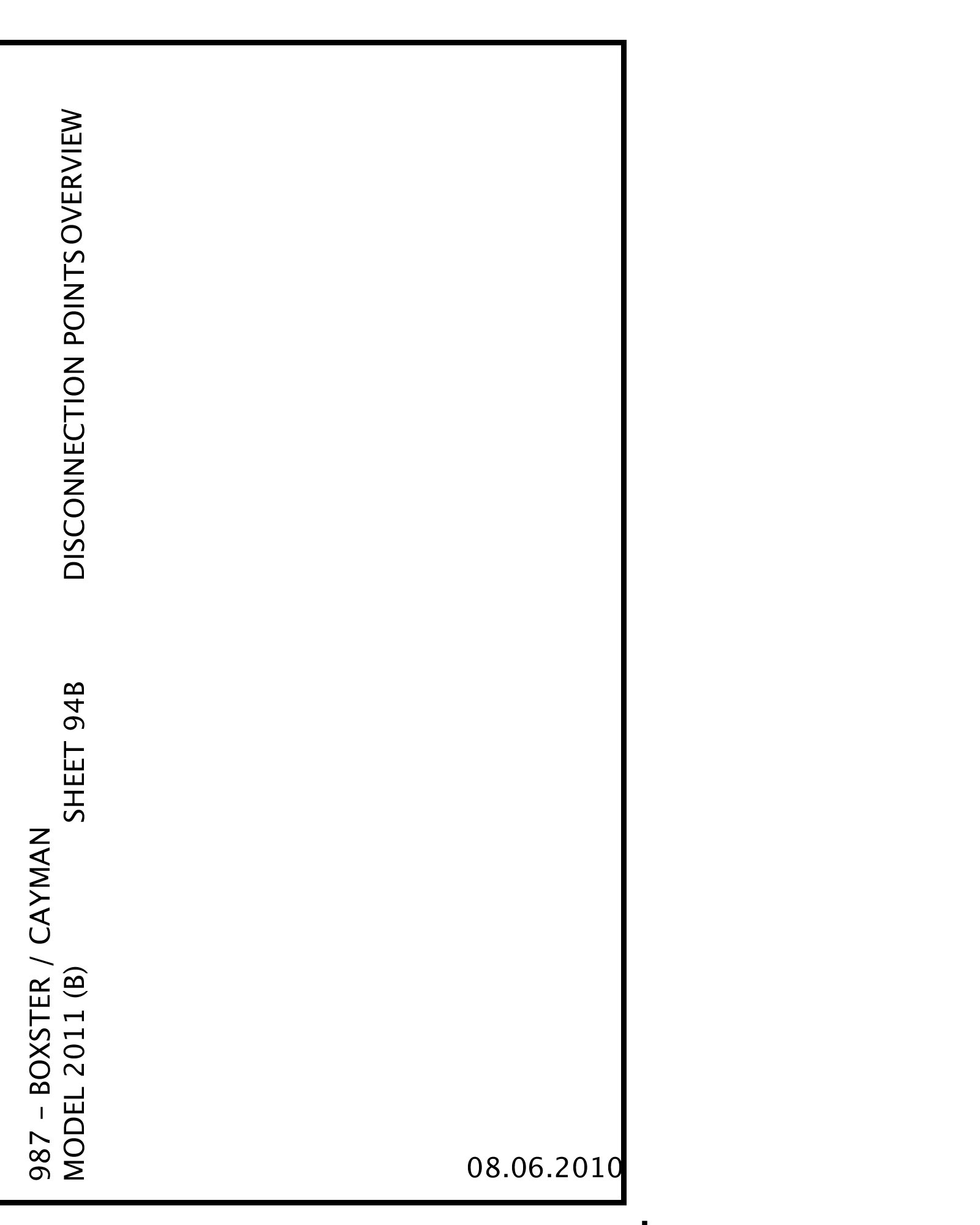

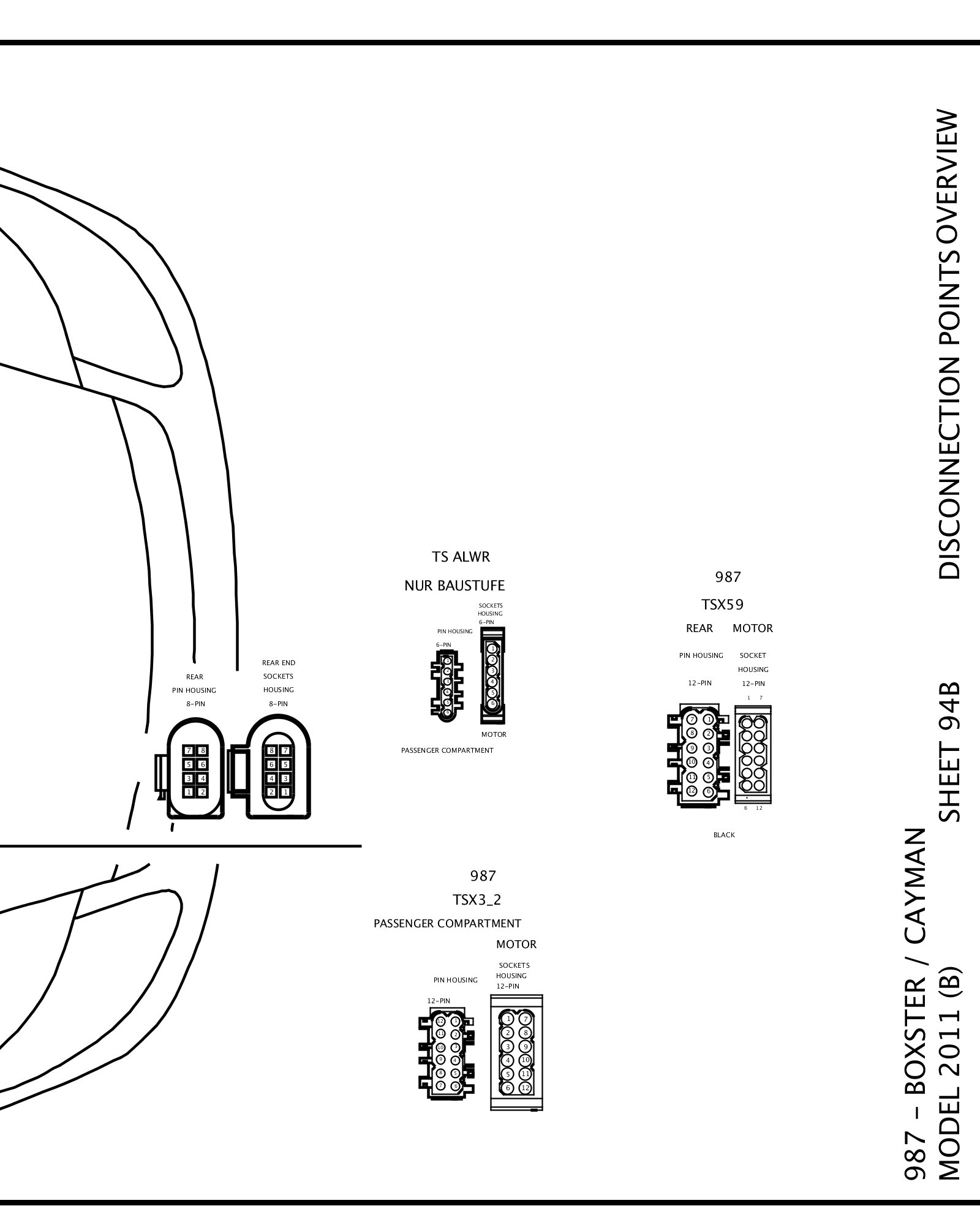

Disconnection Points Overview - Sheet 94B
Disconnection Points Overview - Sheet 94B
Disconnection Points Overview - Sheet 94B
