Fluid Line/Hose: Service and Repair

WM 386219 Removing and installing line for ATF cooling

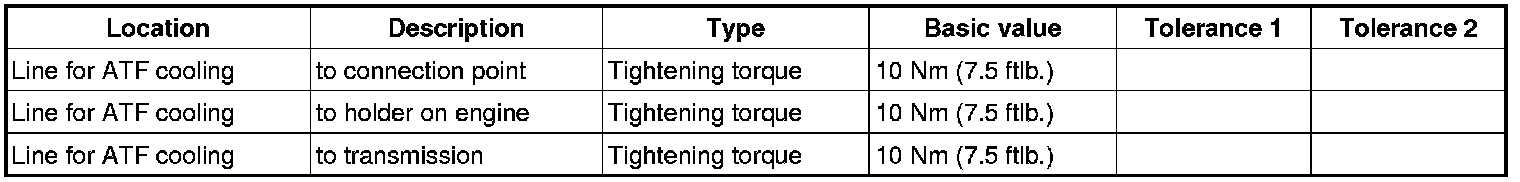

Technical values





Preliminary work for line for ATF cooling

1. Remove engine and transmission. -> 100119 Removing and installing engine - section on "Removing" 100119 Removing and installing engine

Removing line for ATF cooling

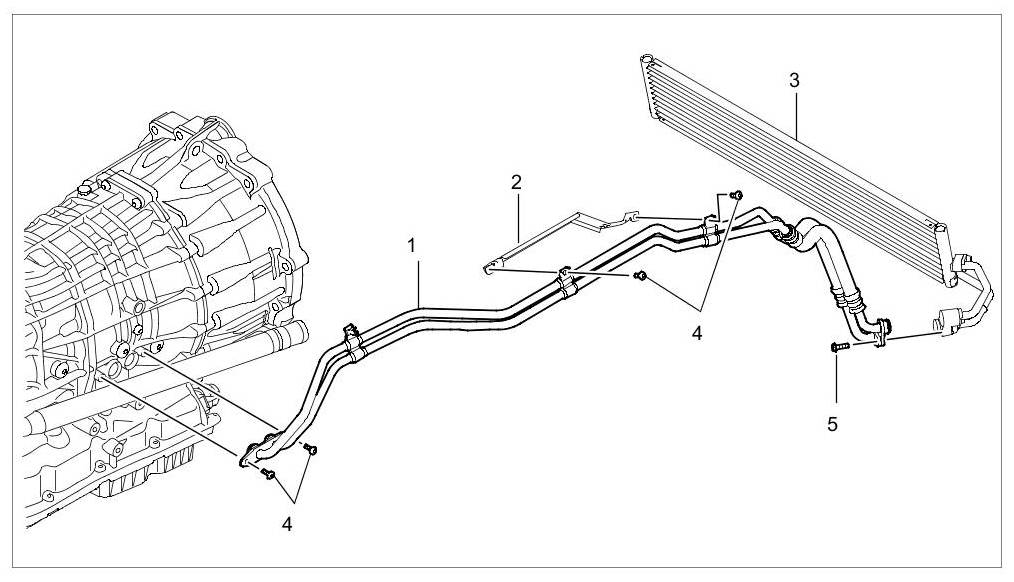

1. Unscrew fastening screws securing line for ATF cooling to transmission -4-.





ATF line

2. Unscrew fastening screws securing holder to engine -4-.





ATF line

3. Unscrew fastening screws securing line for ATF cooling to connection point -5-.
4. Remove line for ATF cooling.

Installing line for ATF cooling

1. Replace sealing rings on the ATF lines.

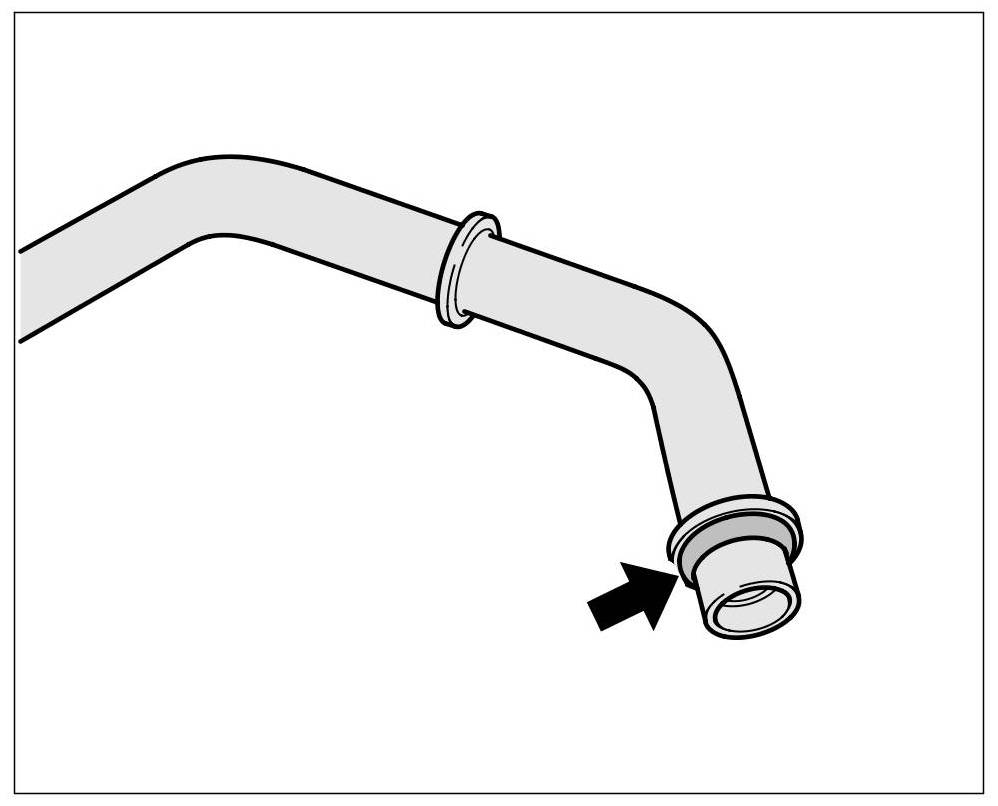

Sealing rings on ends of ATF lines

2. Install line for ATF cooling.
3. Screw in fastening screws securing line for ATF cooling to connection point -5-. => Tightening torque: 10 Nm (7.5 ftlb.)
4. Screw in fastening screws securing holder to engine -4-. => Tightening torque: 10 Nm (7.5 ftlb.)





ATF line

5. Screw in fastening screws securing line for ATF cooling to transmission -4-. => Tightening torque: 10 Nm (7.5 ftlb.)





ATF line

Subsequent work for line for ATF cooling

1. Install engine and transmission. -> 100119 Removing and installing engine - section on "Installing" 100119 Removing and installing engine
2. Check ATF. -> 370235 Checking and topping up ATF 370235 Checking and Topping Up ATF
