Auxilliary Air Conditioning System

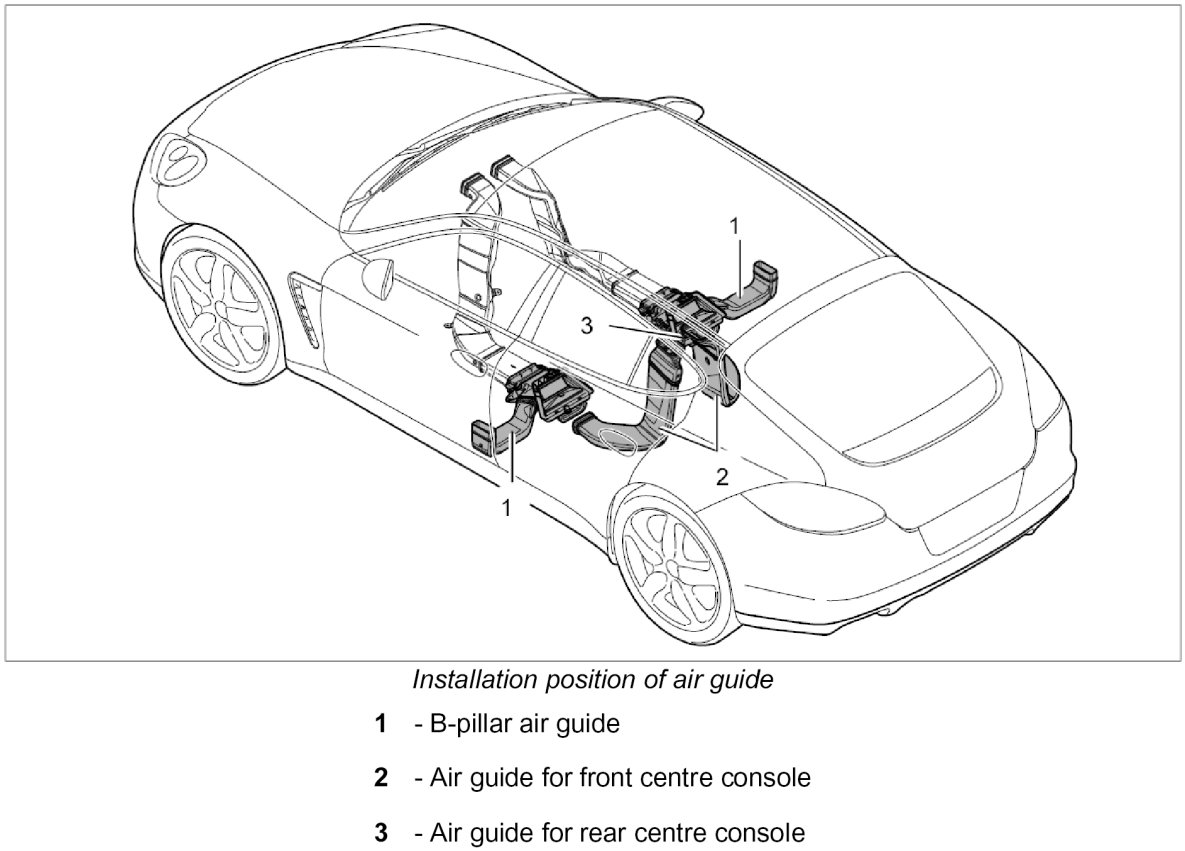

Removing And Installing Auxiliary Air-conditioning Air Guide
Technical values
Preliminary work
Preliminary work for removing B-pillar air guide
Remove air vent.
Preliminary work for removing air guide for front centre console
Remove front floor covering.
Preliminary work for removing air guide for rear centre console
Remove front floor covering.
Information
Component information
Removing auxiliary air-conditioning air guide
Removing B-pillar air guide

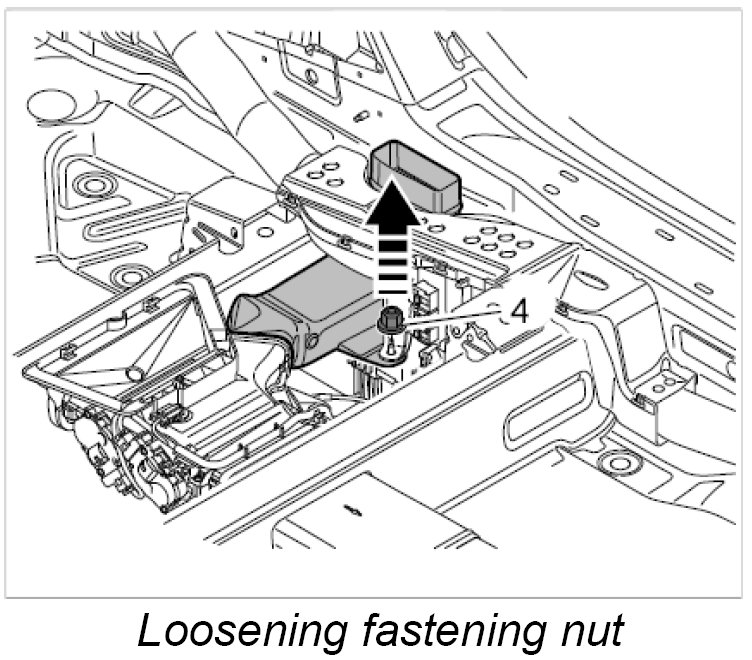

1. Unscrew fastening nut -4- on B-pillar air guide.
2. Disconnect cable duct holder from the stud.
3. Disconnect air guide from the air vent and lift it up and off.
Removing air guide for front centre console

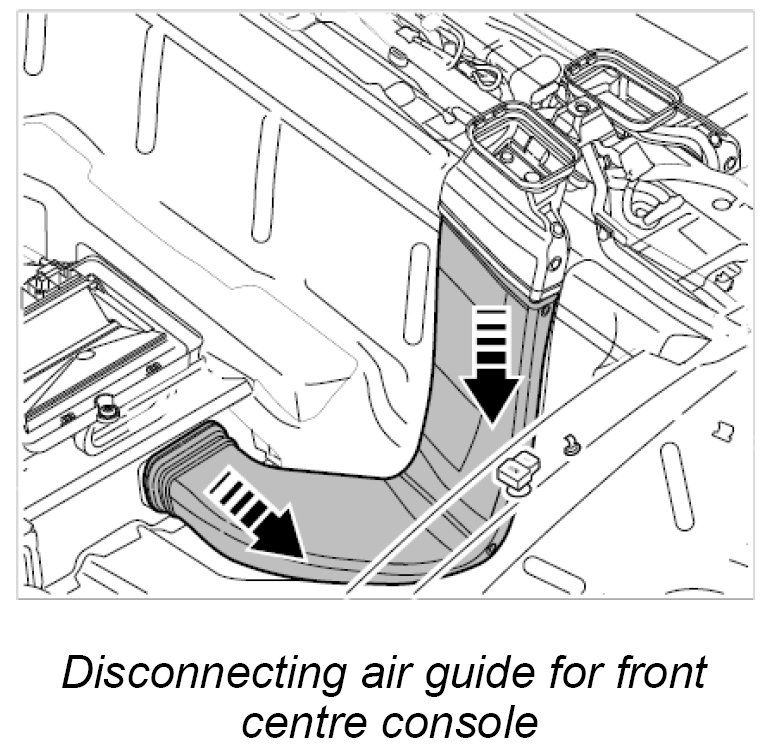

1. Disconnect air guide for front centre console from the air vent.
2. Disconnect air guide from the air guide for the rear centre console.
3. Remove air guide for centre console towards the rear.
Removing air guide for rear centre console

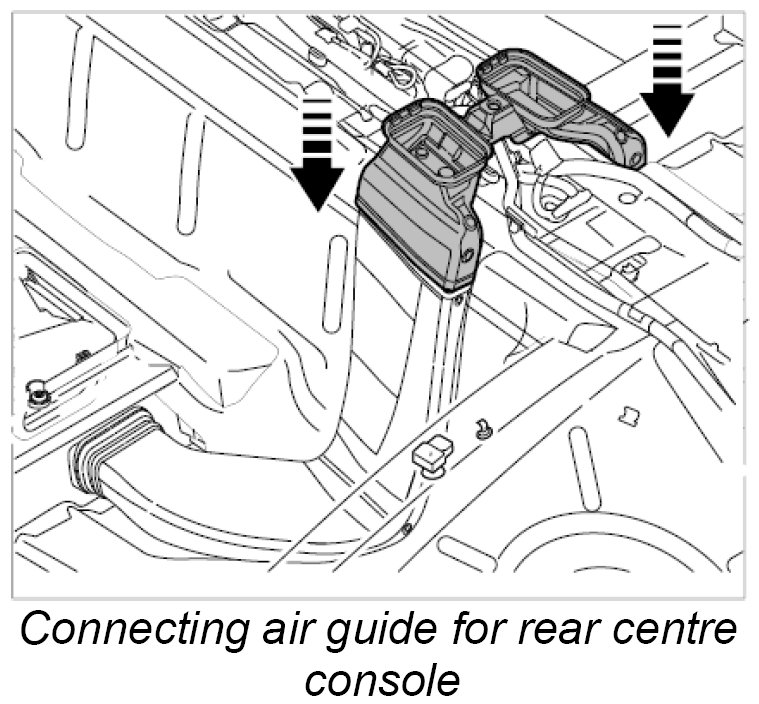

1. Disconnect air guide for rear centre console from the air guide for the front centre console.
2. Lift air guide for rear centre console up and remove it.
Installing auxiliary air-conditioning air guide
Installing B-pillar air guide
1. Insert B-pillar air guide into the air vent.
2. Attach cable duct holder to the stud.

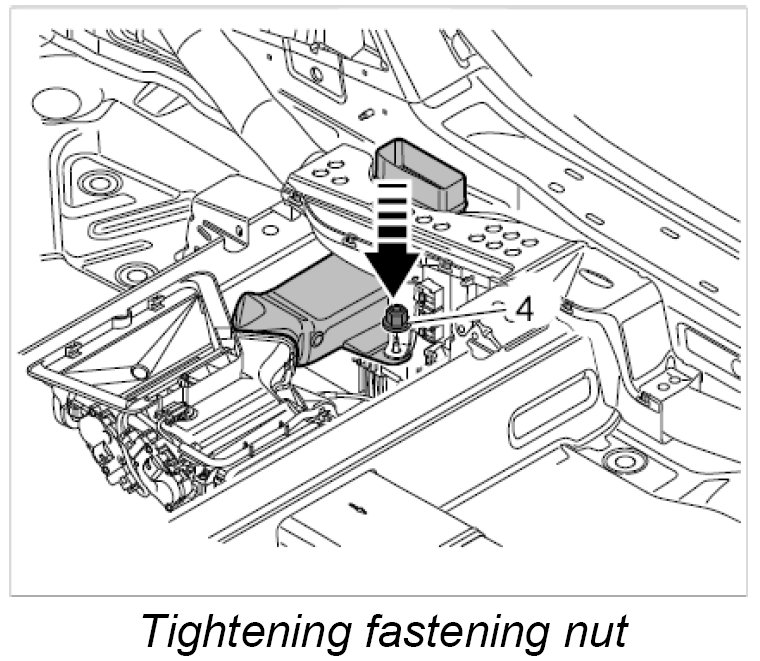

3. Fit and tighten the fastening nut -4-.
- Tightening torque: 3.5 Nm (2 ftlb.)
Installing air guide for front centre console

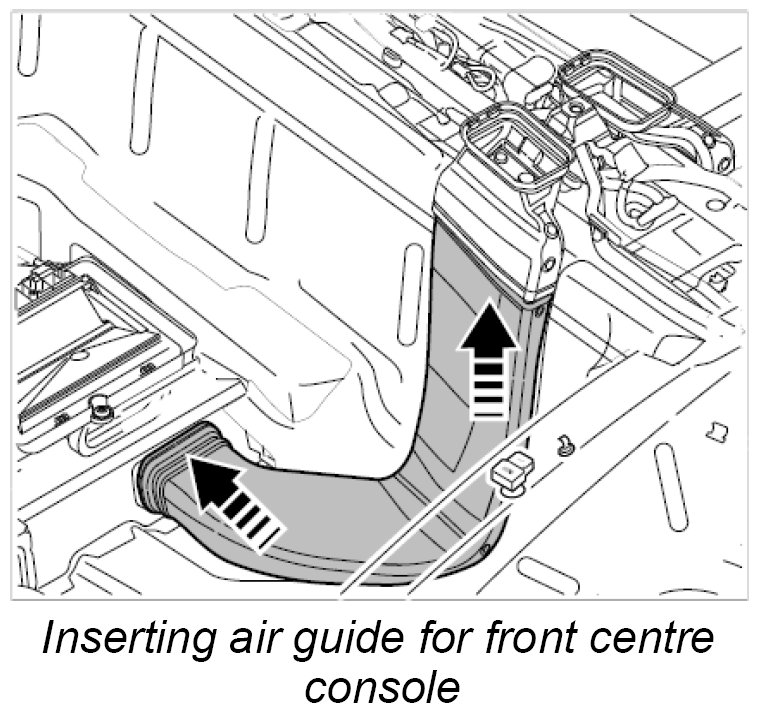

1. Insert air guide for front centre console into the air guide for the rear centre console.
2. Connect air guide for front centre console to the air vent.
Installing air guide for rear centre console
1. Position air guide for rear centre console.
2. Connect air guide for rear centre console to the air guides for the front centre console.
Subsequent work
Subsequent work for installing B-pillar air guide
Install air vent.
Subsequent work for installing air guide for front centre console
Install front floor covering.
Install front floor covering.
Install front floor covering.
