Washer Fluid Level Indicator: Service and Repair

Removing And Installing Sensor For Fluid Level Indicator

Preliminary work

1. Turn right front wheel to the right.

2. Remove rear part of front right wheel housing liner.

Removing sensor for fluid level indicator

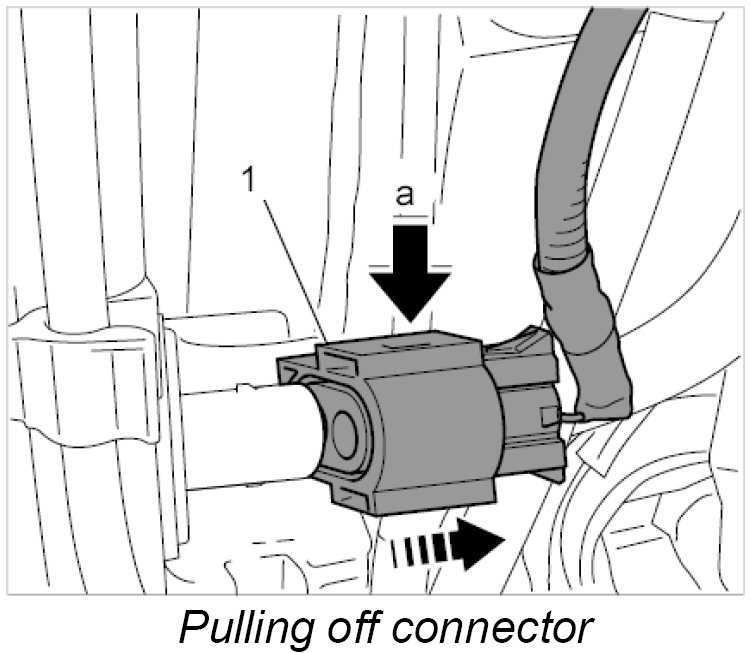

1. Release electric plug connection for sensor -1- and pull it off -a-.

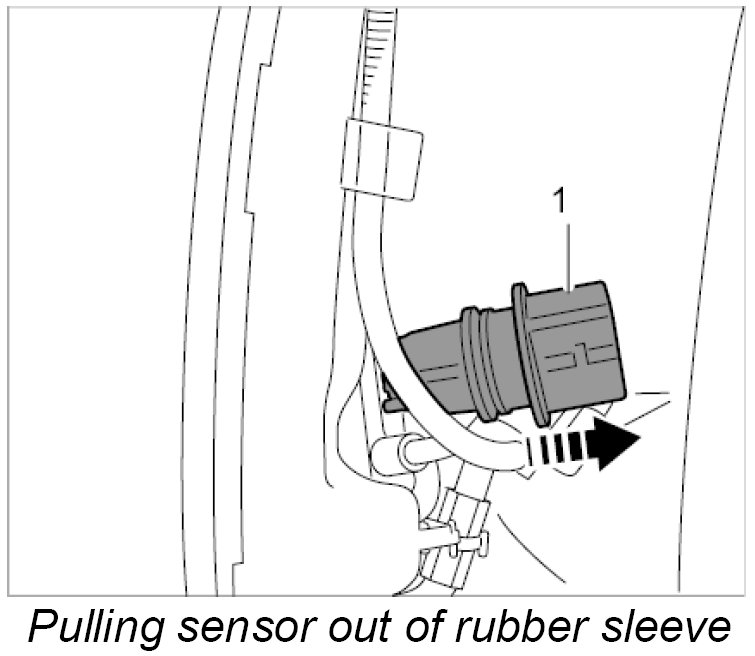

2. Pull the sensor -1- out of the rubber sleeve by turning it back and forward slightly.







Installing sensor for fluid level indicator

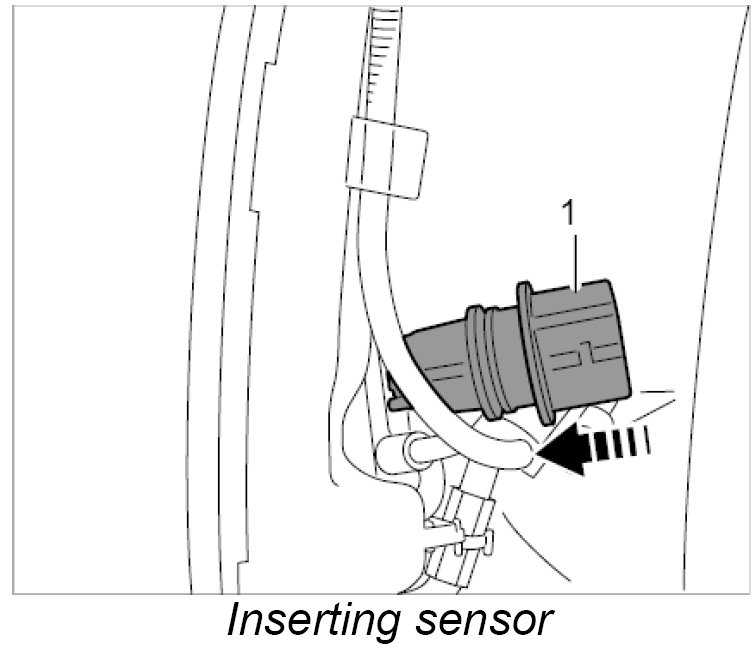

1. Insert the sensor -1- into the rubber sleeve by turning it back and forward slightly.

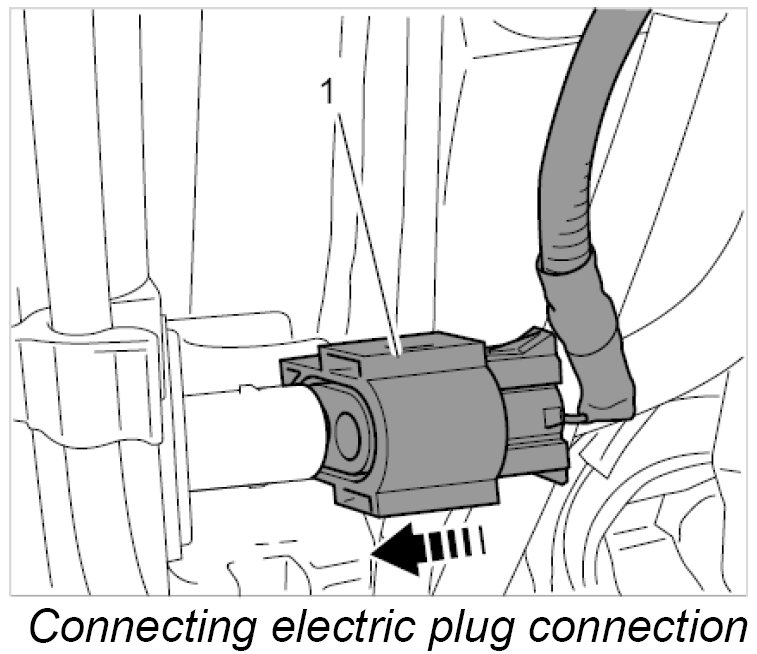

2. Plug in electric plug connection -1- until it locks with an audible click.







Subsequent work

1. Install rear part of front right wheel housing liner.
