Headlamp Washer Spray Nozzle: Service and Repair

WM 927219 Removing and installing spray nozzle for headlight cleaning system

Preliminary work

1. Remove front part of front wheel housing liner. -> 505619 Removing and installing front wheel housing liner - section on "Removing" Removal and Replacement

Removing spray nozzle for headlight cleaning system

1. Pull off hose on spray nozzle.





Pulling off hose

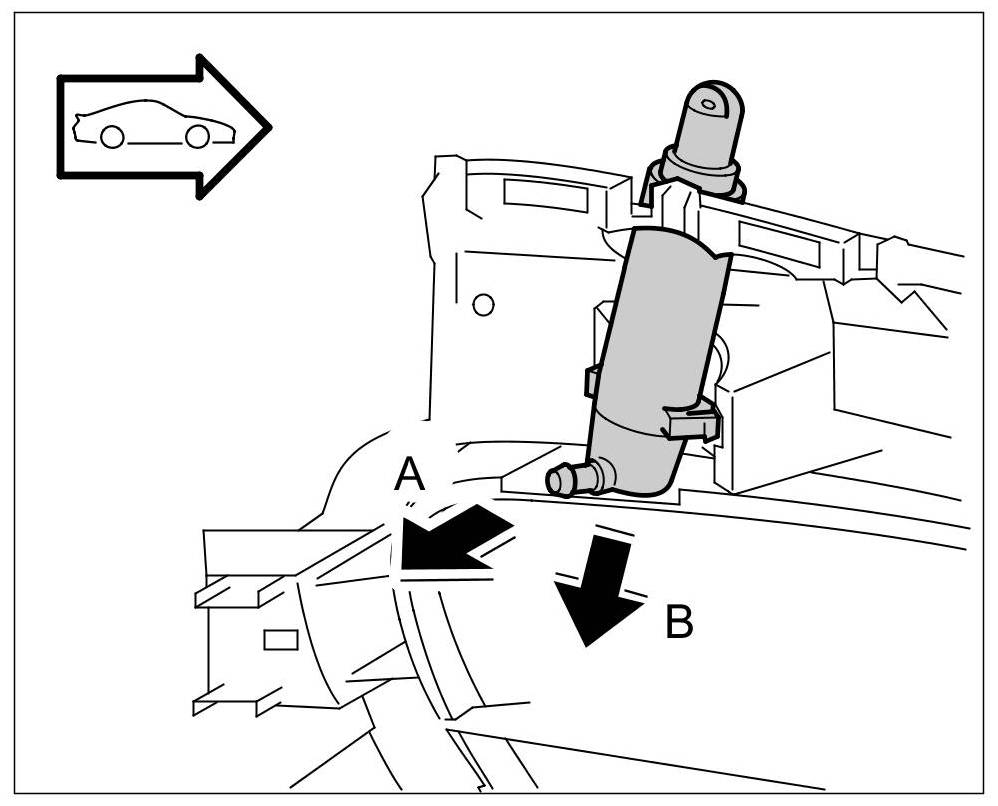

2. Unclip spray nozzle from the retaining frame -A- and remove by pulling downwards -B-.





Removing spray nozzle

Installing spray nozzle for headlight cleaning system

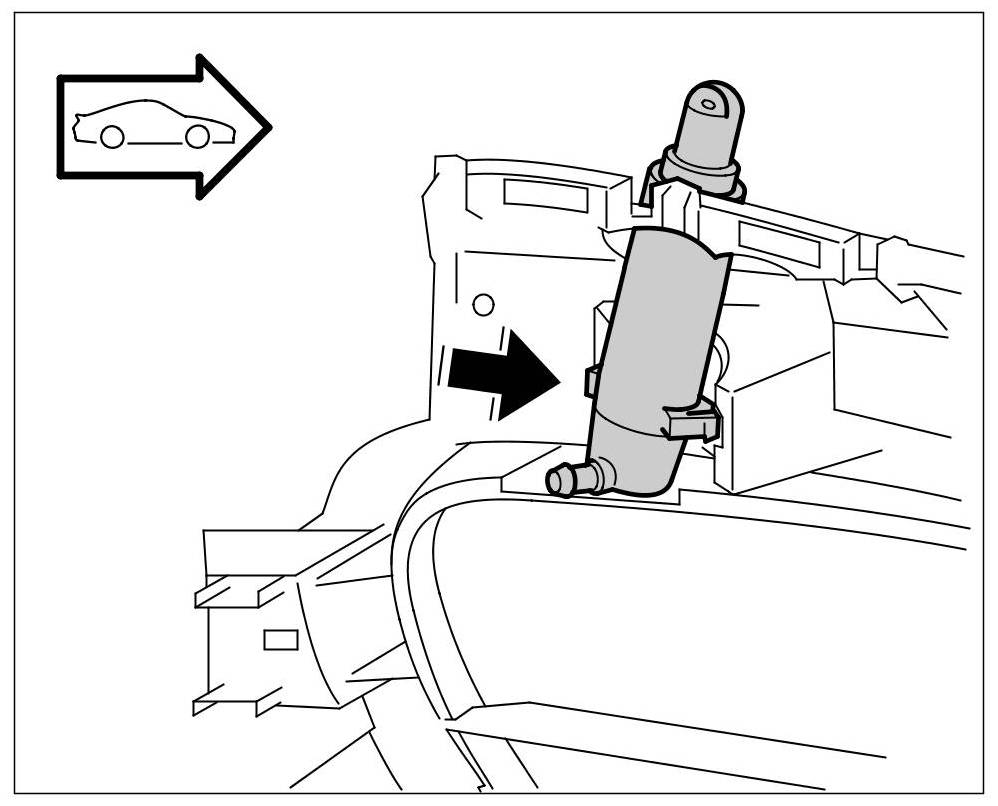

1. Fit spray nozzle towards the top and clip it into the retaining frame.





Installing spray nozzle

2. Slide hose onto the spray nozzle.





Sliding on hose

Subsequent work

1. Install front part of front wheel housing liner. -> 505619 Removing and installing front wheel housing liner - section on "Installing" Removal and Replacement
