Differential Mount: Service and Repair

WM 396155 Replacing rubber mounting for final drive

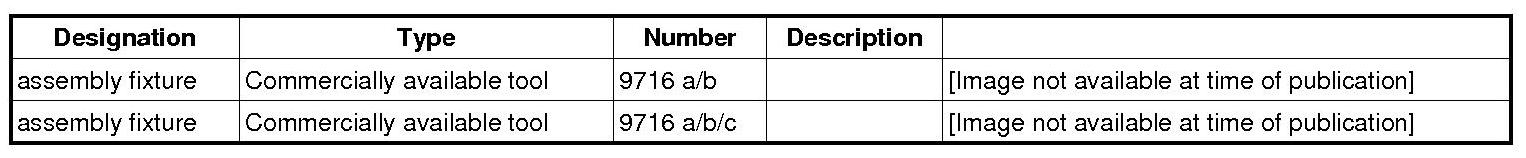

Tools





Preliminary work

Preliminary work for rubber mounting

1. Remove rear final drive. -> 390119 Removing and installing rear final drive - section on "Removing" 390119 Removing and installing rear final drive

Removing rubber mounting for rear final drive

Removing rubber mounting for final drive, drive side

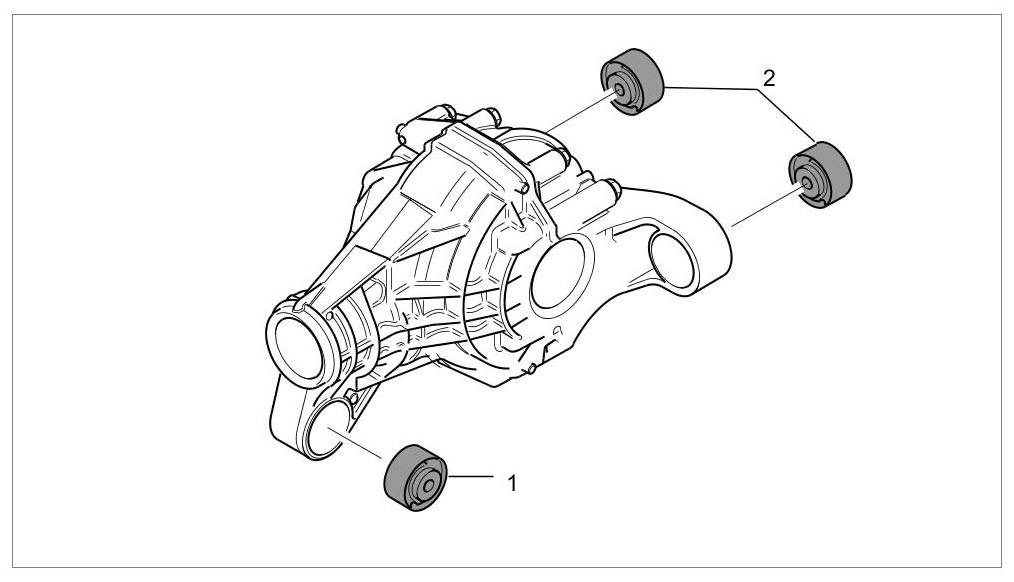

Rubber mounting, drive side -1-

1. Mark rubber mounting with respect to transmission housing in installation position -arrow-.

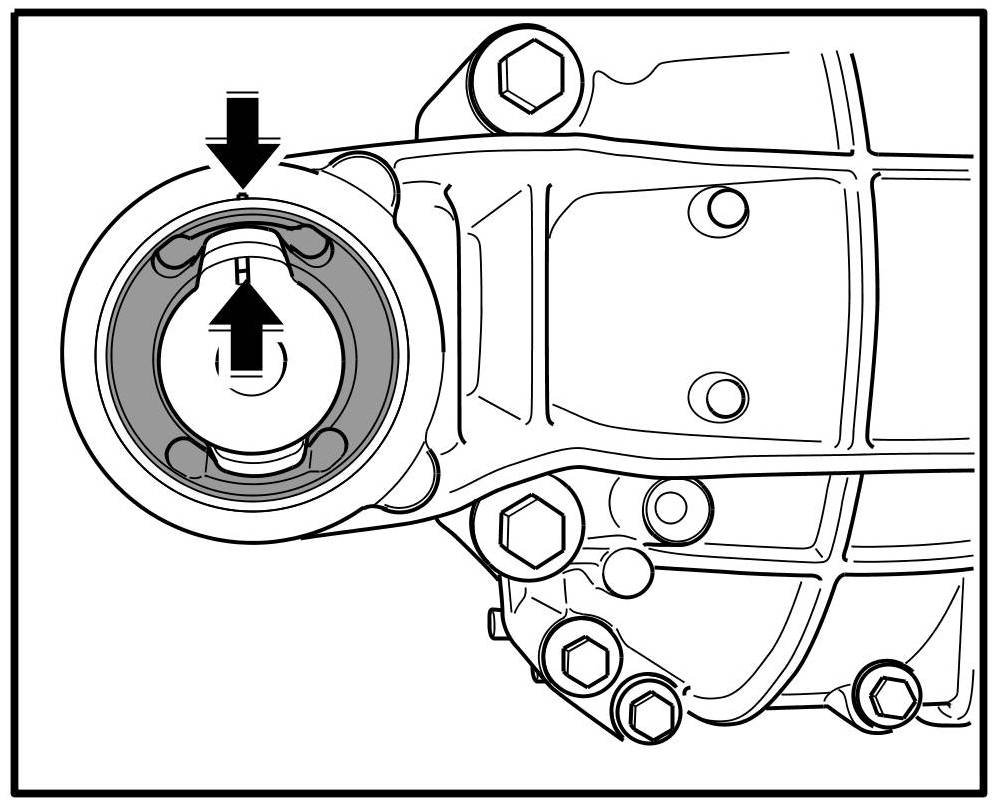

Marking rubber mounting with respect to housing

2. Position special tool assembly fixture 9716 a/b on rubber mounting => Removal on drive side.

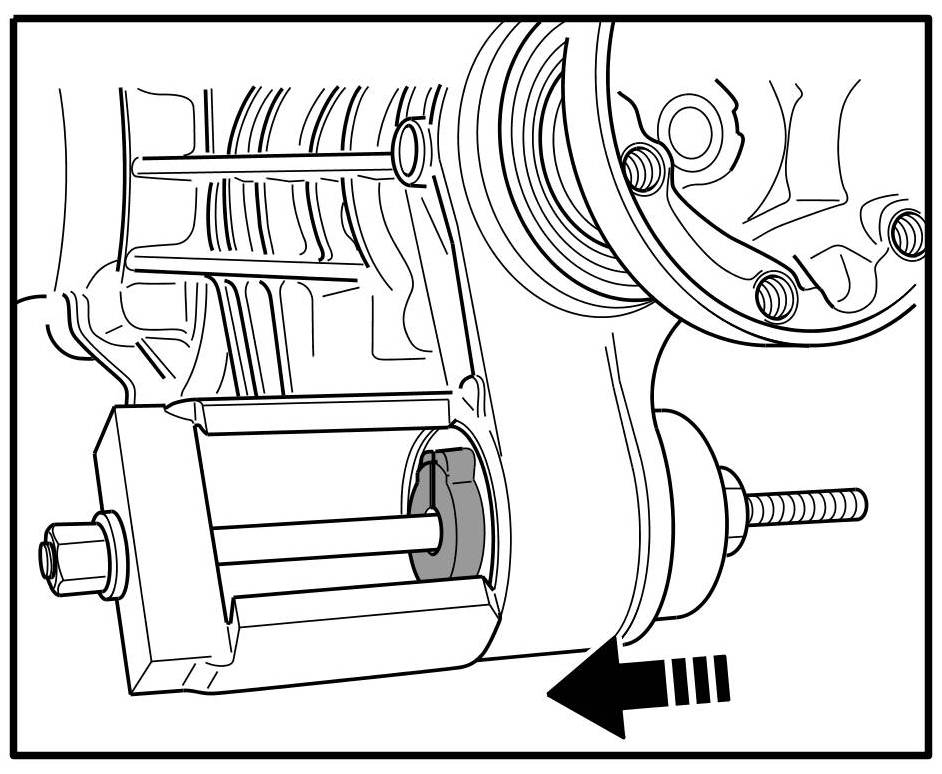

Removal on drive side

3. Remove rubber mounting in -direction of arrow-.

Removing rubber mounting for final drive, output side





Rubber mounting for output side -2-

1. Mark rubber mounting with respect to transmission housing in installation position -arrow-.





Marking rubber mounting

2. Position special tool assembly fixture 9716 a/b on rubber mounting => Removing rubber mounting.

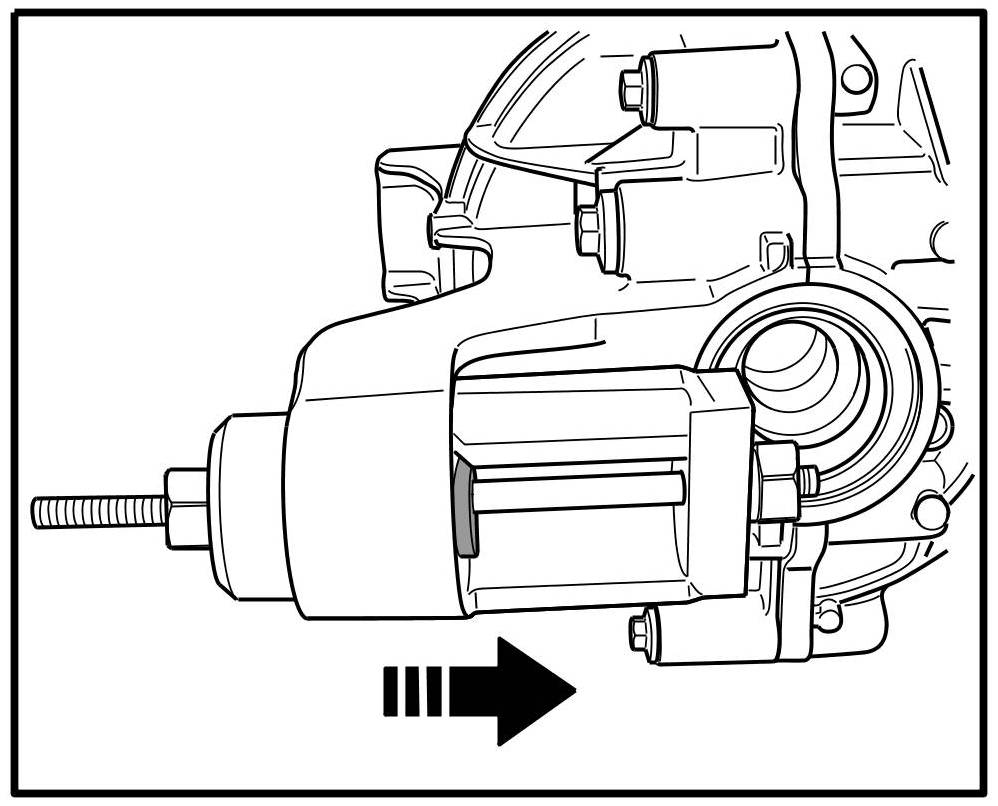

Removing rubber mounting

3. Remove rubber mounting in -direction of arrow-.

Installing rubber mounting for rear final drive

Installing rubber mounting for final drive, output side





Rubber mounting for output side -2-

Information

Noises in drive line

- Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing

- Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

1. Position special tool assembly fixture 9716 a/b/c on the rubber mounting and align the markings.

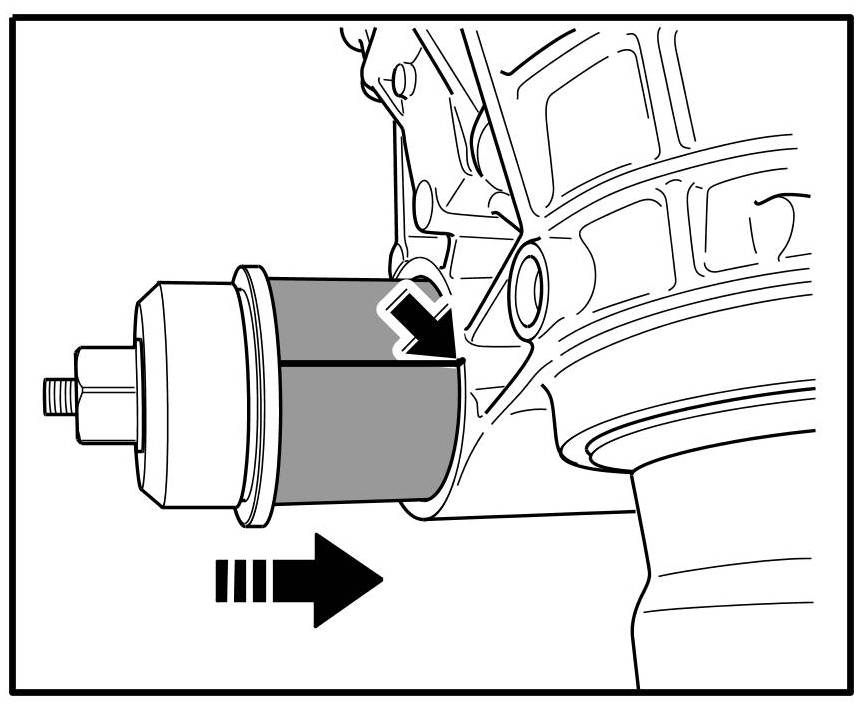

Installing rubber mounting on drive side

2. Press rubber mounting in flush => Pressing in rubber mounting.

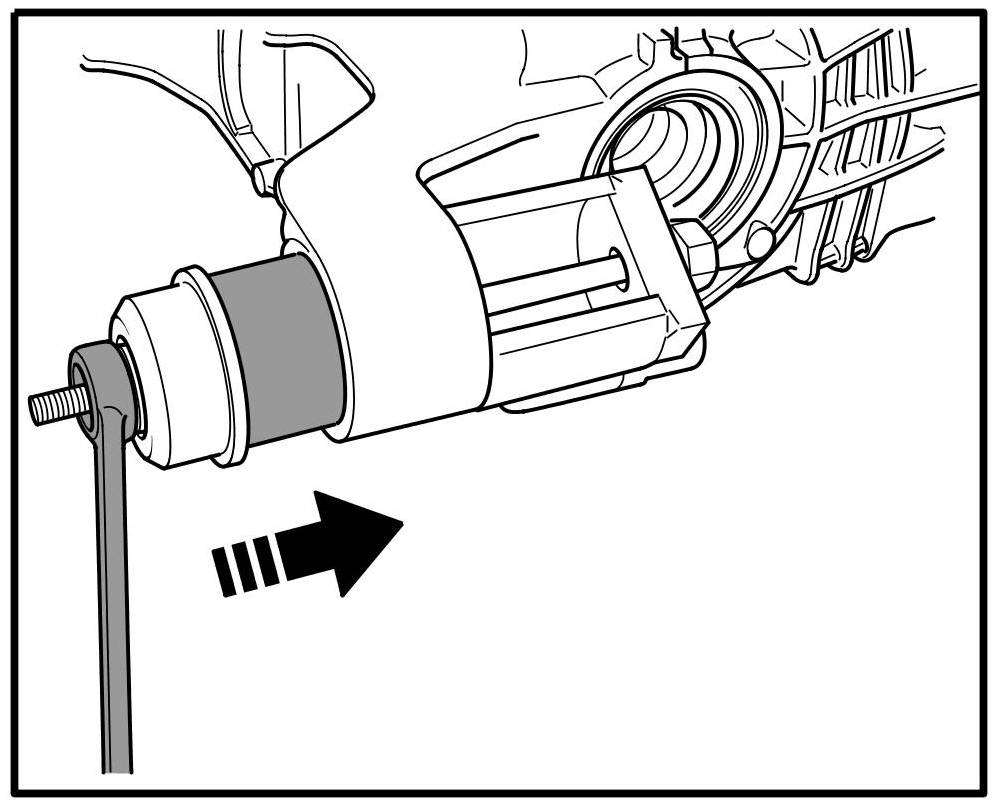

Pressing in rubber mounting

Information

Noises in drive line

- Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing

- Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

3. Install output flange.

Installing rubber mounting for final drive, drive side





Rubber mounting, drive side -1-

Information

Noises in drive line

- Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing

- Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

1. Position special tool assembly fixture 9716 a/b/c on the rubber mounting => Installing rubber mounting on drive side and align the markings.





Installing rubber mounting on drive side

Information

Noises in drive line

- Installation position of rubber mounting bulge is incorrect Rubber mounting bulge must be installed vertically into housing

- Installation position of mount in housing is incorrect Pay attention to installation dimension of mount to housing

2. Press rubber mounting in flush in -direction of arrow-.

Subsequent work

Subsequent work for rubber mounting for final drive

1. Install rear final drive. -> 390119 Removing and installing rear final drive - section on "Installing" 390119 Removing and installing rear final drive
