Clutch Disc: Testing and Inspection

WM 305601 Checking clutch plate for wear

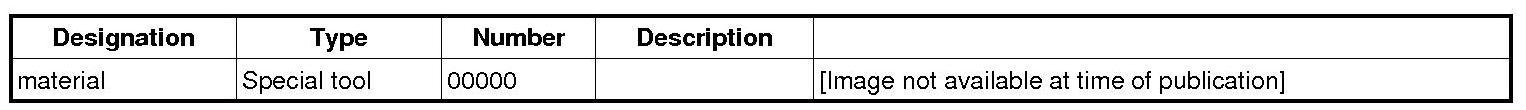

Tools





Preliminary work

Preliminary work for clutch

1. Remove manual transmission. -> 343519 Removing and installing transmission - section on "removing" 343519 Removing and installing transmission

Checking clutch plate for wear

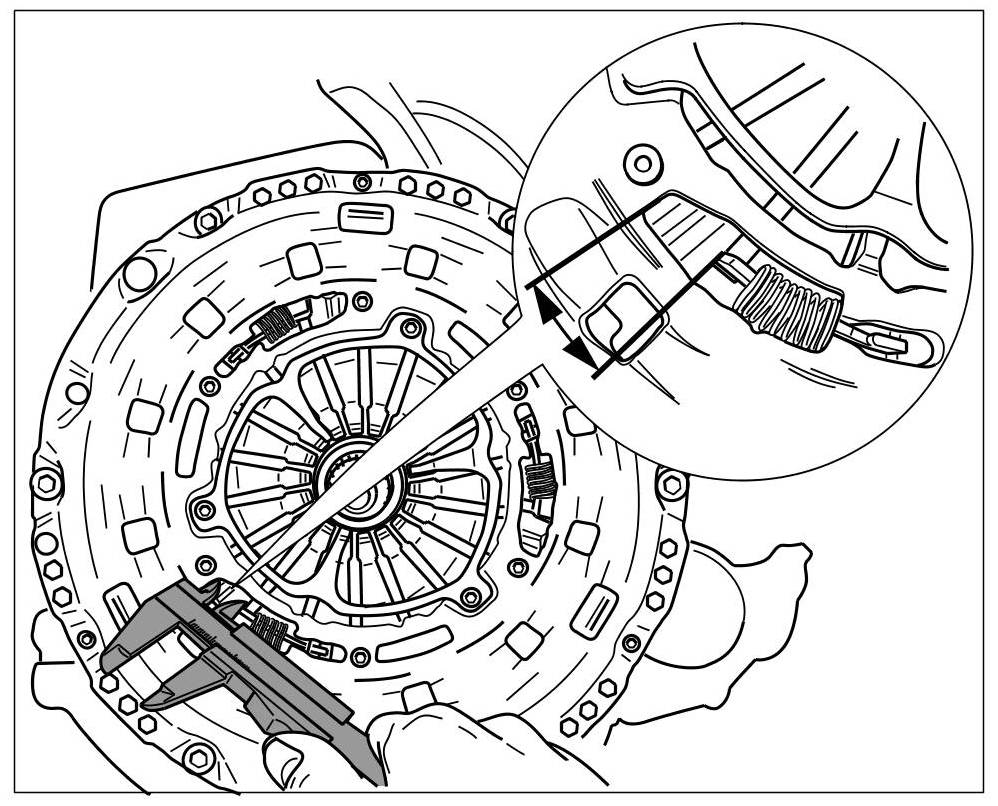

1. Measure clutch wear at one of the three clutch adjusters. To do this, measure using material 00000 between adjuster and clutch pressure plate -arrow, inset-.





Measuring clutch wear

- Measurement when new: - 16 mm.
- Replace the clutch if the measured value is less than or equal to 8 mm.

Clutch is OK:
2. Install transmission. -> 343519 Removing and installing transmission - section on "Installing" 343519 Removing and installing transmission

Clutch is defective:
3. Replace clutch. -> 305019 Removing and installing clutch Service and Repair
