Rear Knuckle Alignment Link: Service and Repair

Removing and installing rear tie rod (toe control arm)

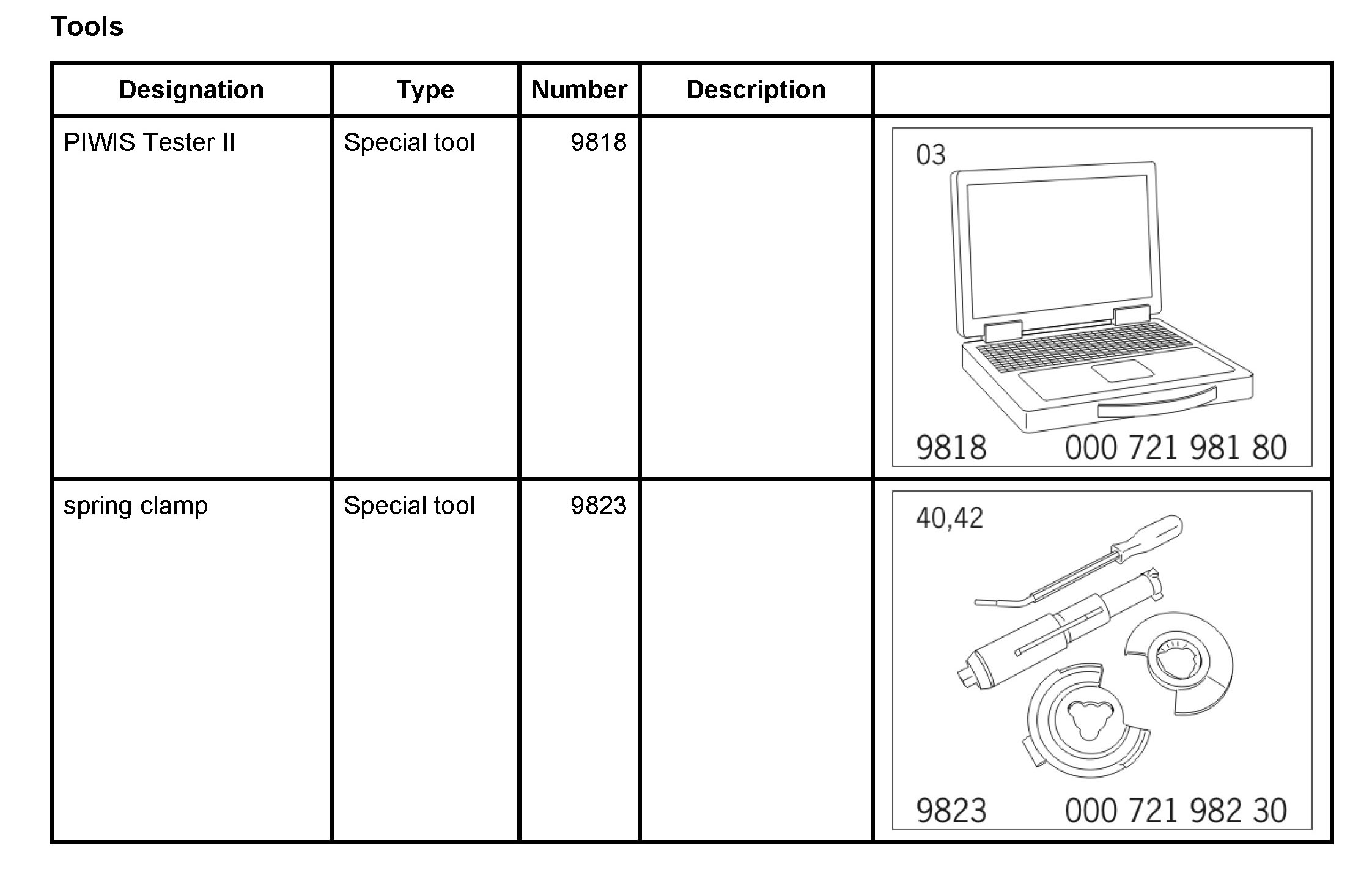

Preliminary work

1. Raise the vehicle.
2. Remove wheel.

Removing rear tie rod

Removing tie rod

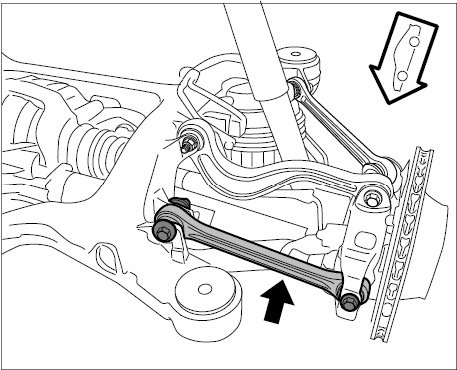

Installation position of tie rod (rear axle removed)

1. Mark the position of the toe eccentric for re-installation.

Left tie rod

2. Release tie rod at the chassis subframe (eccentric screw) and at the wheel carrier. Remove tie rod.

Right tie rod

3. Due to space restrictions, the top front control arm, on the outside of the wheel carrier, must be removed in order to access the tie rod on the right side of the vehicle,.
4. Release tie rod at the chassis subframe (eccentric screw) and at the wheel carrier. Remove tie rod.

Installing rear tie rod

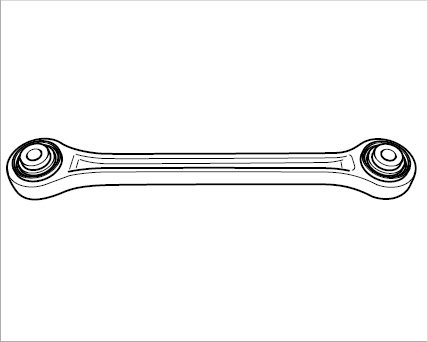

Installing tie rod

WARNING
Wheel bearing housing raised incorrectly
* Risk of squashing
* Risk of damage to components

-> Wear personal protective gear.
-> Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Dimension X - center of wheel to lower edge of wing (rear axle shown)

* The entire threaded parts of the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on the wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -X-, from lower edge of wing to center of axle corresponds to vehicle position. Always observe the following points.

Steel suspension
* The vehicle position is reached at the rear axle by pre-tensioning the steel spring using spring clamp 9823 to the dimension -X-.

Air suspension
* Vehicle position can be obtained on the rear axle by using PIWIS Tester II 9818 to bleed the relevant air spring and carefully raise the relevant wheel bearing housing until dimension -X- is reached.

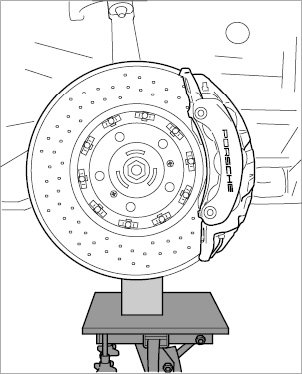

Raising wheel carrier (air suspension), front axle shown with brake disc and caliper fitted

* Use an intermediate layer (hard rubber)! Do not damage the brake cover plate.
* Screws and nuts are Geomet-coated and must not be greased.
* Grease the toothing of the drive shaft slightly with aluminum paste Optimoly TA.
* Drive shafts must not be left hanging from the joint stop! Tie up.
* Use new screws and lock nuts.
* Observe correct tightening torques and torque angles.

Installation is performed in reverse order.

1. Replace lock nuts. Observe correct tightening torques.

Subsequent work

1. Fit wheel.
2. Align the vehicle.
