Front Suspension
Replacing bearing for trailing arm
Preliminary work
Preliminary work for replacing trailing-arm bearings
1. Remove lower trailing arm.
Replacing bearing
Replacing bearing for lower trailing arm
WARNING
Mechanical, hydraulic or pneumatic press
* Risk of squashing
-> Read specific safety information for the press.
-> Check that the press is working perfectly before use, particularly the safety components.
WARNING
Wheel bearing housing raised incorrectly
* Risk of squashing
* Risk of damage to components
-> Wear personal protective gear.
-> Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
Information
* The pictures shown in this document may differ from the original.
* However, this does not affect the validity and relevance of the pictures.

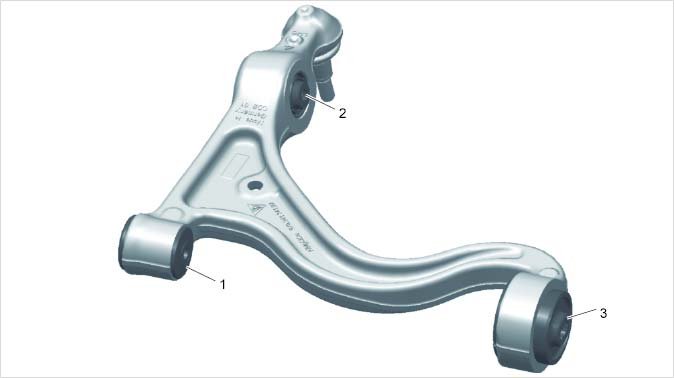

Trailing arm

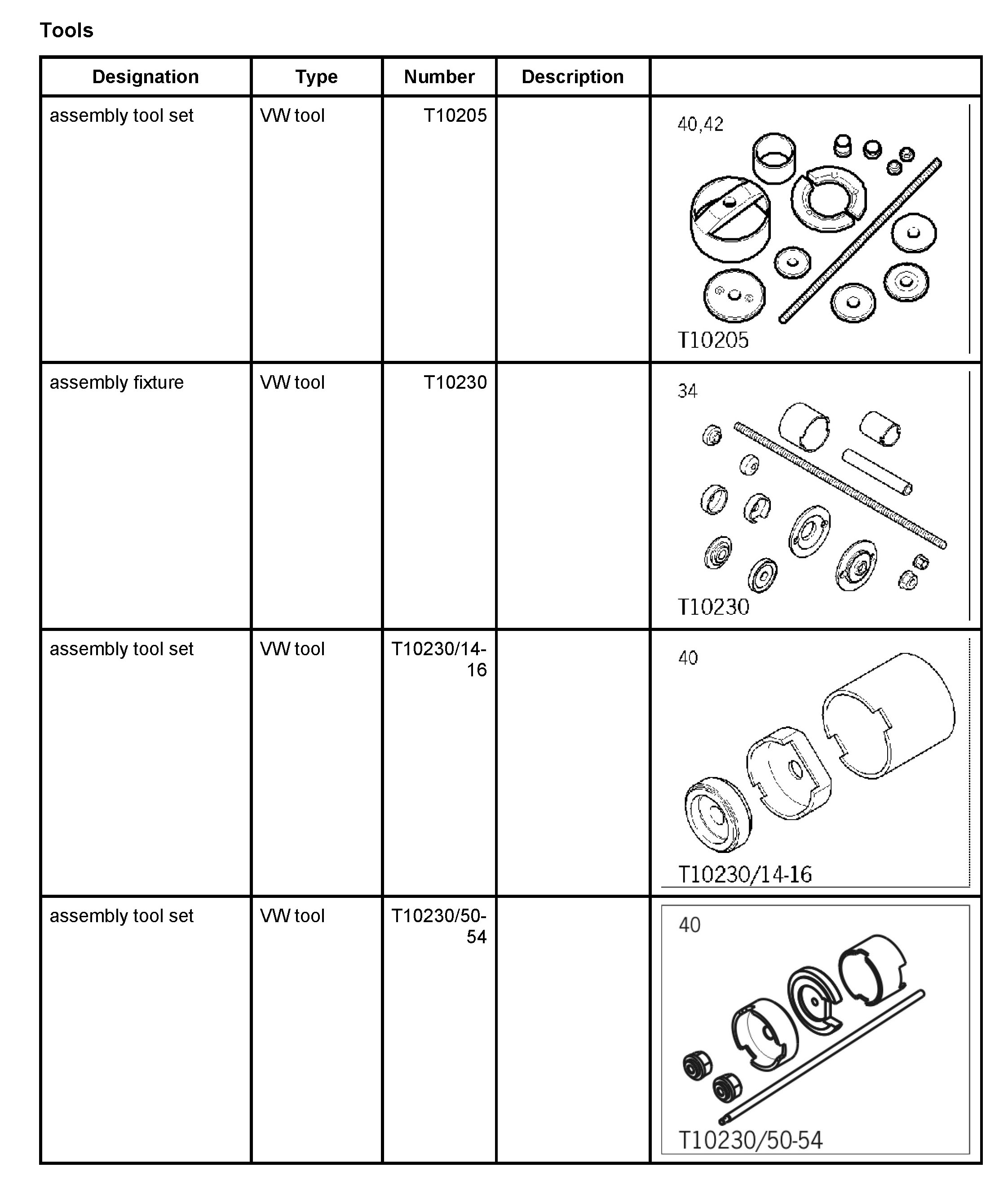

1. The pressure pieces and the hollow plunger-type hydraulic press VAS 6178 are used for removal. Screw a suitable attachment from assembly tool set T10205 into the hydraulic press. Screw a suitable assembly fixture T10230 onto the threaded rod from assembly tool set T10230/14-16 and assembly tool set T10230/50-54 and position the required attachment when pressing bearings out and in.

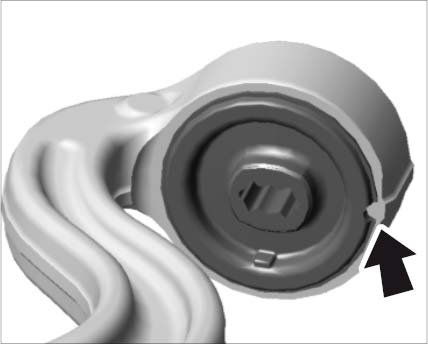

2. Before pressing out the bearing -3-, mark the installation position using a suitable marker -arrow-.
Mark the trailing arm -arrow- for this purpose in the cut-out for the bearing using a suitable marker.
Installation position of bearing 3
The following pressure pieces and nuts are required for pressing out bearing -3-:
Pressing out:
* T10230/15
* T10230/51
* T10230/52
* T10230/53
* T10230/54

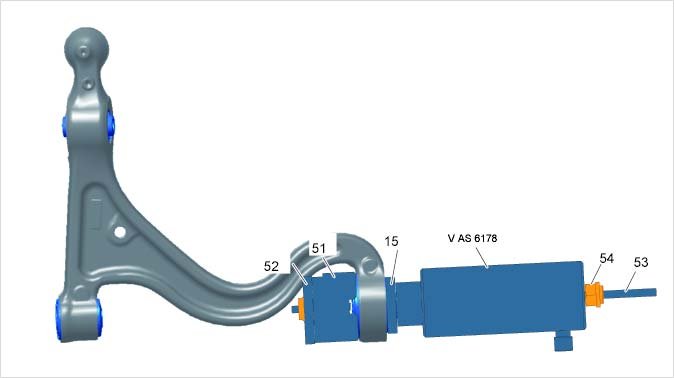

Arrangement of tools for pressing out bearing 3
When pressing in the bearing -3- pay close attention to the installation position marking -arrow-. The cut-out for the bearing must be positioned horizontally in the trailing arm.
Installation position of bearing 3
The following pressure pieces and nuts are required for pressing in bearing -3-:
Pressing in:
* T10230/2
* T10230/50
* T10230/52
* T10230/53
* T10230/54

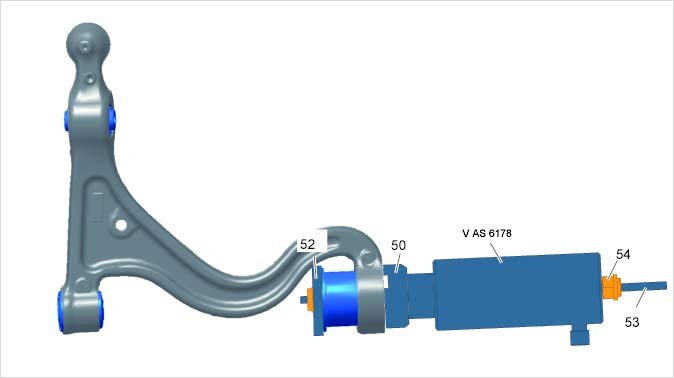

Arrangement of tools for pressing in bearing 3
3. The following pressure pieces and nuts are required for bearing -2-:
Pressing out:

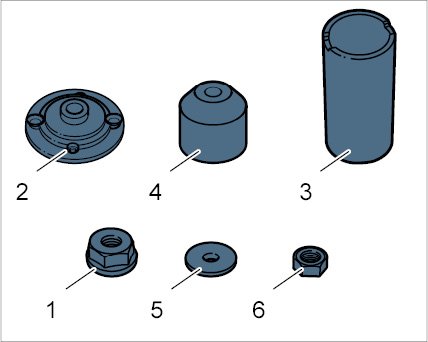

Pressure pieces for bearing 2 - pressing out
* T10230/2 - -1-
* T10230/5 - -3-
* T10230/7 - -2-
* T 10230/13 - -2-
* Washer - -5-
* Nut - -6-
Information
When using the pressure pieces, the direction arrow shows the direction for pressing the rubber-metal mounts in or out on the trailing arm.

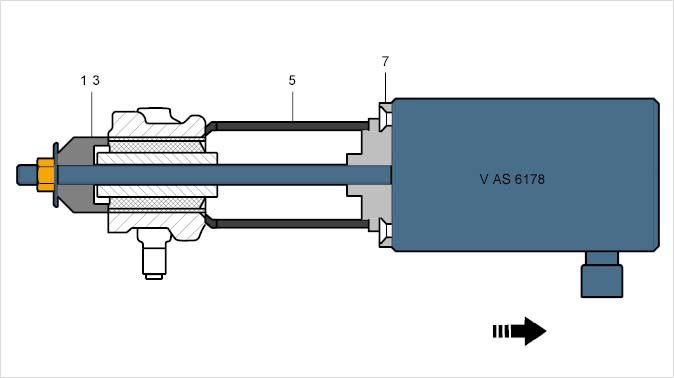

Arrangement of tools for pressing out bearing 2
Pressing in:

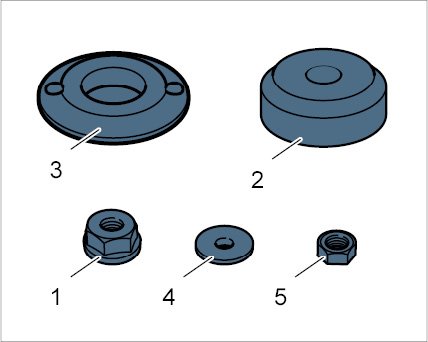

Pressure pieces for bearing 2 - pressing in
* T10230/2 - -1-
* T10230/10 - -2-
* T10230/12 - -3-
* Washer - -4-
* Nut - -5-
Information
When using the pressure pieces, the direction arrow shows the direction for pressing the rubber-metal mounts in or out on the trailing arm.

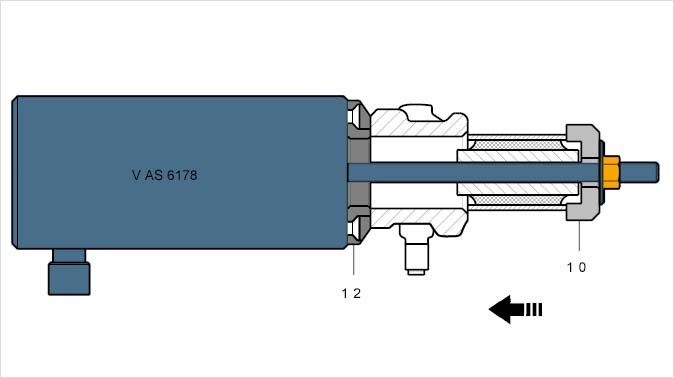

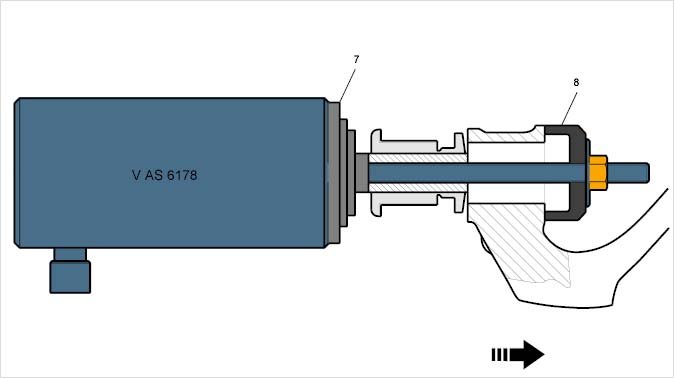

Arrangement of tools for pressing in bearing 2

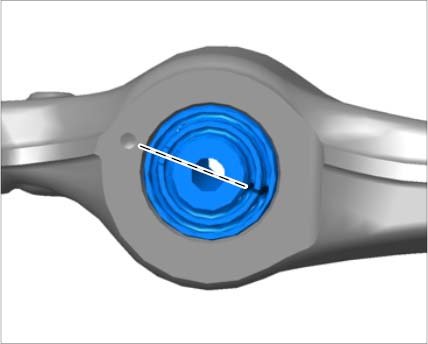

The slit for the bearing must be positioned opposite the recess.
Installation position of bearing 2 (spring-strut mount)
4. The following pressure pieces and nuts are required for bearing -1-:
Pressing out:

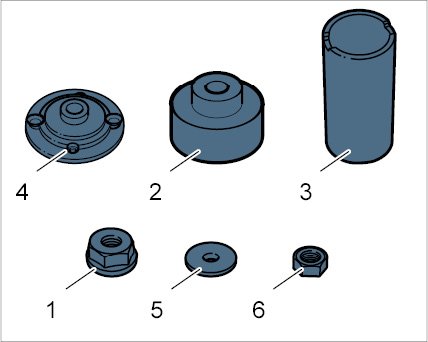

Pressure pieces for pressing out bearing 1
* T10230/2 - -1-
* T10230/4 - -2-
* T 10230/5 - -3-
* T10230/7 - -4-
* Washer - -5-
* Nut - -6-
Information
When using the pressure pieces, the direction arrow shows the direction for pressing the rubber-metal mounts in or out on the trailing arm.

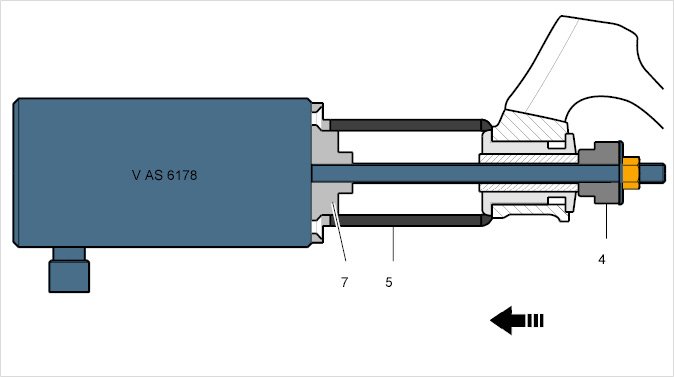

Arrangement of tools for pressing out bearing 1
Pressing in:
Pressure pieces for pressing in bearing 1
* T10230/2 - -1-
* T10230/7 - -2-
* T10230/8 - -3-
* Washer - -4-
* Nut - -5-
Information
When using the pressure pieces, the direction arrow shows the direction for pressing the rubber-metal mounts in or out on the trailing arm.
Arrangement of tools for pressing in bearing 1
Subsequent work
Information

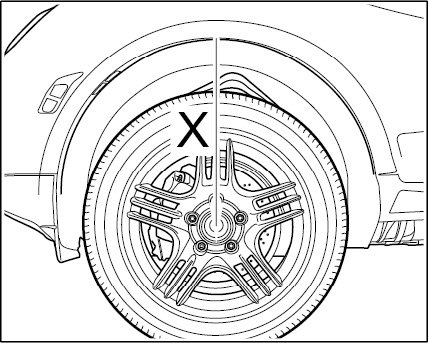

Dimension -X-: lower edge of wing to center of axle (shown as an example)
* All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X- from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment.
* Visually inspect all parts.
* Replace self-locking nuts.
* Replace all expansion screws (screws fitted using torque angle tightening procedure).
* Use correct tightening torques and torque angle.
1. Install lower trailing arm.
