Dome Lamp Bulb: Service and Repair

Replacing light bulb for interior light

Preliminary work

Preliminary work for replacing light bulb for interior light

1. Remove roof console.

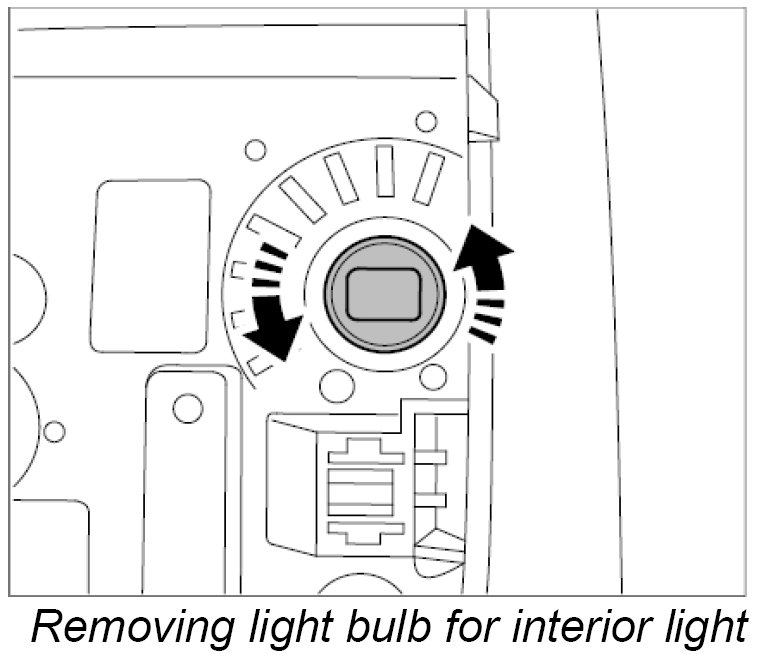

Removing light bulb for interior light

1. Release the light bulb holder by turning it 90° and remove it.

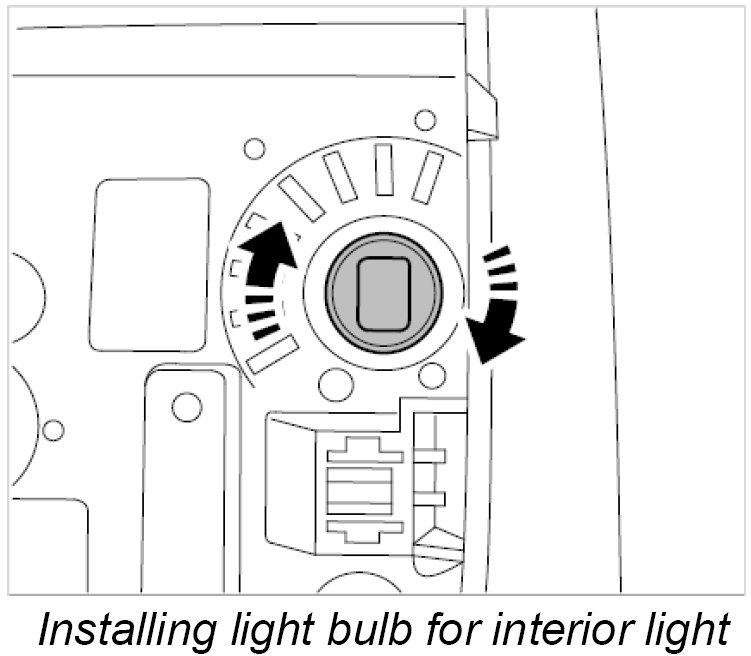

Installing light bulb for interior light

1. Fit the light bulb holder and lock it by turning it 90°.







Subsequent work

Subsequent work for replacing light bulb for interior light

1. Install roof console.
